ECO Complete Distillation Kit for Beginners (VERSATILE)

🔥 ECO Complete Distillation Kit for Beginners (VERSATILE)

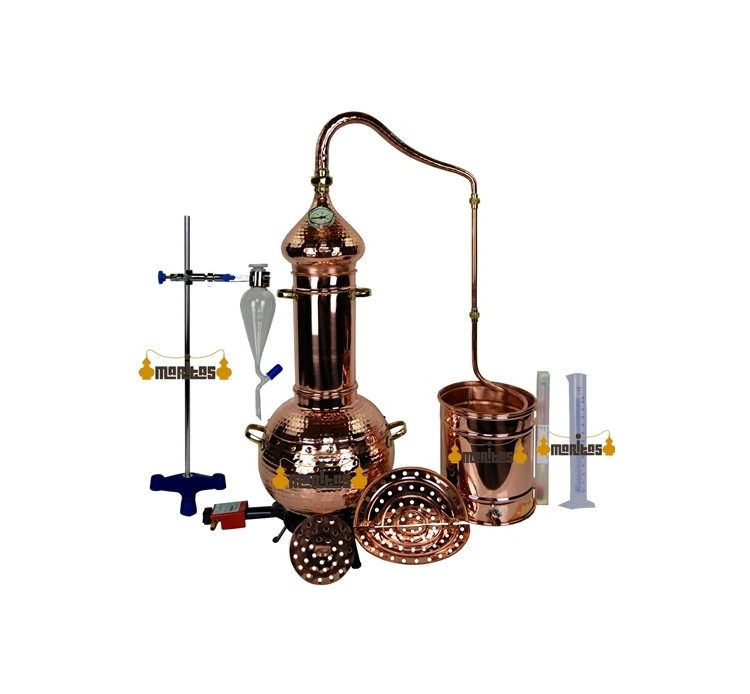

The ECO Complete Distillation Kit for Beginners is a versatile and complete setup designed for those who want to get started with both alcohol and aromatic distillation using the same equipment.

The ECO model is our economical option and is particularly suitable for occasional or sporadic use at home. Its configuration allows the same equipment to be used for alcohol distillation as well as for the aromatic distillation of plants and flowers.

🏺 10 L Multifunction Still

The kit includes a 10 L Multifunction Still suitable for working with alcoholic ferments as well as plants and flowers to produce hydrosols and essential oils.

This versatile configuration allows the same equipment to be used for different types of distillation, adapting the process to the raw material being processed.

🥃 Alcohol Distillation

For alcohol distillation, the boiler has a capacity of 10 litres and provides an approximate yield of 10–15% when working with a ferment at 10° alcohol.

This allows approximately 1–2 litres of product per distillation to be obtained.

🌿 Aromatic Distillation of Plants and Flowers

For aromatic distillation, the boiler has a capacity of 10 litres, while the column can hold up to 400 g of plants or flowers per refill.

Once the plant material has released most of its essential oil, the column can be emptied and refilled during the same distillation.

🌸 This allows 3–5 column refills per distillation, making it possible to process approximately 400–1500 g of plants or flowers per distillation.

With this process, the approximate output is:

💧 Hydrosol: approximately 8–9 L per distillation.

🌸 Pure essential oil: approximately 15–20 ml per distillation.

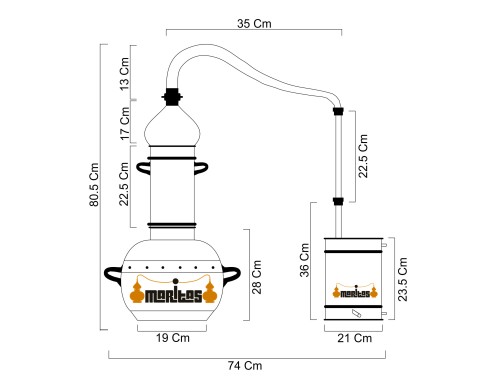

🔨 Still Construction

The Multifunction Still is made from 100% copper using 0.9 mm thick hammered copper sheet.

🔶 Material: 100% copper

📏 Copper sheet: 0.9 mm thick

🔨 Finish: hammered copper

✨ Handles: polished brass

✨ Nuts: polished brass

🔩 Construction: riveted joints

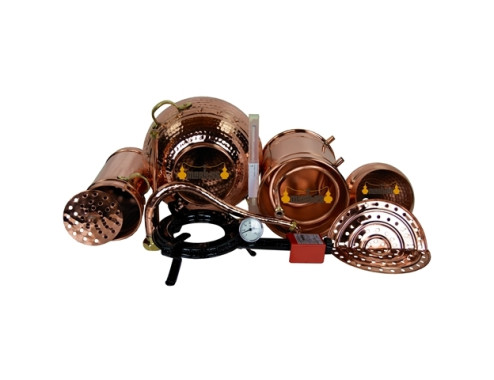

⚙️ Included Accessories

The ECO Complete Distillation Kit for Beginners includes the accessories required to facilitate and control the different distillation processes:

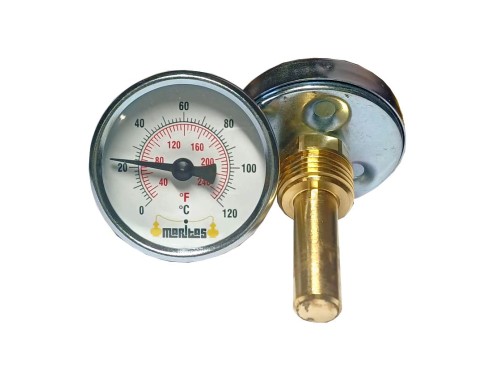

🌡️ Medium thermometer, 0–120 °C: for monitoring the temperature during distillation.

🥃 Large alcoholmeter, 0–100°: for measuring alcohol strength.

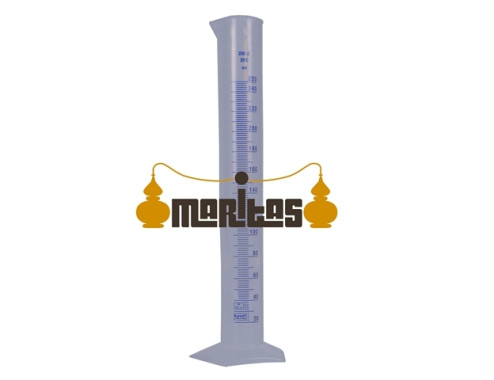

🧪 250 ml graduated cylinder: for use with the alcoholmeter.

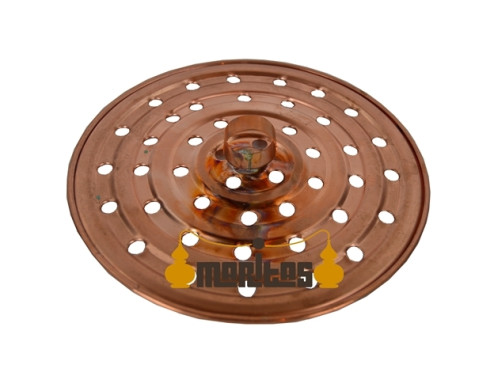

🔥 Column separation grate: helps prevent blockages during distillation.

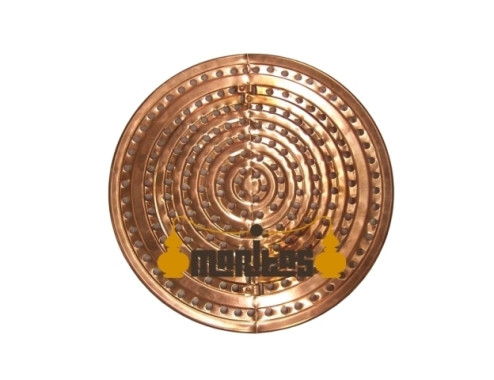

🔥 Boiler separation grate: prevents solid material from sticking to the bottom of the boiler.

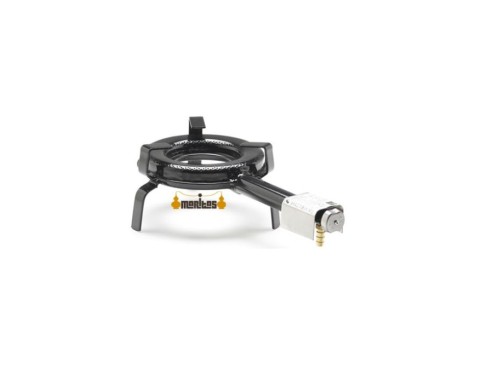

🔥 18 cm gas burner grate: specifically designed for this model.

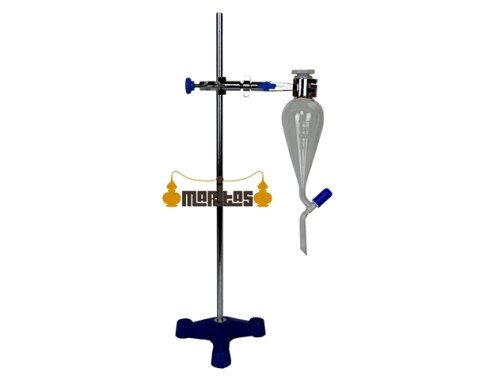

🧪 250 ml separating funnel with supports: for separating oil from water.

⭐ Who Is This Kit Suitable For?

The ECO Complete Distillation Kit for Beginners (VERSATILE) is particularly suitable for those who want to get started with distillation and are looking for complete and versatile equipment for working with alcohol as well as plants and flowers.

🏠 The ECO model is our economical option and is particularly suitable for occasional or sporadic use at home, allowing both alcohol and aromatic distillation to be carried out with the same equipment.
