Complete 10L Multifunctional Kit

🔥 Complete 10-Litre Multifunctional Kit

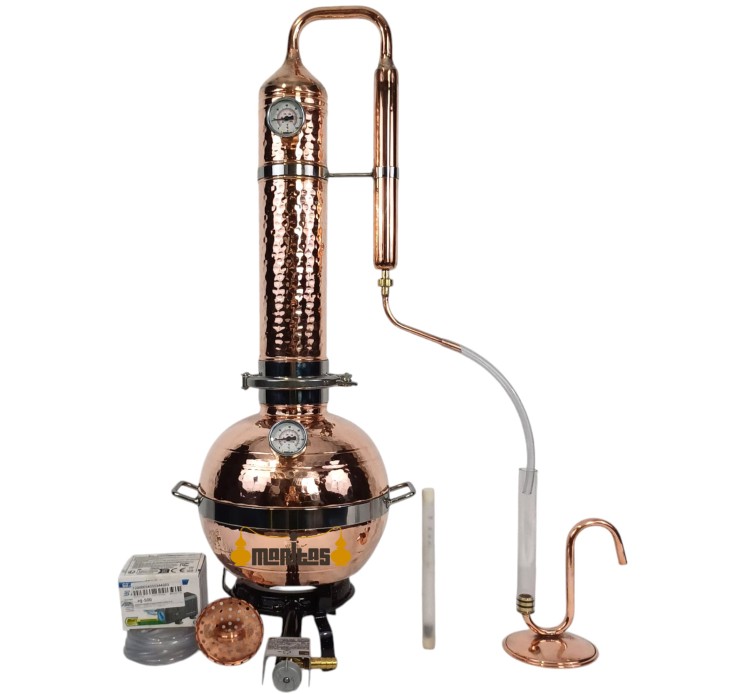

The Complete 10-Litre Multifunctional Kit is a versatile and complete solution for alcohol distillation, flavoured alcohol distillation, and the distillation of plants and flowers, allowing different types of distillation to be carried out with a single still.

🥃 Alcohol distillation

The multifunctional still has a 10-litre capacity.

For alcohol distillation, it offers a 10–15% yield when using a 10° alcoholic ferment, producing approximately 1–2 litres per distillation.

🌿 Plant and flower distillation

For plant and flower distillation, the boiler has a 10-litre capacity and the column can hold 800 g of plants or flowers.

Each distillation can produce approximately 8–9 litres of hydrosol and 25–30 ml of pure essential oil.

🔧 Still construction

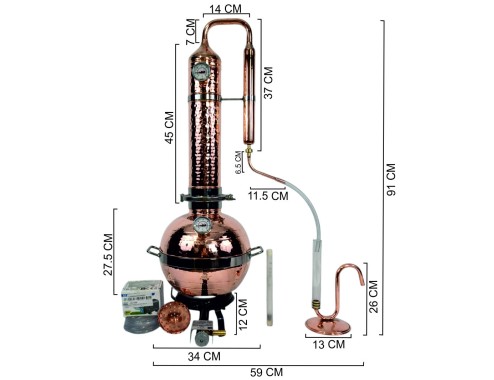

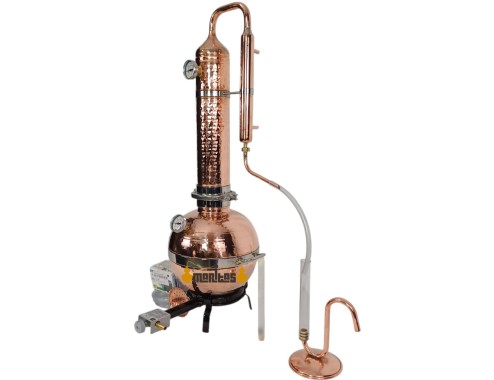

The still features a 10-litre boiler with a hammered finish, welded joints, stainless-steel reinforcements and handles, together with a 4" stainless-steel 304 Clamp that ensures a good seal.

⚙️ Multifunctional configuration

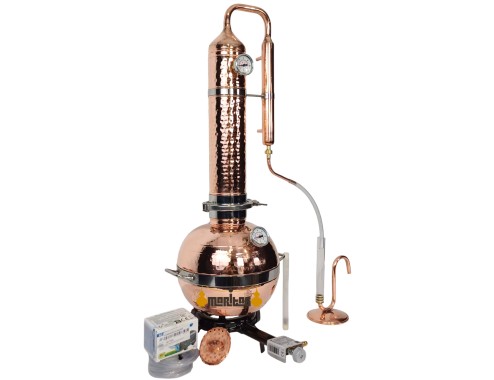

One of the features that distinguishes this still from other distillation models is its integrated configuration: the column is joined to the head, transfer tube and cooler, forming a single piece.

The equipment includes three stainless-steel reinforcements: one at the base of the column, another at the top of the column, and a third on the cooler.

The connections between the different parts are welded.

The distillate outlet tube features a bright brass nut that screws into the lower part of the condenser.

🧰 Included accessories

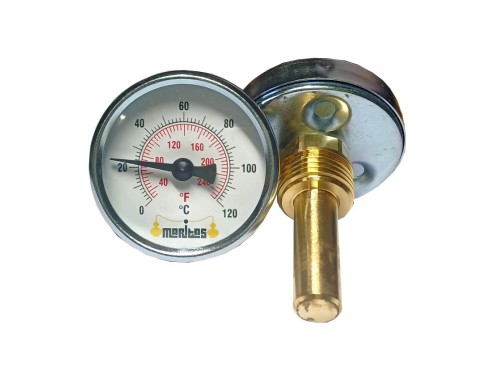

🌡️ 2 medium thermometers, 0–120º: one installed in the boiler and the other at the top of the column, allowing temperature control during distillation.

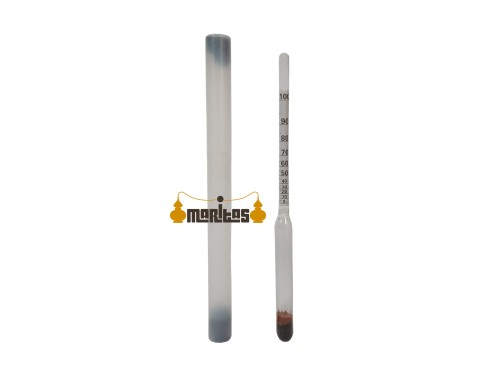

🥃 Medium alcoholmeter, 0–100º and 20 cm: for measuring the alcohol content of the distillate.

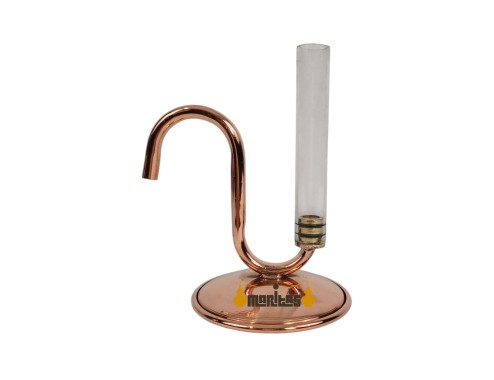

💧 Large basic essential oil separator: for separating oil from water. It can also be used as a support for the alcoholmeter.

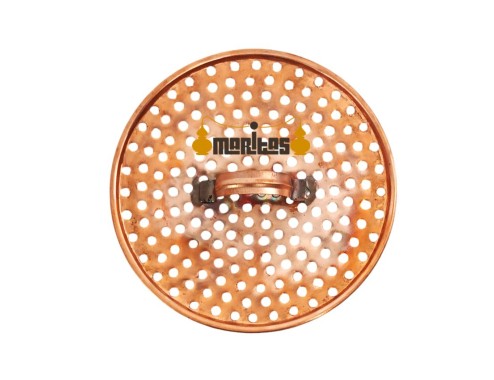

🔲 Column separation grate: helps prevent blockages during the distillation process.

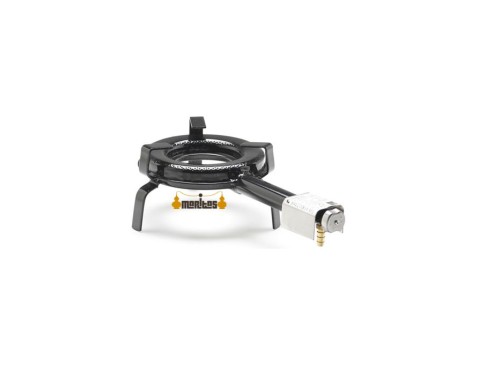

🔥 Gas grate: specifically designed for this model.

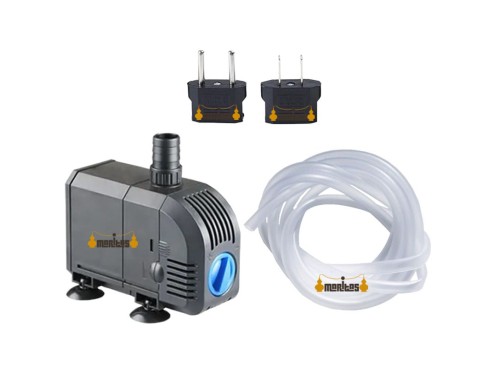

💦 7 W water pump: with adjustable flow rate for the cooling circuit.

🔵 Cooling hoses: for connecting the cooler's water circuit.

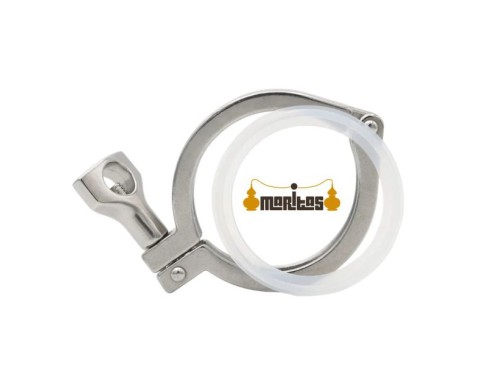

🔩 4" stainless-steel 304 Clamp: ensures a good seal.

✨ In summary

The Complete 10-Litre Multifunctional Kit is ideal for those looking to carry out flavoured alcohol and essential oil distillation using a single still, with an integrated configuration and all the accessories required for proper operation and process control.
