🔥 Complete 5-Litre Multifunctional Kit

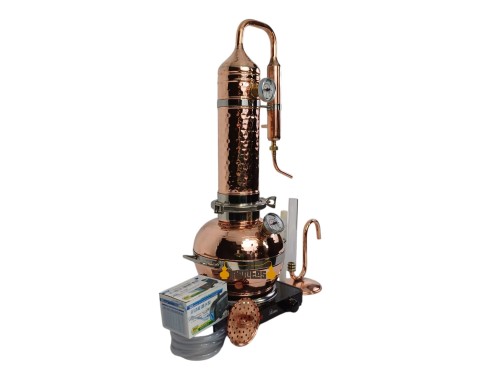

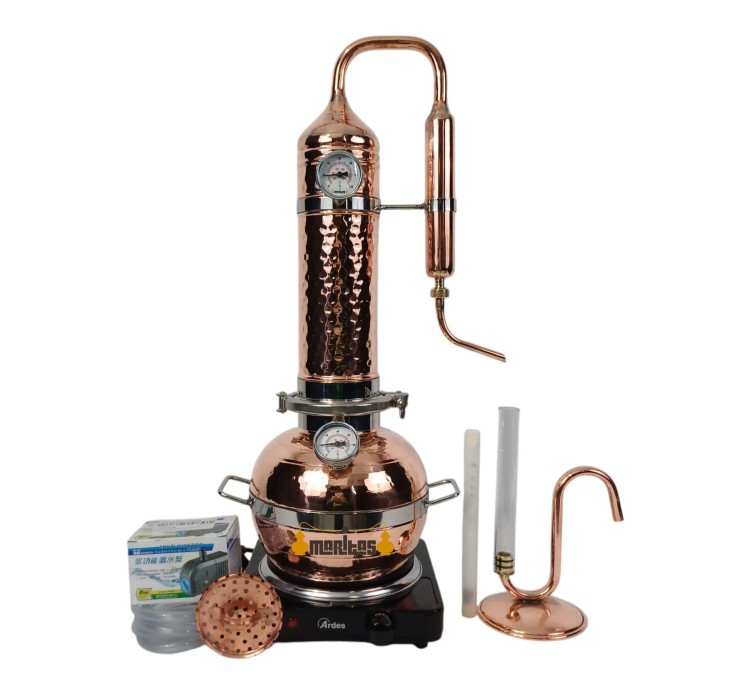

The Complete 5-Litre Multifunctional Kit is a versatile and complete set for alcohol distillation, flavoured alcohol distillation, and the distillation of plants and flowers, allowing different types of distillation to be carried out with a single still.

🥃 Alcohol distillation

The multifunctional still has a 5-litre capacity.

For alcohol distillation, it offers a 10–15% yield considering a 10° alcoholic ferment, producing approximately 500–700 ml per distillation.

🌿 Plant and flower distillation

For plant and flower distillation, the boiler has a capacity of 5 litres and the column can hold 500 g of plants or flowers.

Each distillation can produce approximately 3–4 litres of hydrosol and 15–20 ml of pure essential oil.

🔧 Still construction

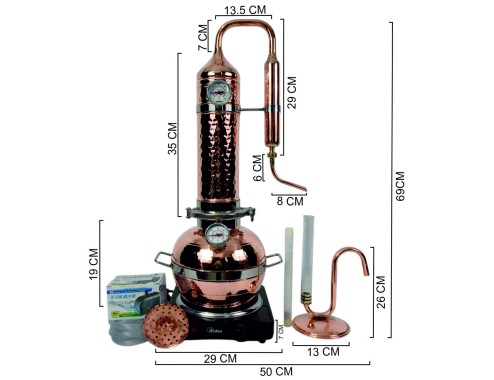

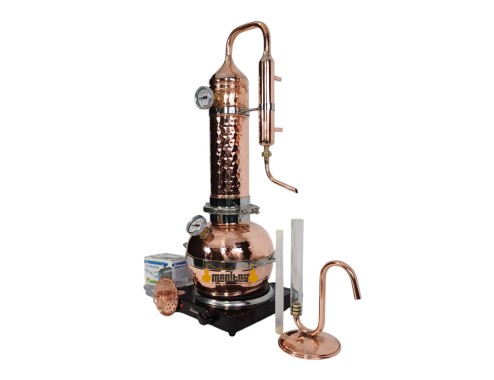

The still consists of a 5-litre boiler with a hammered finish, welded joints, stainless-steel reinforcements and handles, plus a 4" stainless-steel 304 Clamp for a good seal.

⚙️ Multifunctional configuration

One of the features that distinguishes this still from other models is its integrated configuration: the column is connected to the head, transfer tube and cooler, forming a single piece.

The equipment includes three stainless-steel reinforcements: one at the base of the column, one at the top of the column and a third on the cooler.

The connections between the different components are welded.

The distillate outlet tube has a bright brass nut that screws into the lower part of the condenser.

🧰 Included accessories

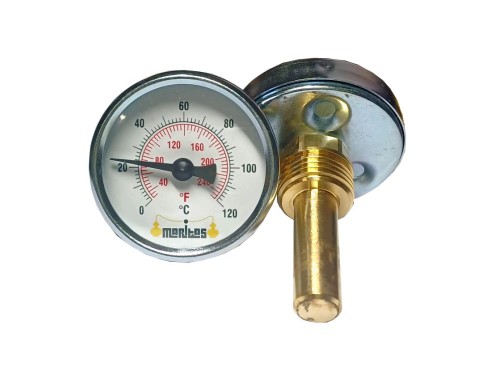

🌡️ 2 medium thermometers 0–120°: one installed on the boiler and the other at the top of the column, for temperature control during distillation.

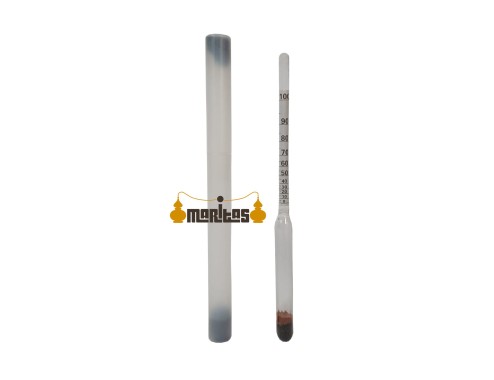

🥃 Medium alcoholmeter 0–100° and 20 cm: for measuring the alcohol content of the distillate.

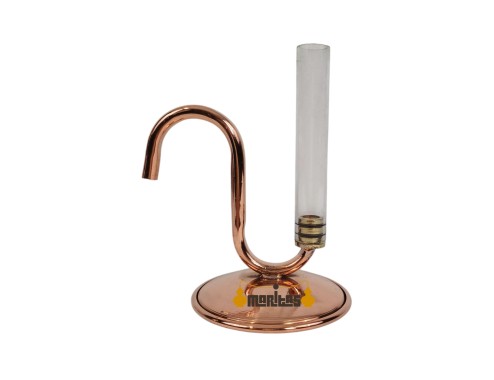

💧 Large basic essential oil separator: separates the oil from the water and can also be used as a support for the alcoholmeter.

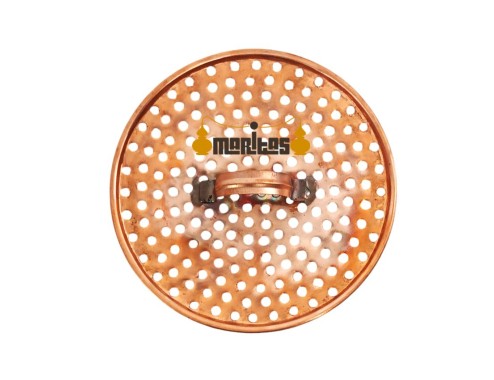

🔲 Column separation grate: helps prevent blockages during the distillation process.

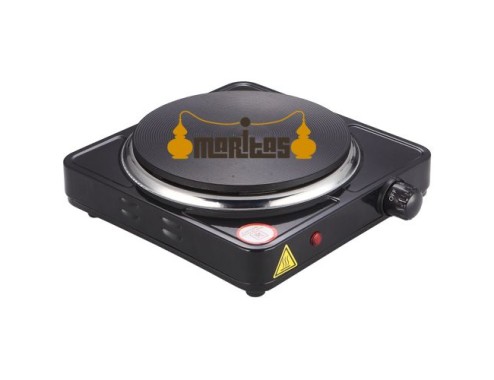

🔥 Medium electric heater: specifically designed for this model.

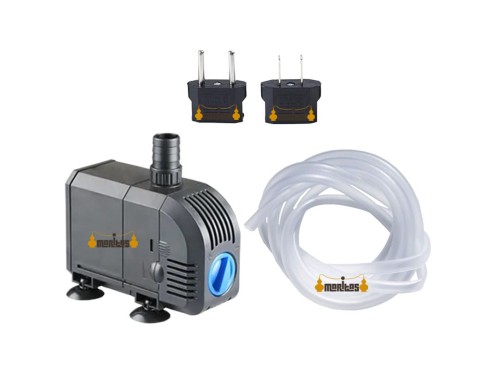

💦 7 W water pump: with adjustable flow for the cooling circuit.

🔵 Cooling circuit hoses: for connecting the cooler's water circuit.

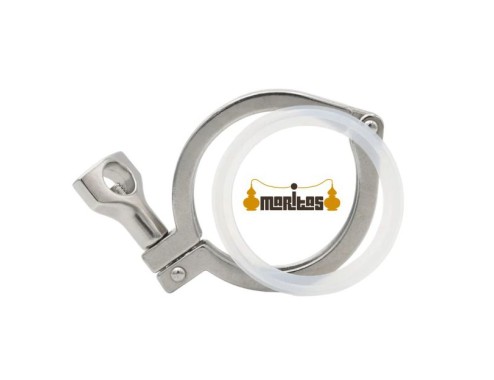

🔩 4" stainless-steel 304 Clamp: ensures a good seal.

✨ In summary

The Complete 5-Litre Multifunctional Kit is ideal for those who want to perform flavoured alcohol and essential oil distillation using a single still, with a complete configuration and all the necessary accessories for controlling and operating the equipment.
