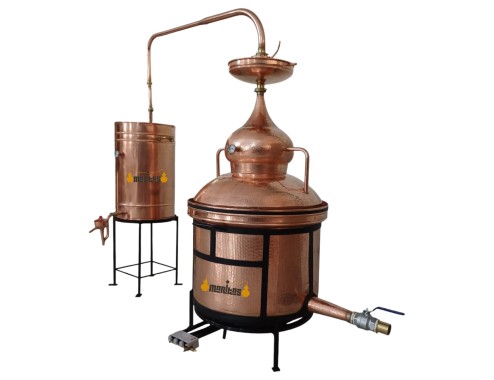

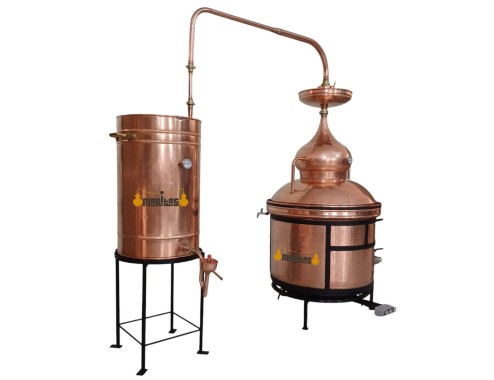

300-Litre Complete Hydraulic Still for LIQUIDS

300-Litre Complete Hydraulic Still for LIQUIDS

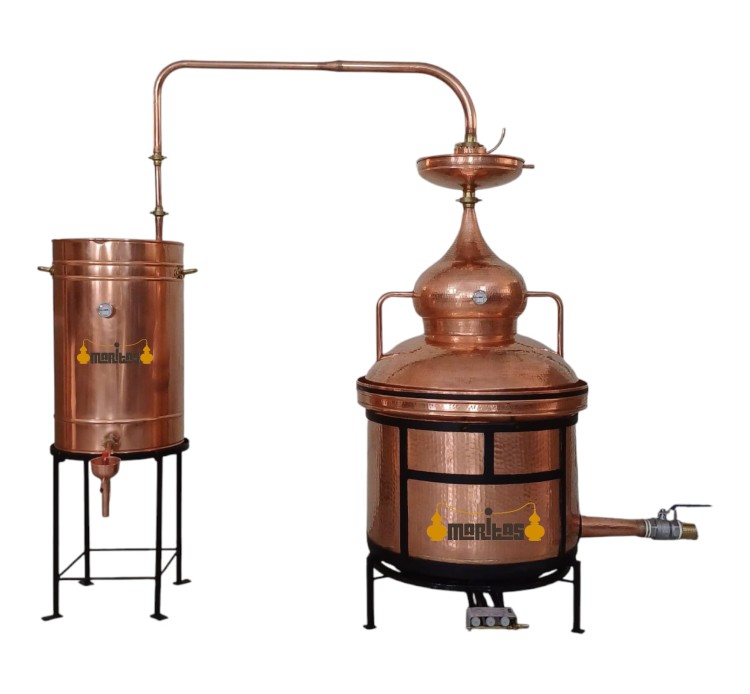

The 300-Litre Complete Hydraulic Still for LIQUIDS is designed for the alcoholic distillation of liquid ferments such as spirits, wine and must. Built from robust materials and equipped with practical accessories, it is designed to support an efficient distillation process.

🛠 Premium construction

• 2.5 mm hammered copper sheet.
• Iron handles and brass nuts.
• Welded joints throughout the structure for durability.

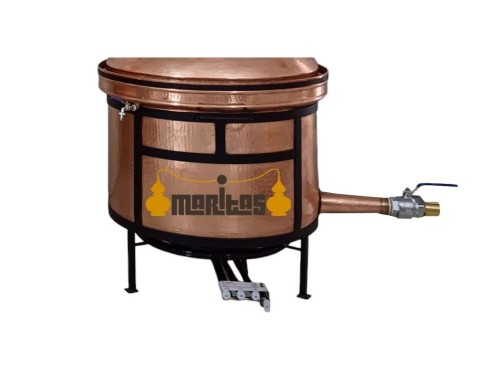

• Protective iron bars on the boiler.

🔔 Large still head

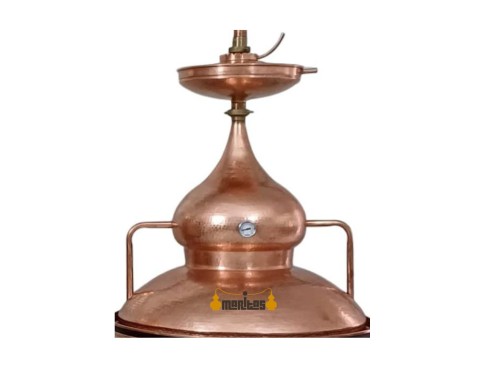

The large still head or dome is designed to promote vapour circulation and help reduce distillation time.

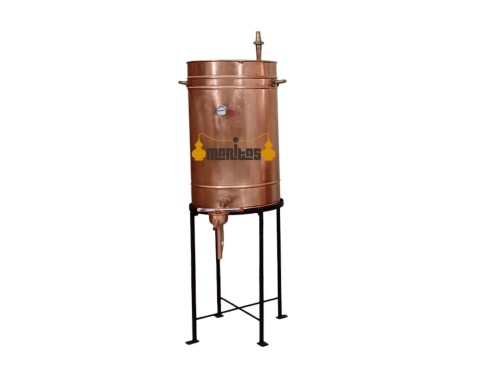

❄️ High-performance condenser

• Supports efficient vapour condensation.
• Promotes smooth vapour flow during distillation.
• Helps produce a cleaner distillate.

The condenser is a separate component from the still head.

🔥 Capacity and performance

• Total capacity: 330 litres.
• Working capacity: 300 litres.
• Estimated distillation time: 5–6 hours.
• Indicative yield: 10–15% of working capacity.

As a general guide, when distilling a fermented liquid with an alcohol content of approximately 10% ABV, the expected results are:

• Simple distillation without a rectifier: approximately 30–45 litres at around 45% ABV.
• With rectification: approximately 20–30 litres at around 75% ABV.

Actual output may vary depending on the raw material, fermentation strength and distillation conditions.

🎁 Included accessories

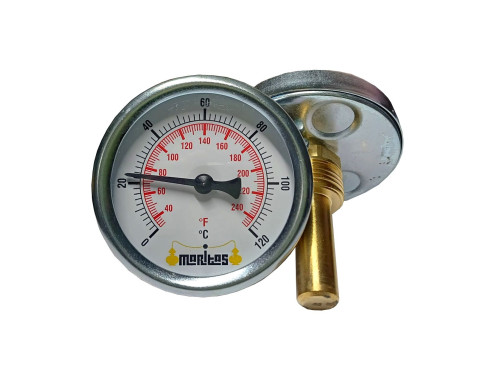

• Two large thermometers, 0–120 °C.

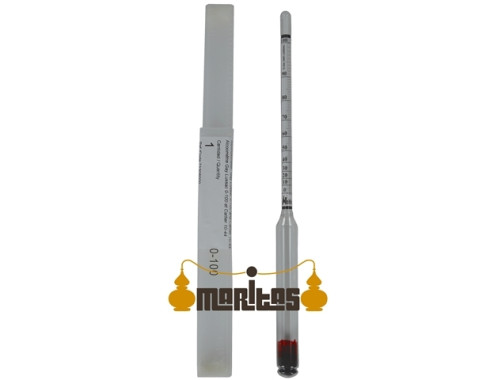

• Large alcoholmeter, 0–100% vol.

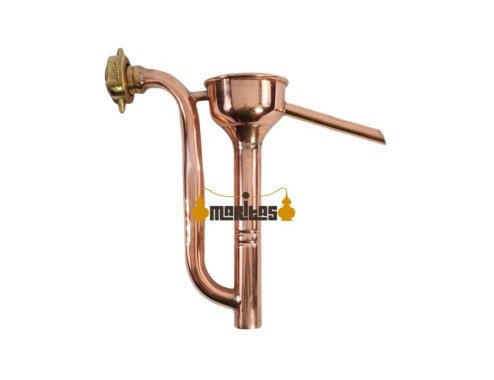

• Alcoholmeter holder.

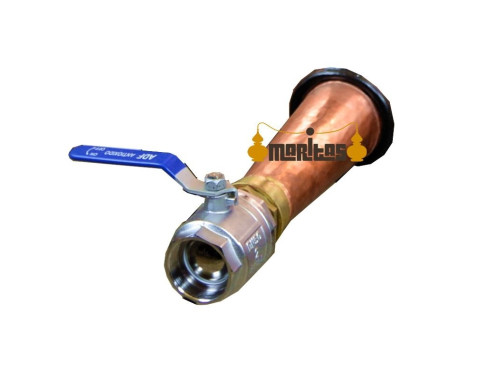

• Discharge pipe with a 2.5-inch valve, in stainless steel or brass.

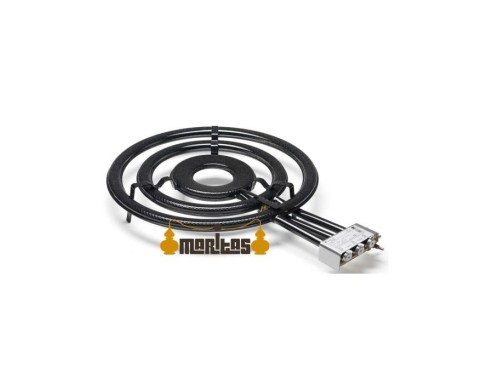

• 60 cm gas burner/grate designed for this model.

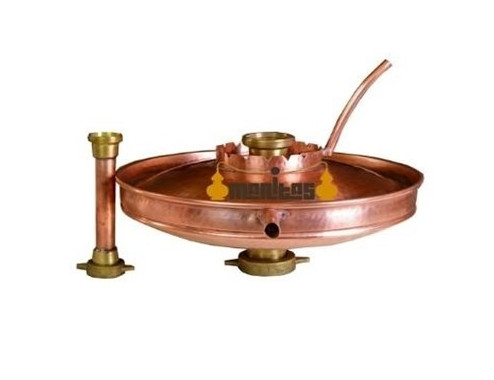

• Rectification lens to help obtain higher-strength alcohol.

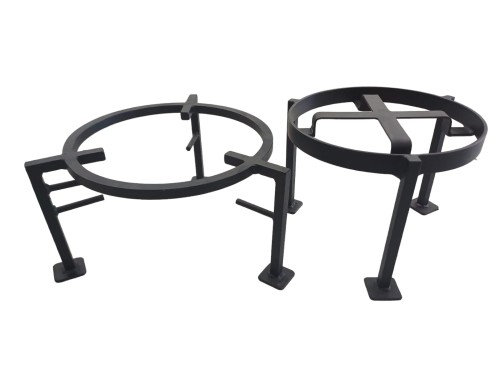

• Iron supports for the boiler and condenser.

🧴 Designed for efficient distillation

The reinforced construction, large still head and separate high-performance condenser are designed to support an efficient distillation process.
