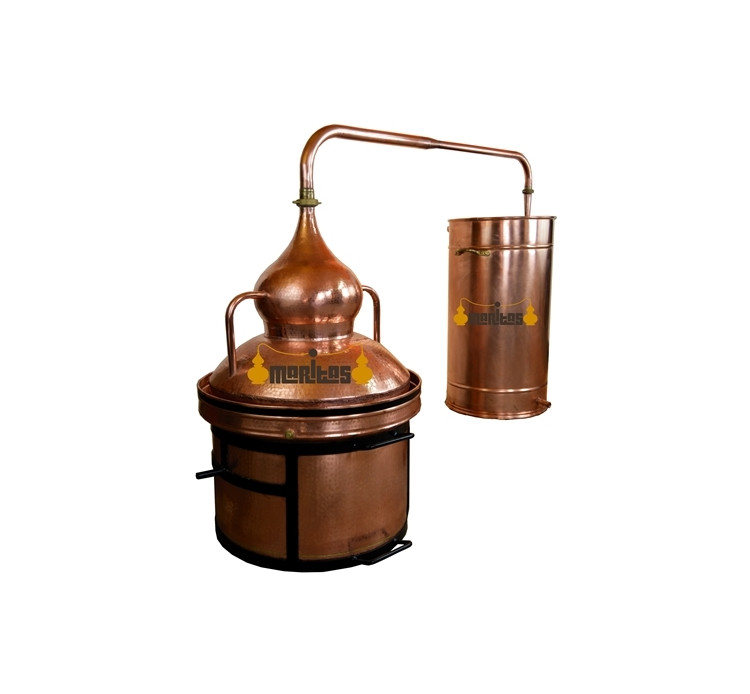

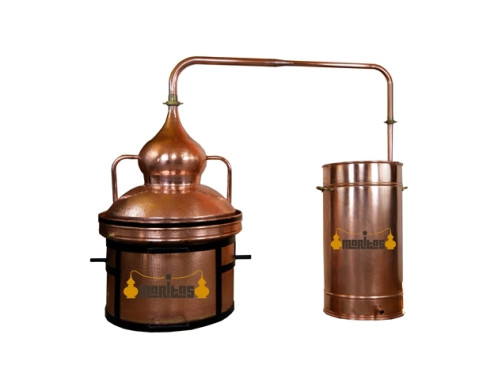

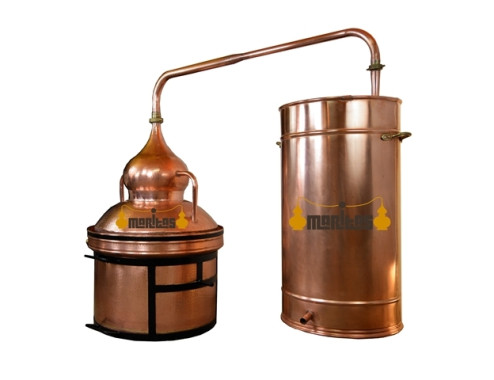

200-Litre Hydraulic Still for SOLIDS

200-Litre Hydraulic Still for SOLIDS

The 200-Litre Hydraulic Still for SOLIDS is specifically designed for alcohol distillation involving solid or semi-solid materials such as fruit, grape marc, cereals and fermented mashes. Its large capacity, reinforced construction and efficient condensation system are designed to optimise distillation performance and help produce high-quality distillates.

Premium construction

🔨 Manufactured from 2 mm thick hammered copper sheet.

🟡 Fitted with brass nuts and iron handles.

🔗 Fully welded structure for strength and durability.

🧱 Includes protective iron reinforcements on the boiler.

High-performance condenser

❄️ The condenser is designed to improve vapour condensation and optimise vapour flow, helping produce a cleaner, purer distillate.

Capacity and performance

• Total capacity: 220 litres.
• Working capacity: 200 litres.
• Estimated distillation time: 4–5 hours.
• Indicative yield: 10–15% of working capacity, depending on the fermented material and operating conditions.

Approximate output

With simple distillation, without a rectifier, using a fermented liquid with an initial alcohol content of approximately 10% ABV, the estimated output is around 20–30 litres of distillate at approximately 45% ABV.

With rectification, the estimated output is around 15–20 litres of distillate at approximately 75% ABV.

These figures are estimates only. Actual output and final alcohol strength depend on the raw material, its initial alcohol content and the distillation parameters.

Designed to optimise the process

🧴 The reinforced construction and efficient condenser are designed to optimise both the quality and quantity of the distillate. With its large working capacity and robust design, this model offers a durable solution for alcohol distillation using solid or semi-solid materials.
