500-Litre Complete Hydraulic Still with GIN BOX

🥇 500-Litre Complete Hydraulic Still with GIN BOX

✨ Designed for the alcoholic distillation of liquids, offering high performance and excellent distillate quality.

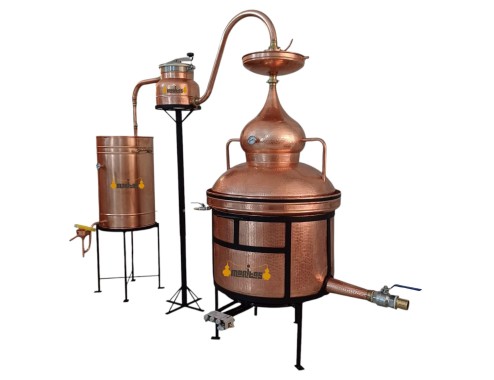

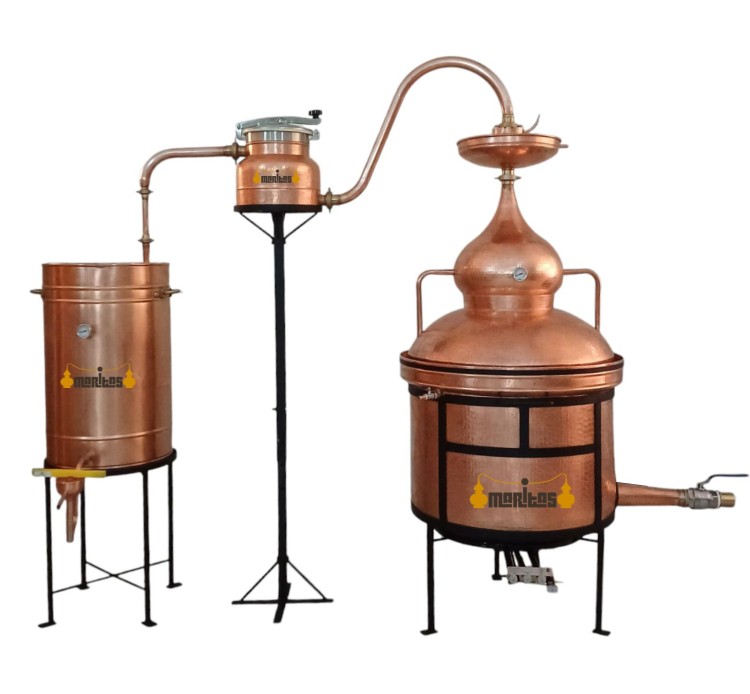

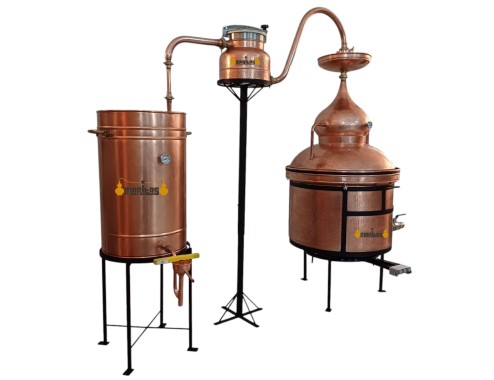

Introducing the 500-litre Complete Hydraulic Still with GIN BOX, a robust and durable piece of equipment designed to produce clean, aromatic and highly pure distillates. It is suitable for liquid ferments such as spirits, wine, must, gin, whisky and rum. 🍇🔥

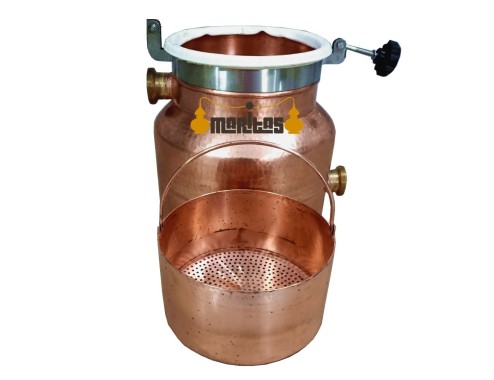

🌿 GIN BOX with botanical basket

This model includes a GIN BOX equipped with a botanical basket, expanding the possibilities for crafting artisan gin using techniques such as steam distillation or infusion to extract distinctive aromas and flavours from the selected ingredients.

🛠 Premium construction

🔨 Manufactured from 2.5 mm thick hammered copper sheet.

🟡 Iron handles and brass nuts.

🔗 Welded joints throughout the structure for strength and durability.

🧱 Includes protective iron bars inside the boiler.

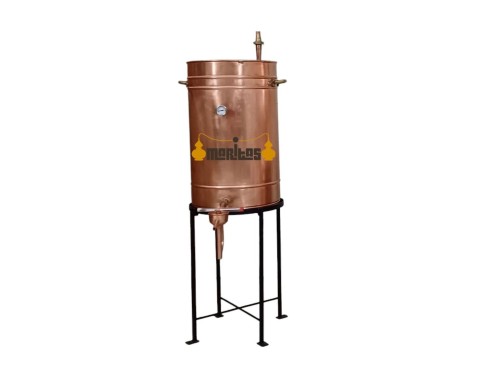

❄️ High-performance condenser

The condenser facilitates vapour condensation and optimises gas flow, helping to produce a cleaner and purer distillate.

🔥 Capacity and performance

🛢 Total capacity: 550 litres.

🧪 Working capacity: 500 litres.

⏳ Estimated distillation time: 6–8 hours.

📈 Indicative yield: 10–15% of the working capacity.

For simple distillation without a rectifier, using a fermented product at approximately 10% ABV, the estimated output is 50–75 litres at around 45% ABV.

With rectification, the estimated output is 40–50 litres at around 75% ABV.

🎁 Included accessories

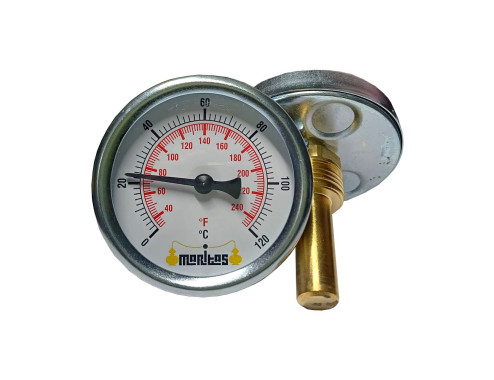

🌡️ Two large thermometers with a 0–120° scale.

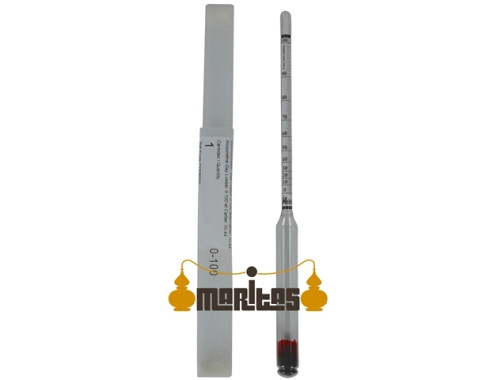

🧪 Large alcoholmeter with a 0–100% scale and holder.

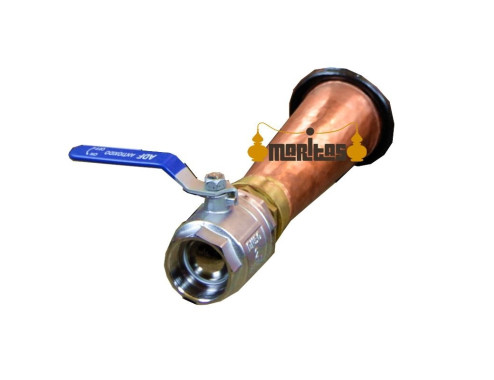

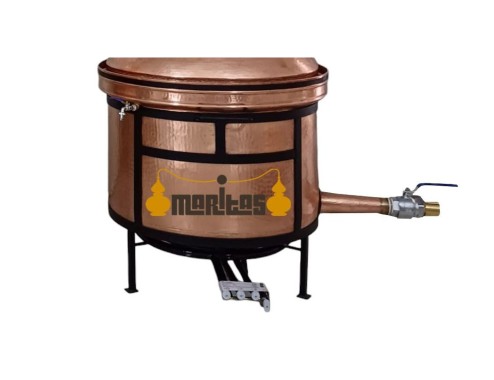

💧 Drain pipe with a 2.5-inch valve, made of stainless steel or brass.

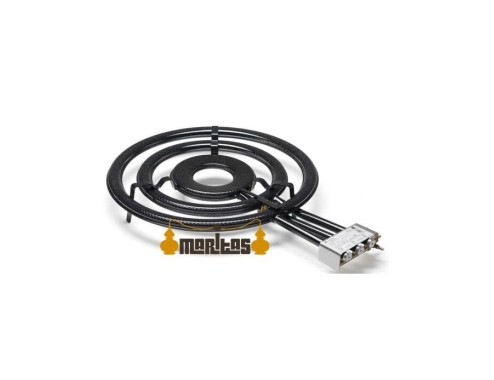

🔥 70 cm gas burner specifically suited to this model.

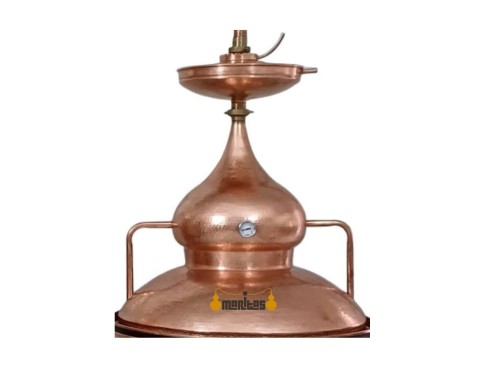

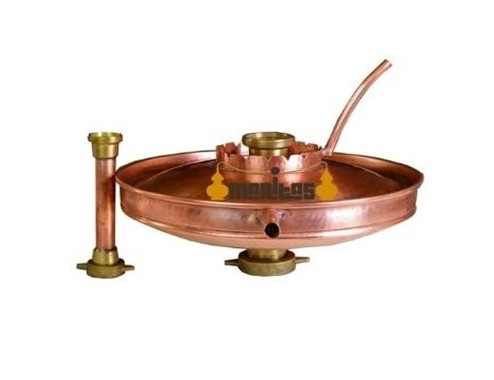

⚗️ Rectification lens for obtaining alcohol with greater purity and strength.

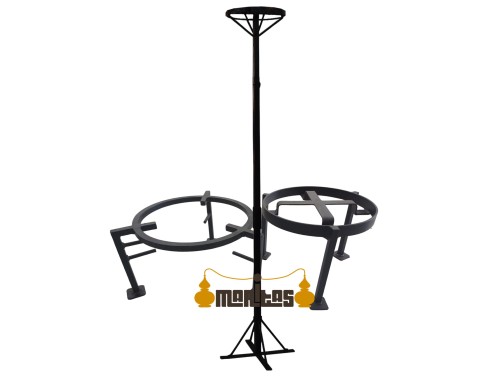

🛠 Iron supports for the boiler, GIN BOX and condenser.

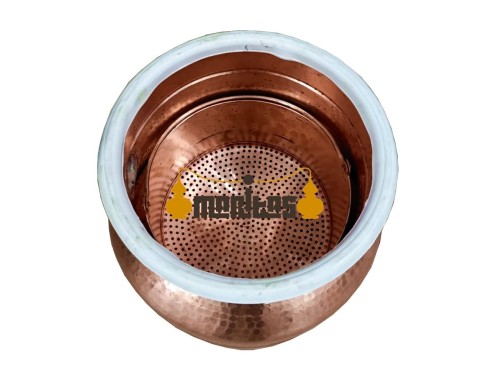

🌿 GIN BOX fitted with a botanical basket, ideal for flavouring distillates through steam distillation or infusion.

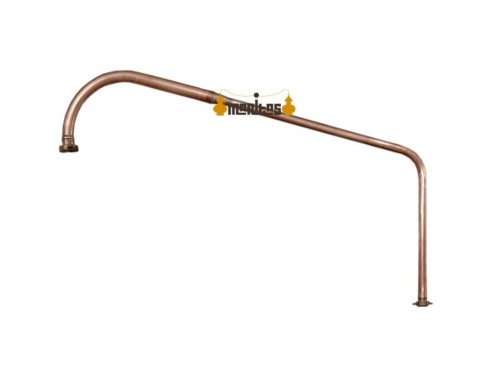

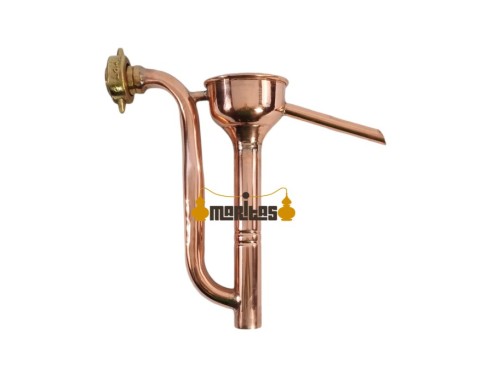

🔄 Transfer tube allowing the still to be used without the GIN BOX as well.

🧴 Process optimisation

The reinforced construction and high-performance condenser are designed to support efficient distillation. The GIN BOX adds versatility to the equipment, allowing users to experiment with botanicals and create artisan gins with distinctive aromatic profiles.

ℹ️ Distillation times and yields are approximate and may vary depending on the raw material, fermentation strength and distillation conditions.
