100-Litre Complete Hydraulic Still for SOLIDS

🥇 100-Litre Complete Hydraulic Still for SOLIDS

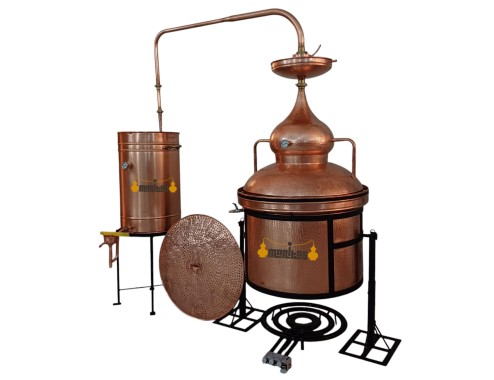

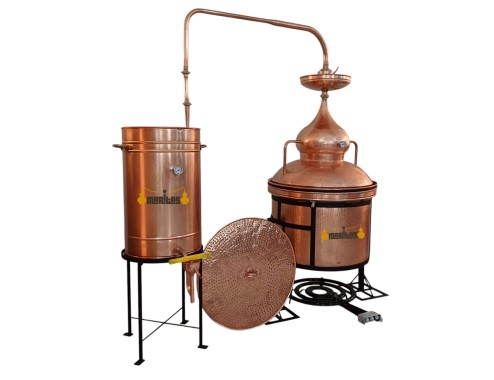

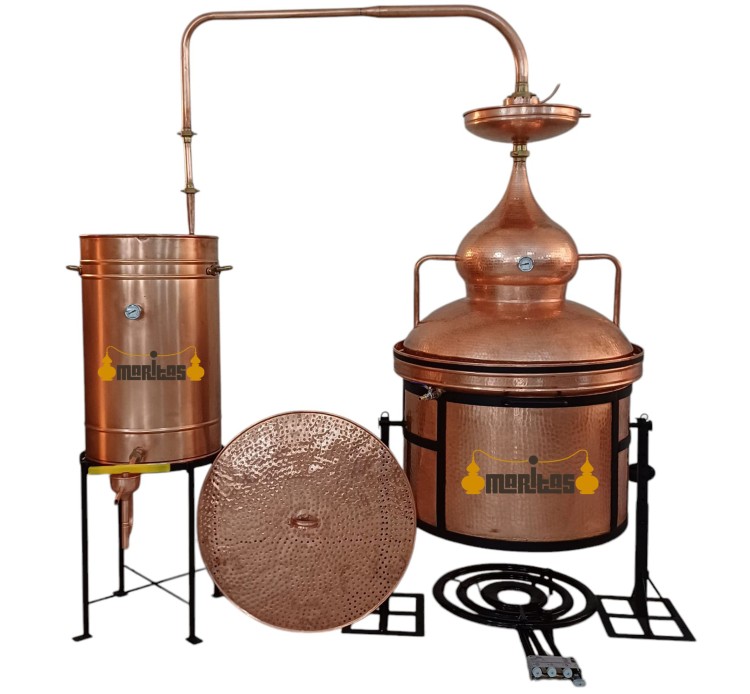

The 100-Litre Complete Hydraulic Still for SOLIDS is designed for alcoholic distillation of solid materials such as fruit, grape pomace, cereals and doughs. Its robust construction and efficient condensation system are designed to optimise both distillate quality and yield.

🛠 Premium construction

🔨 Made from 2 mm hammered copper.

🟡 Brass nuts and iron handles.

🔗 Fully welded structure for strength and durability.

🧱 Iron protective reinforcements on the boiler help protect it during distillation and make it easier to tip out the remaining product.

❄️ High-performance condenser

The condenser promotes efficient vapour condensation and optimises vapour flow, helping to produce a cleaner distillate.

🔥 Capacity and performance

🛢 Total capacity: 110 litres.

🧪 Working capacity: 100 litres.

⏳ Estimated distillation time: 3–4 hours.

📈 Indicative yield: 10–15% of working capacity.

With simple distillation, without a rectifier and using a fermented wash at 10° alcohol, the approximate output is 10–15 litres at around 45% ABV.

With rectification, the approximate output is 8–10 litres at around 75% ABV. Results may vary depending on the fermented material and distillation conditions.

🎁 Included accessories

🌡️ Two large thermometers, 0–120°.

🧪 Alcoholmeter, 0–100°, and alcoholmeter holder.

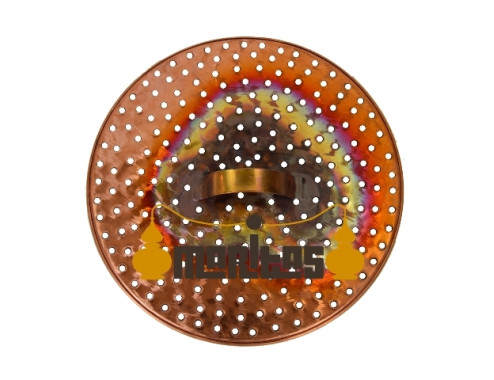

🔩 Separation grate to help prevent solids from sticking to the bottom of the boiler.

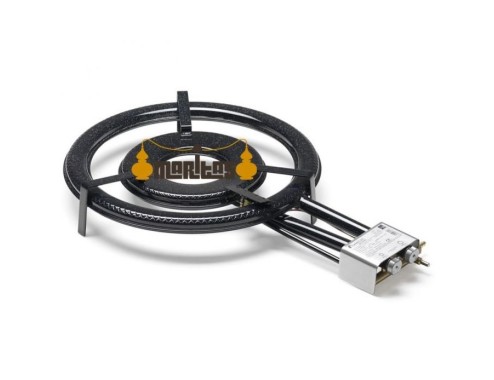

🔥 Dedicated 46 cm gas burner designed for this model.

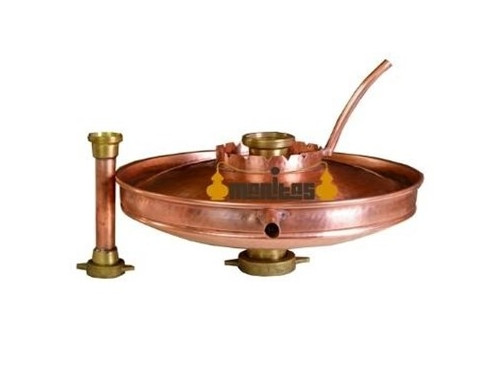

💧 Rectification lens to help achieve higher alcohol purity.

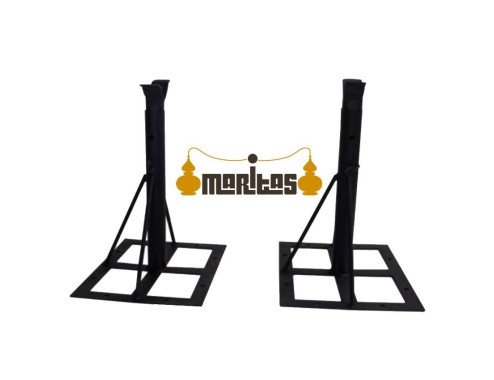

🛠 Iron supports for tipping the boiler and cooler.

🧴 Process optimisation

The combination of hammered copper, reinforced construction, an efficient condenser and purpose-designed accessories makes this complete model a high-capacity solution for alcoholic distillation involving solid materials.
