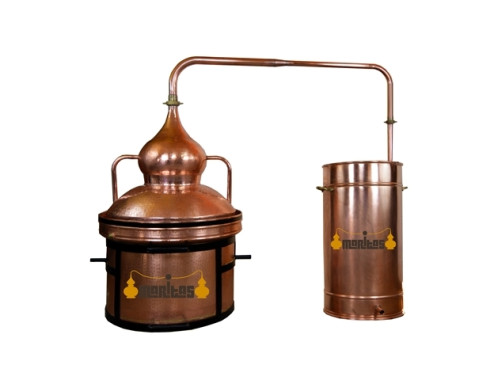

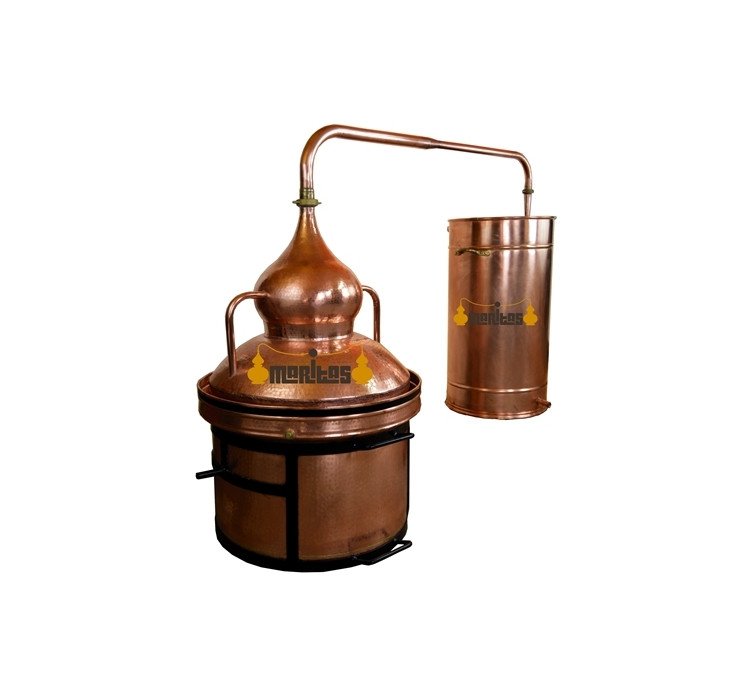

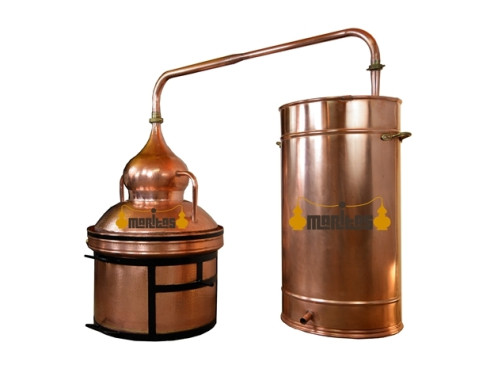

100-Litre Hydraulic Still for SOLIDS

The 100-Litre Hydraulic Still for SOLIDS is a professional, high-capacity still specifically designed for alcohol distillation from solid or semi-solid raw materials, such as fruit, grape pomace, cereals and dough-like mixtures.

Its reinforced construction, quality materials and high-performance condenser are designed to support an efficient distillation process and help produce a clean, high-quality distillate.

🛠 Premium construction and reinforced design

🔨 Made from 2 mm hammered copper, built for demanding use.

🟡 Fitted with polished brass nuts and iron handles.

🧱 Includes iron protective reinforcements around the boiler.

🔗 Fully welded throughout for a strong, durable structure.

❄️ High-performance condenser

The condenser is designed to improve vapour condensation and support smooth vapour flow. This helps achieve a cleaner, higher-quality distillate.

🔥 Capacity and performance

🛢 Total capacity: 110 litres.

🧪 Working capacity: 100 litres.

⏳ Estimated distillation time: 3–4 hours, depending on operating conditions and the raw material.

📈 Indicative yield: 10–15% of working capacity, depending on the fermented wash and distillation process.

🍶 Approximate output

For a simple distillation without a rectification unit, using a fermented wash at 10% ABV, the estimated output is 10–15 litres at approximately 45% ABV.

With rectification, the estimated output is 8–10 litres at approximately 75% ABV.

These figures are indicative and may vary according to the raw material, its alcohol content and the distillation conditions.

✨ Designed for efficient distillation

This model combines a robust, reinforced structure with an efficient condensation system to support both output and distillate quality. Its design is specifically suited to solid or semi-solid materials.

🏭 Made to order

This still is manufactured to order. Request your personalised quote and check delivery times before placing your order.
