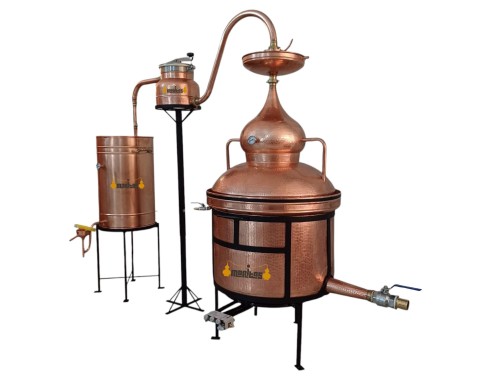

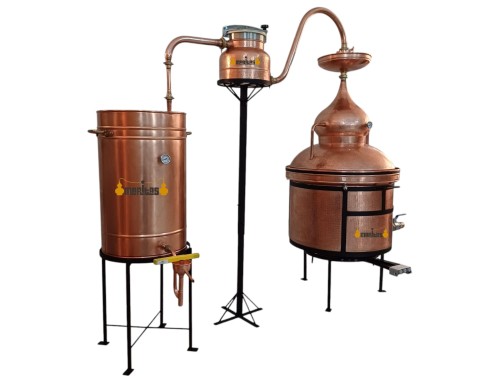

200-Litre Complete Hydraulic Still with GIN BOX

200-Litre Complete Hydraulic Still with GIN BOX

A robust, versatile still designed for fermented liquids and equipped with a GIN BOX for working with botanicals.

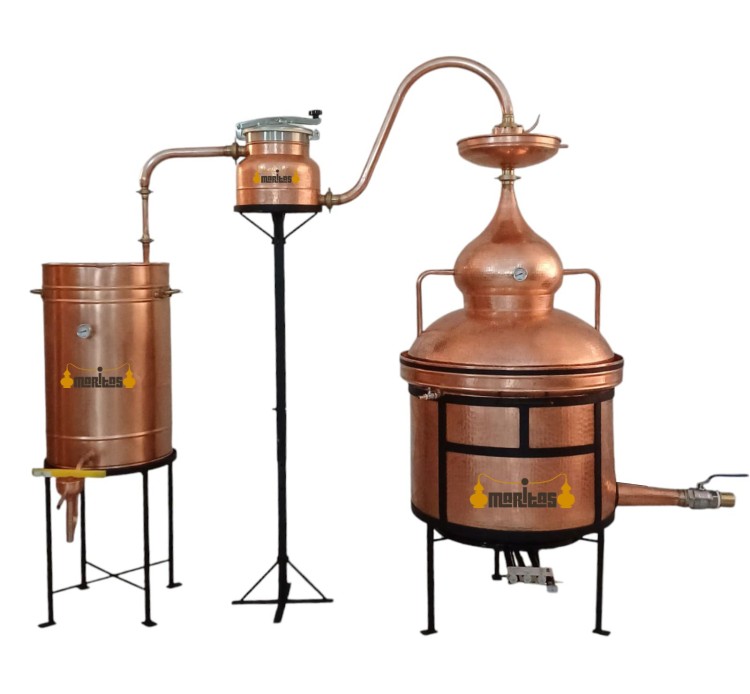

The 200-litre Complete Hydraulic Still with GIN BOX is designed for distilling fermented liquids such as wine, must and fermented bases for brandy, gin, whisky or rum. Its reinforced construction and high-performance condenser are designed to support an efficient distillation process.

This model comes with a GIN BOX fitted with a botanical basket, allowing aromatic ingredients to be used in vapour infusion or maceration, depending on the chosen method. It also includes a rectification attachment and a transfer tube, so the still can be used without the GIN BOX.

🔨 Robust construction and quality materials

The still is made from durable materials selected for long service life with proper care and maintenance.

✔ 2 mm hammered copper sheet.

✔ Brass nuts and iron handles.

✔ Welded joints throughout the structure.

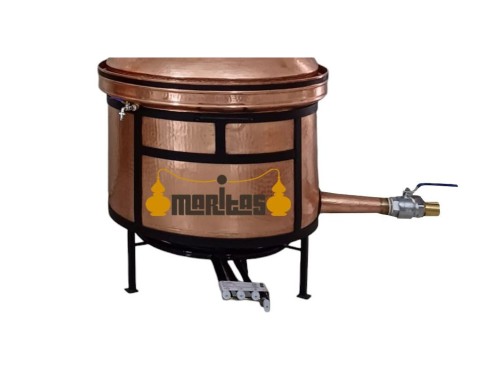

✔ Protective iron bars around the boiler.

✔ Iron supports for the boiler, GIN BOX and cooling unit.

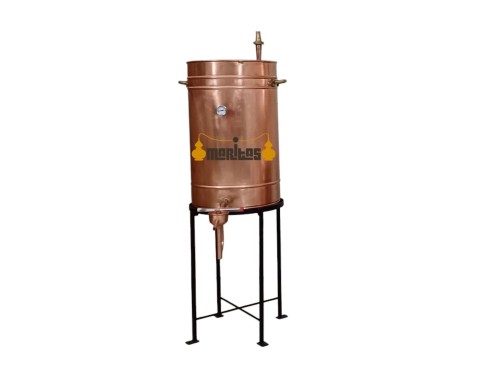

❄️ High-performance condenser

The condenser is designed to help condense vapour efficiently and promote the flow of vapours through the system. Its configuration supports efficient operation of the equipment.

🛢 Capacity and estimated performance

✔ Total capacity: 220 litres.

✔ Working capacity: 200 litres.

✔ Estimated distillation time: 4–5 hours.

✔ Manufacturer’s indicative yield: 10–15% of the working capacity.

📈 Approximate output stated by the manufacturer

The figures below are estimates and may vary depending on the composition and initial alcohol strength of the fermented liquid, as well as operating conditions.

Simple distillation, without the rectification attachment, using a 10% ABV fermented liquid: approximately 20–30 litres at around 45% ABV.

With rectification: approximately 15–20 litres at around 75% ABV.

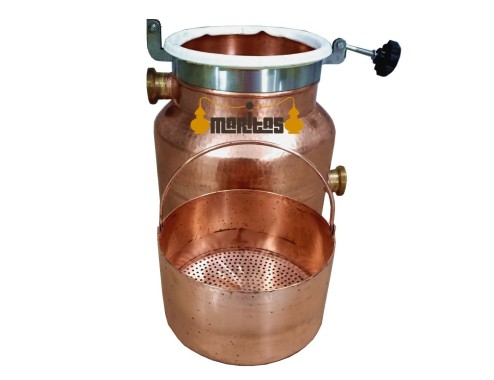

🍸 GIN BOX with botanical basket

The GIN BOX expands the still’s capabilities by allowing botanicals to be incorporated during vapour infusion or maceration, depending on the technique used. It is particularly useful for making craft gin with a customised aromatic profile.

A transfer tube is also included, allowing the still to be operated without the GIN BOX.

🎁 Included accessories

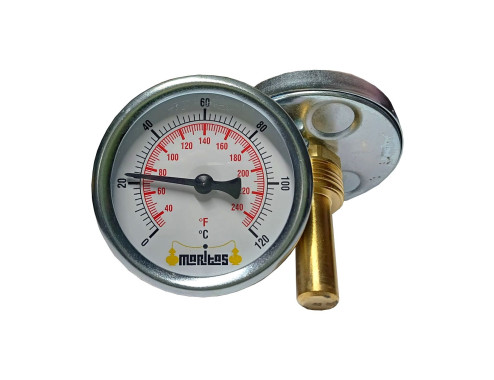

✔ Two large thermometers, 0–120 °C.

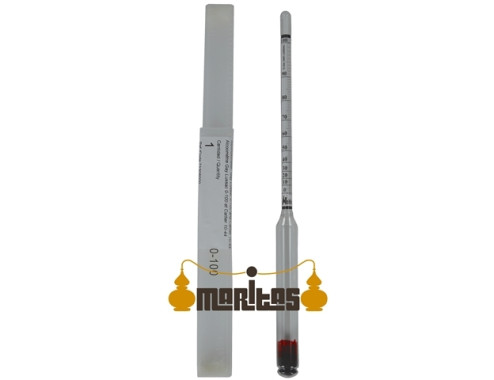

✔ Large alcoholmeter, 0–100°.

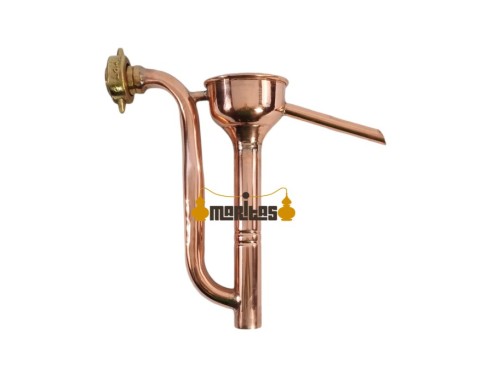

✔ Alcoholmeter holder.

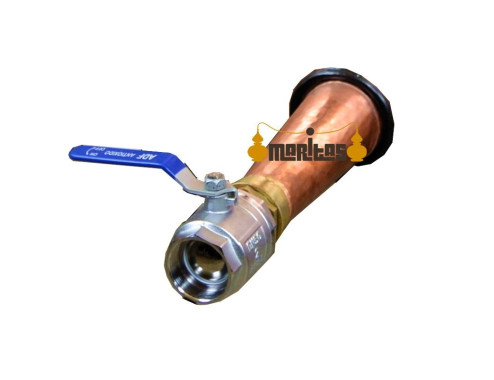

✔ Discharge pipe with a 2.5-inch valve, made from stainless steel or brass.

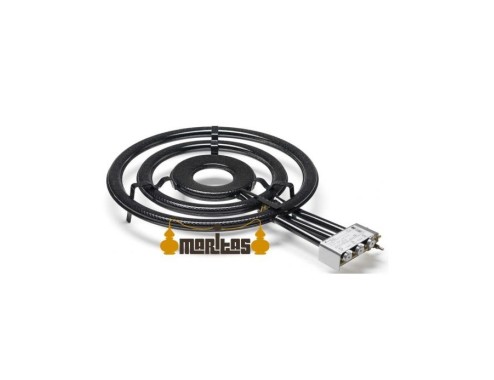

✔ 60 cm gas burner designed for this model.

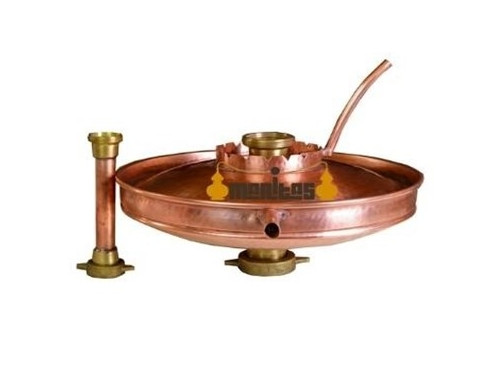

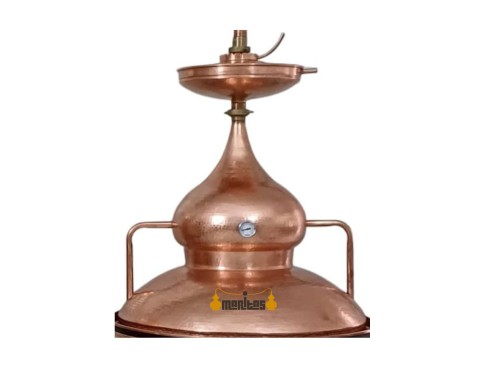

✔ Rectification attachment.

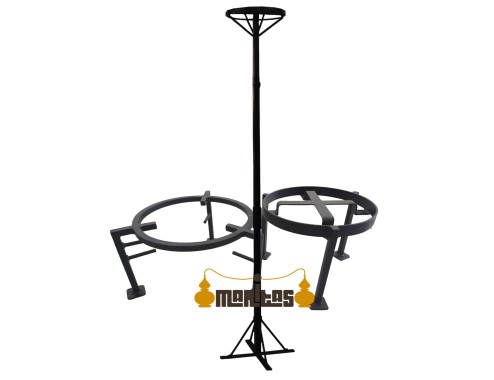

✔ Iron supports for the boiler, GIN BOX and cooling unit.

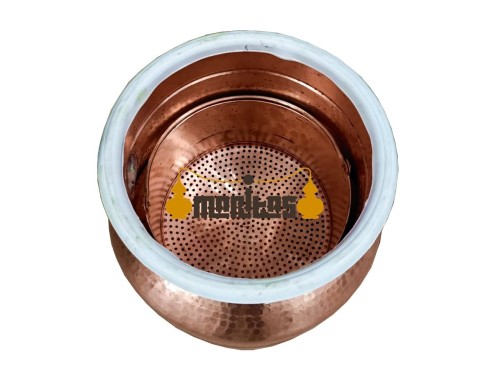

✔ GIN BOX fitted with a botanical basket.

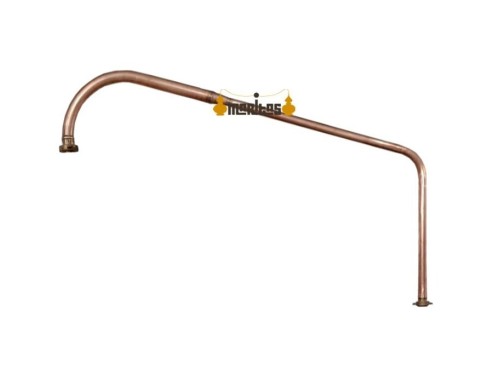

✔ Transfer tube for operation without the GIN BOX.

⚙️ Versatility for different distillation processes

The combination of a large-capacity boiler, a condenser designed for efficient operation, a rectification attachment and the GIN BOX provides different setup options depending on the product being made and the process used.

With its sturdy construction and comprehensive range of accessories, this model offers a complete solution for those looking for a high-capacity hydraulic still.

Note: stated distillation times and yields are estimates, not guaranteed results. Actual performance depends on the raw material and the conditions under which distillation takes place.
