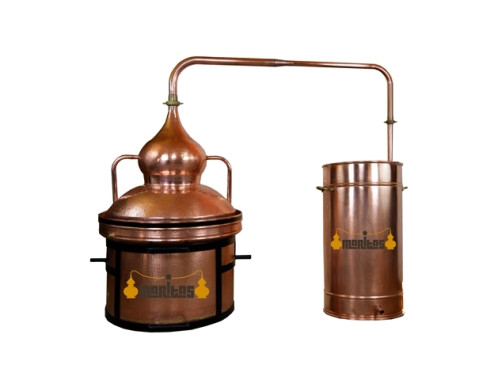

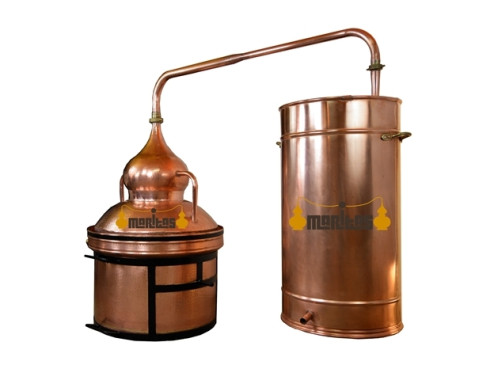

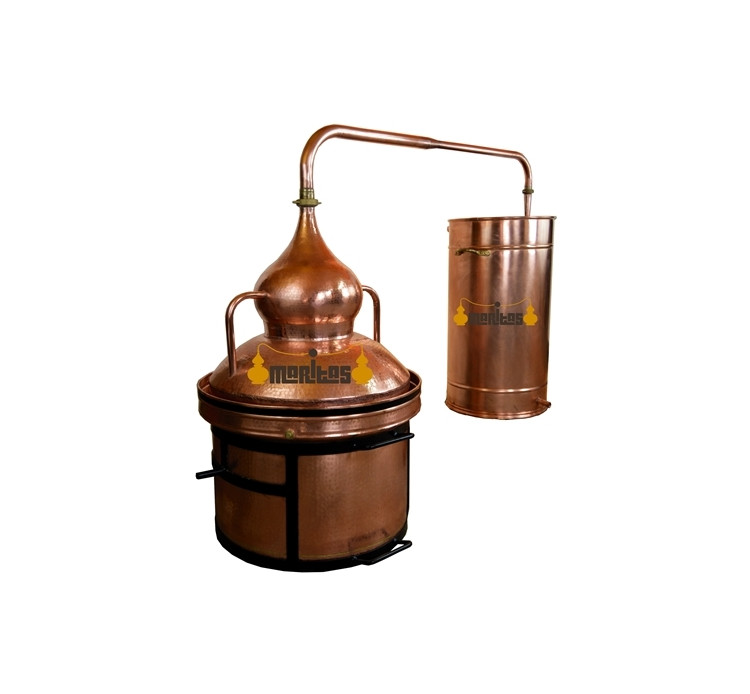

300-Litre Hydraulic Still for SOLIDS

300-Litre Hydraulic Still for SOLIDS

A robust, high-capacity still designed for alcohol distillation using solid raw materials.

The 300-Litre Hydraulic Still for Solids is recommended for working with fruit, grape marc, cereals, dough-like mixtures and other raw materials suitable for this type of distillation. Its reinforced construction and condensation system are designed to support an efficient process and produce a good-quality distillate.

🔨 Robust construction and quality materials

✔ 2.5 mm hammered copper sheet.

✔ Brass nuts and iron handles.

✔ Welded joints throughout the structure.

✔ Protective iron bars on the boiler.

❄️ High-performance condenser

The condenser is designed to promote vapour condensation and optimise vapour flow through the system, supporting efficient operation of the equipment.

🛢 Capacity and estimated performance

✔ Total capacity: 330 litres.

✔ Working capacity: 300 litres.

✔ Estimated distillation time: 5–6 hours.

✔ Indicative yield: 10–15% of working capacity.

📈 Approximate output

The figures below are estimates and may vary depending on the raw material, the composition and initial alcohol strength of the fermented mixture, and operating conditions.

Simple distillation, without a rectifier, using a fermented mixture at approximately 10% ABV: around 30–45 litres at approximately 45% ABV.

With rectification: around 20–30 litres at approximately 75% ABV.

⚙️ Designed to optimise the process

The combination of reinforced construction, a high-capacity boiler and an efficient condenser is designed to optimise the distillation process in terms of both distillate quality and quantity.

This model is an option for those who need a large-capacity still adapted to working with solid raw materials.

Note: the stated times and yields are estimates, not guaranteed results. Actual output depends on the raw material and distillation conditions.
