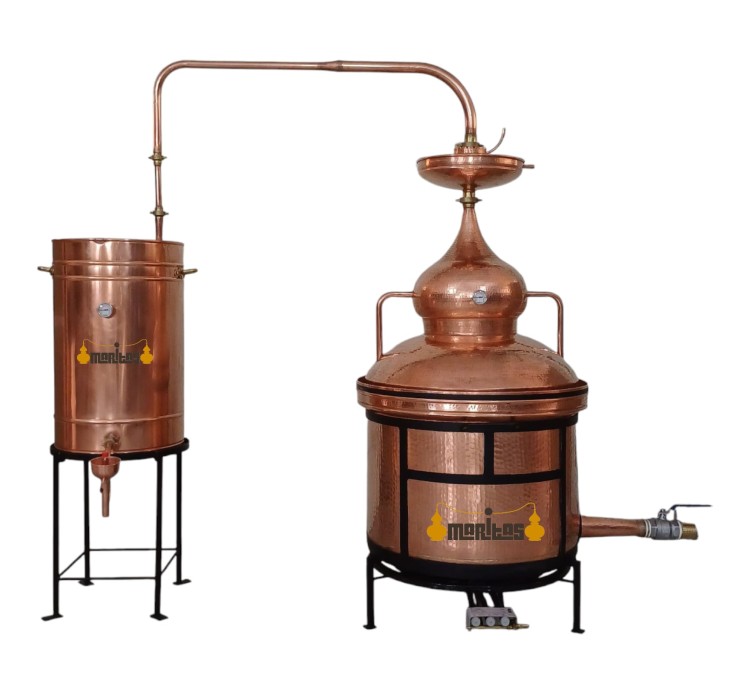

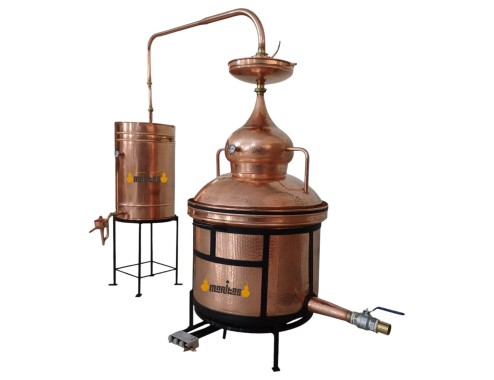

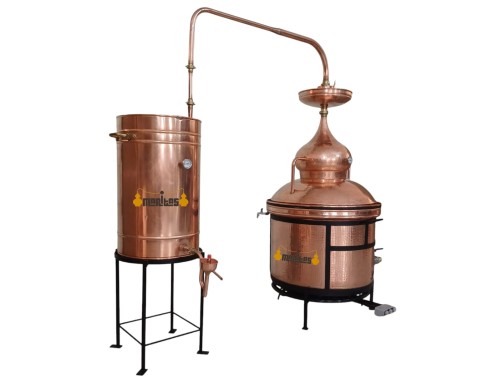

100-Litre Complete Hydraulic Still for LIQUIDS

🥇 100-Litre Complete Hydraulic Still for LIQUIDS

The 100-Litre Complete Hydraulic Still for LIQUIDS is designed for alcoholic distillation of liquid ferments such as spirits, wine and must. Its robust construction and efficient condensation system are designed to optimise distillate quality, purity and yield.

🛠 Premium construction

🔨 Made from 2 mm hammered copper.

🟡 Brass nuts and iron handles.

🔗 Fully welded structure for strength and durability.

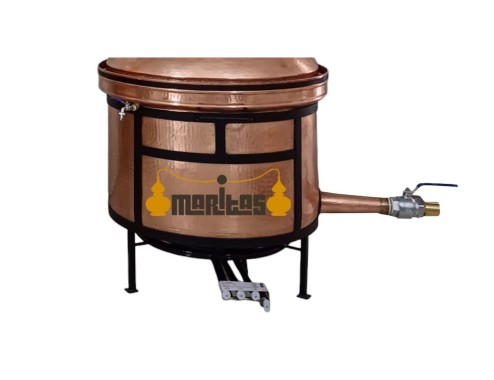

🧱 Includes protective iron reinforcements on the boiler.

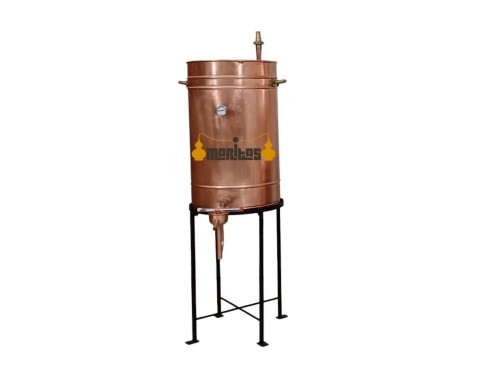

❄️ High-performance condenser

The condenser facilitates vapour condensation and optimises vapour flow, helping to produce a cleaner, purer distillate.

🔥 Capacity and performance

🛢 Total capacity: 110 litres.

🧪 Working capacity: 100 litres.

⏳ Estimated distillation time: 3–4 hours.

📈 Indicative yield: 10–15% of working capacity.

With simple distillation, without a rectifier and using a fermented wash at 10° alcohol, the approximate output is 10–15 litres at around 45% ABV.

With rectification, the approximate output is 8–10 litres at around 75% ABV. Actual results may vary depending on the fermented material and distillation conditions.

🎁 Included accessories

🌡️ Two large thermometers, 0–120°.

🧪 Large alcoholmeter, 0–100°, with holder.

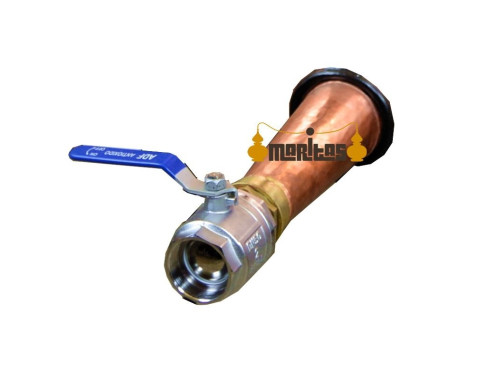

🔩 2-inch discharge pipe with a valve made of stainless steel or brass.

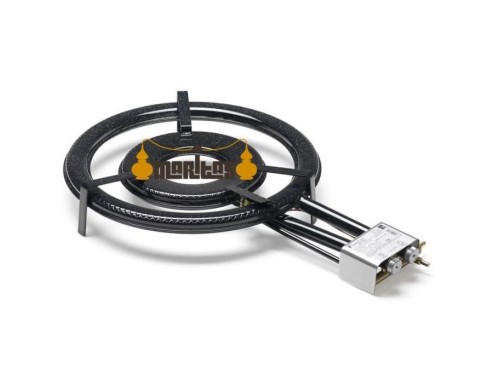

🔥 Dedicated 46 cm gas burner designed for this model.

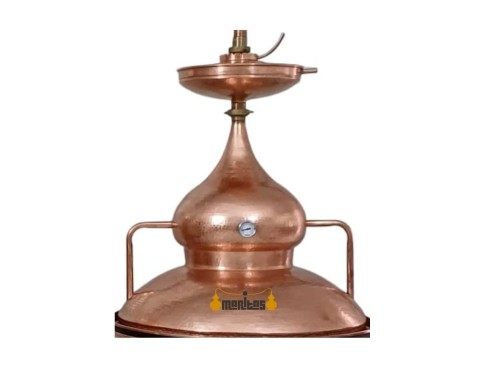

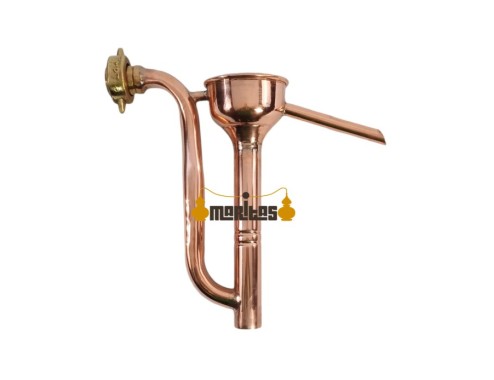

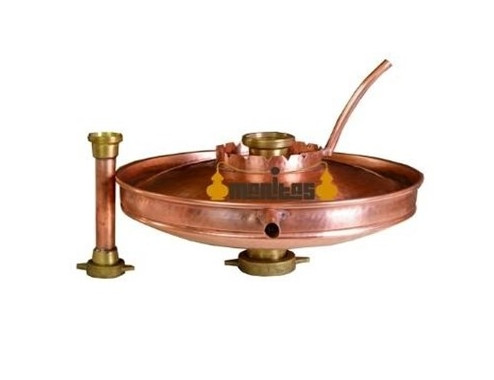

💧 Rectification lens to help achieve greater alcohol purity and strength.

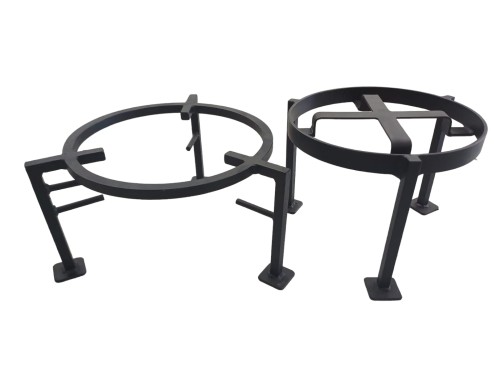

🛠 Iron supports for the boiler and cooler.

🧴 Process optimisation

The combination of hammered copper, reinforced construction, a head fitted with a high-performance condenser and a secure discharge system makes this complete model a robust solution for distilling liquid ferments.
