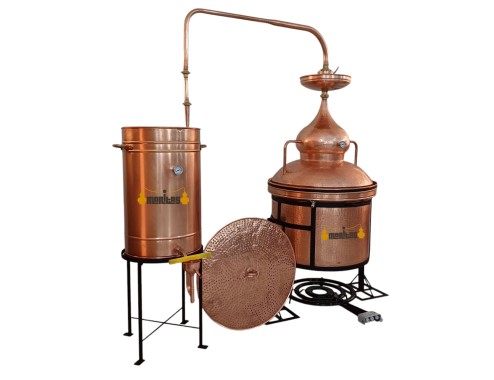

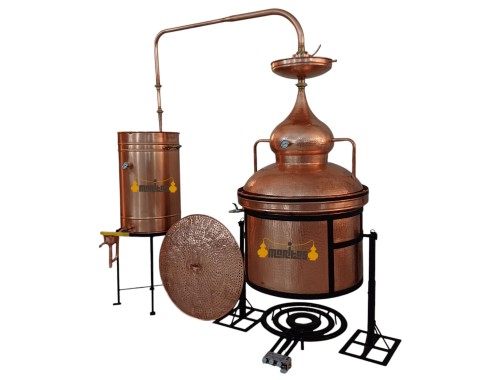

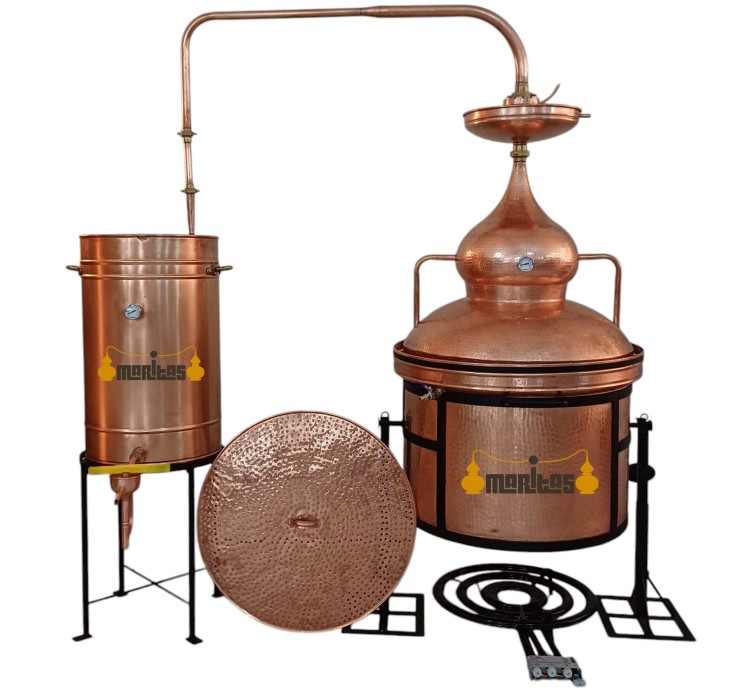

300-Litre Complete Hydraulic Still for SOLIDS

300-Litre Complete Hydraulic Still for SOLIDS

Introducing the 300-litre Complete Hydraulic Still for SOLIDS, a high-capacity, durable and high-performance unit specifically designed for alcohol distillation of solid materials such as fruit, grape marc, cereals and fermented mashes. Its reinforced construction and carefully designed components help optimise the distillation process, both in terms of distillate quality and output. 🍇🔥

🛠 Premium construction

• 2.5 mm hammered copper sheet.
• Iron handles and brass nuts.
• Welded joints throughout the structure for greater durability.
• Protective iron bars on the boiler.

The protective bars make it easier to tip out the remaining product and help protect the boiler during distillation.

🔔 Large still head or dome

This model features a large still head or dome designed to promote vapour circulation during distillation and help reduce processing time.

❄️ High-performance condenser

• Improves vapour condensation.
• Optimises vapour flow during distillation.
• Helps produce a cleaner, purer distillate.

The condenser is a separate component from the still head and is designed to provide efficient condensation throughout the process.

🔥 Capacity and performance

• Total capacity: 330 litres.
• Working capacity: 300 litres.
• Estimated distillation time: 5–6 hours.
• Indicative yield: 10–15% of working capacity.

As a guide, for a fermented liquid with an alcohol content of approximately 10% ABV, the estimated results are:

• Simple distillation, without a rectifier: approximately 30–45 litres at around 45% ABV.
• With rectification: approximately 20–30 litres at around 75% ABV.

Actual output may vary depending on the raw material, fermentation strength and distillation conditions.

🎁 Included accessories

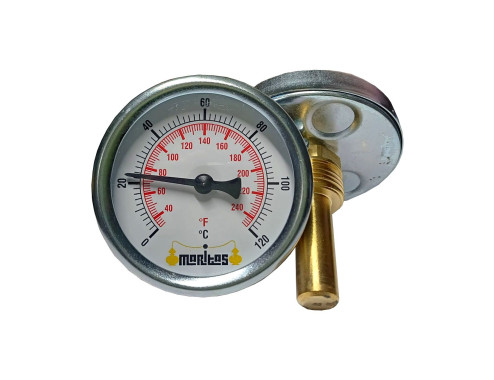

• Two large thermometers, 0–120 °C.

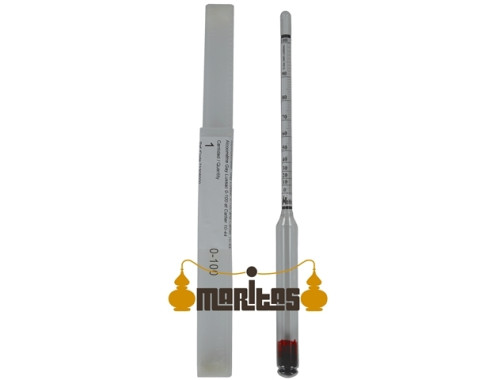

• Alcoholmeter, 0–100% vol.

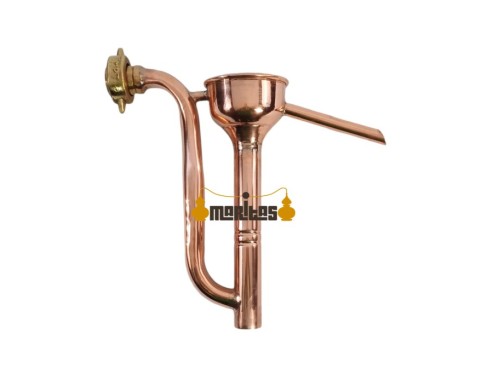

• Alcoholmeter holder.

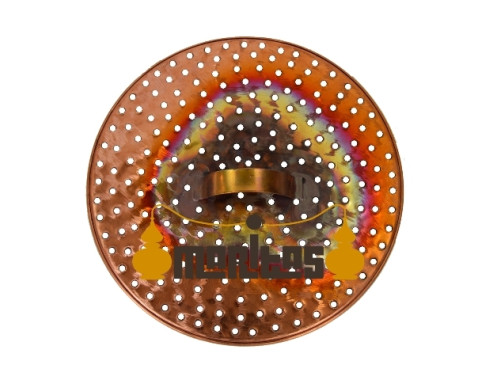

• Separation grate to prevent solids from sticking to the bottom of the boiler.

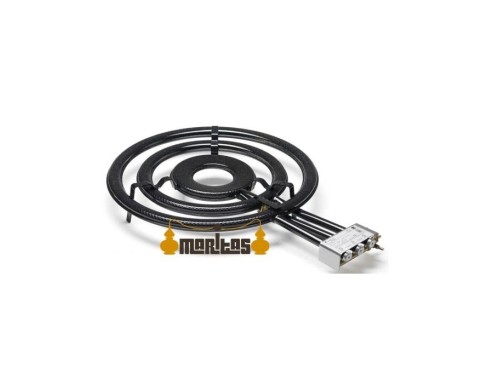

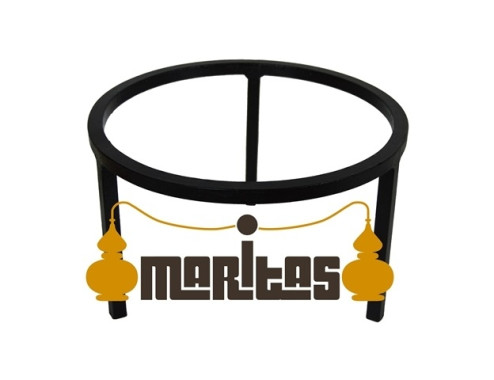

• Model-specific 60 cm gas burner.

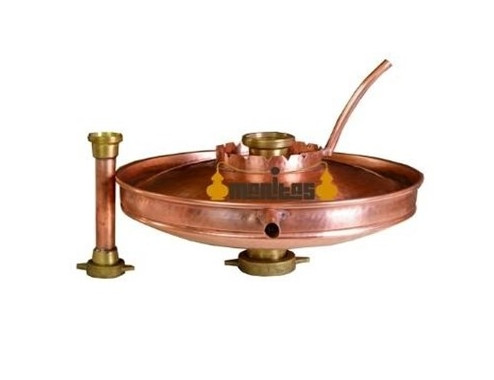

• Rectification lens for obtaining higher-purity alcohol.

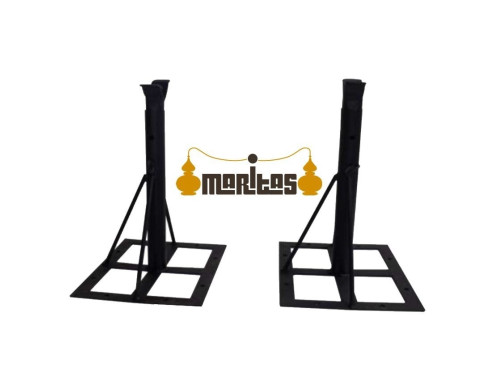

• Iron supports for tipping the boiler and the cooler.

🧴 Process optimisation

This model is designed to maximise both distillate quality and output. Its reinforced construction, boiler protection elements, large still head or dome and high-performance condenser all contribute to an optimised distillation process.
