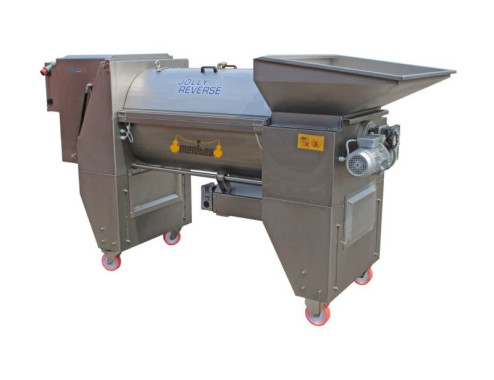

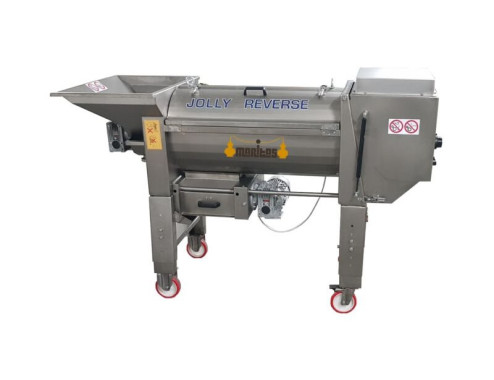

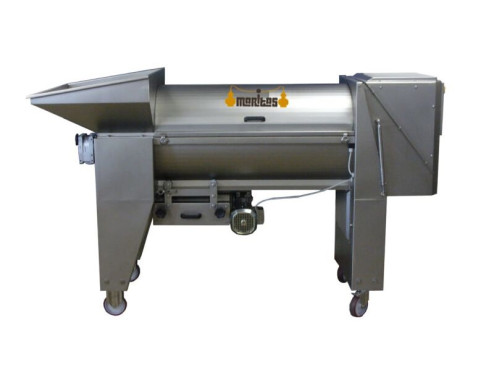

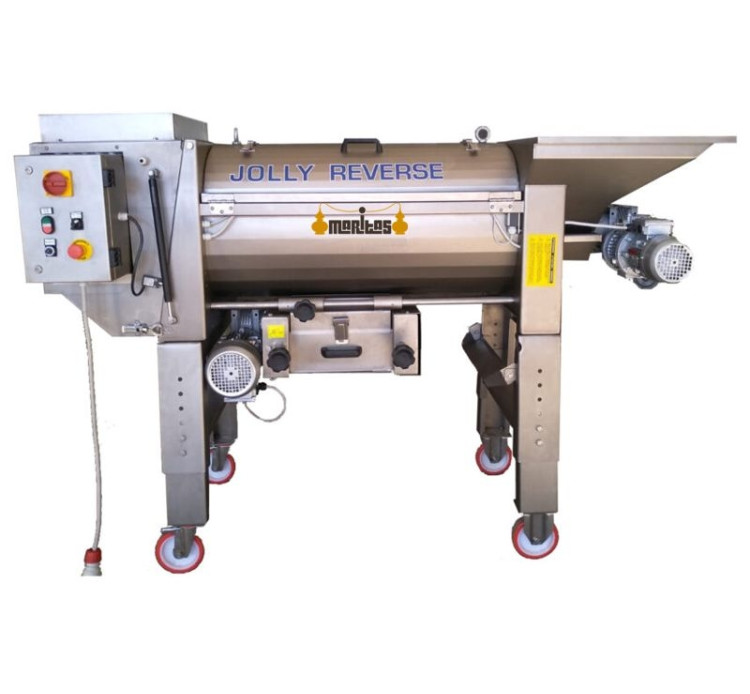

Crusher - Destemmer JOLLY 60 REVERSE

We present the Crusher - Destemmer JOLLY 60 REVERSE, a product designed to perform gentle pressing efficiently.

Gentle pressing is carried out with adjustable and removable rubber rollers and with independent motorization.

Destemming net of Ø 300 mm, made of anti-tear stamped sheet metal.

The net is equipped with the exclusive rubber drag system.

The PVC version is available on request for the Jolly 60 model.

Telescopic support legs with height adjustment from 1530 to 1930 mm.

Loading hopper with independent motor, equipped with filter for liquid extraction.

Front opening system and disassembly of machinery without the need for tools.

Integrated washing systems.

Possibility of purchasing only the destemmer.

The JOLLY 60 REVERSE is equipped as standard with 3 motors: an electronic variator for the destemmer shaft and the centrifugal net; a mechanical variator for the loading hopper; a gear motor for the roller group.

On request, it is possible to equip the machine with an automatic roller sorting line integrated into the body of the machine, or equipped with a vibrating sorting table for manual sorting.

Technical characteristics (cod.389):

• • Output: 4000 - 7000 kg/h.
  • 4.5 hp (3.2 kw) motor.
  • 350-650 rpm rotating shaft.

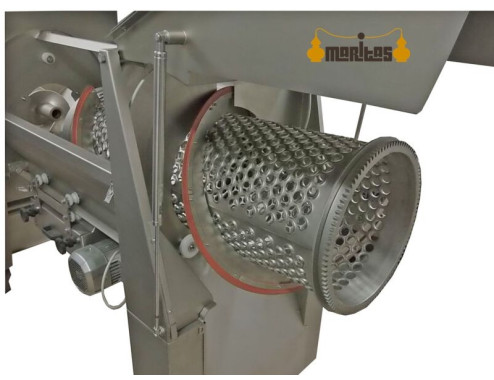

  • Professional tear-resistant centrifugal net in stainless steel (or PVC on request) with 24 mm perforation with Ø 300 mm.
  • A pair of rubber rollers with adjustable 1.5 Kw motor and removable.
  • Rubber profile screw welded to the basket.

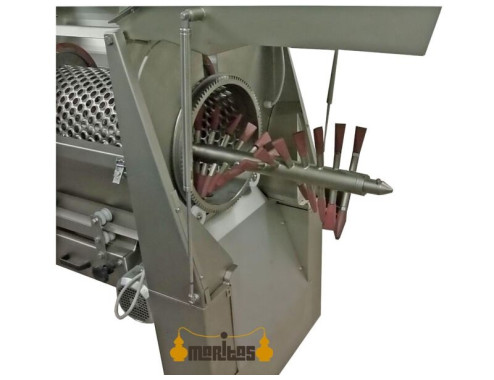

  • Destemming shaft with adjustable rubber cylinders.
  • 1.1 kW electronic speed variator for destemming unit.
  • Loading hopper with motorized screw and 0.37 kW speed variator.
  • Integrated automatic washing system (optional).
  • DIN 50 loading hopper liquid extraction filter.
  • Rear opening and removal of the net and destemming shaft.
  • Telescopic legs.

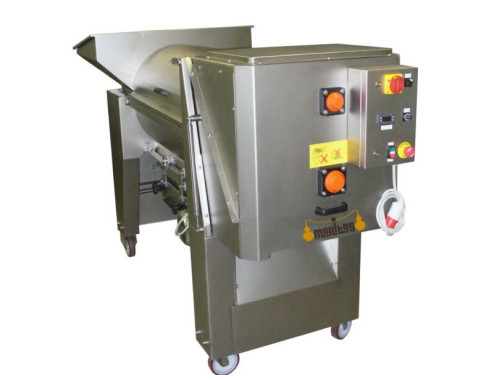

  • Stainless steel control panel with emergency stop.
  • Stainless steel safety guards.
  • CE accident prevention box.
  • Dimensions: 2010x830x1340/1740 mm.
  • Weight: 260 Kg.

Optional accessories:

• • Motorized collection tray with central auger (cod.0141), price 1150 euros.
  • Increased hopper for macrobin discharge (cod.016/100), price 550 euros.
  • Preparation for Industry 4.0 (cod.9125/R), price 3400 euros.
  • Washing system (cod.096), price 350 euros.
  • Polyethylene centrifugal net (cod.095), price 350 euros.

In short, the Crusher - Destemmer JOLLY 60 REVERSE is an ideal choice for quality wineries, whether the grape harvest is carried out manually or automatically.

In addition, it can be easily integrated into any grape reception and selection line.

This model is made to order, with a manufacturing time of 25-30 days.
