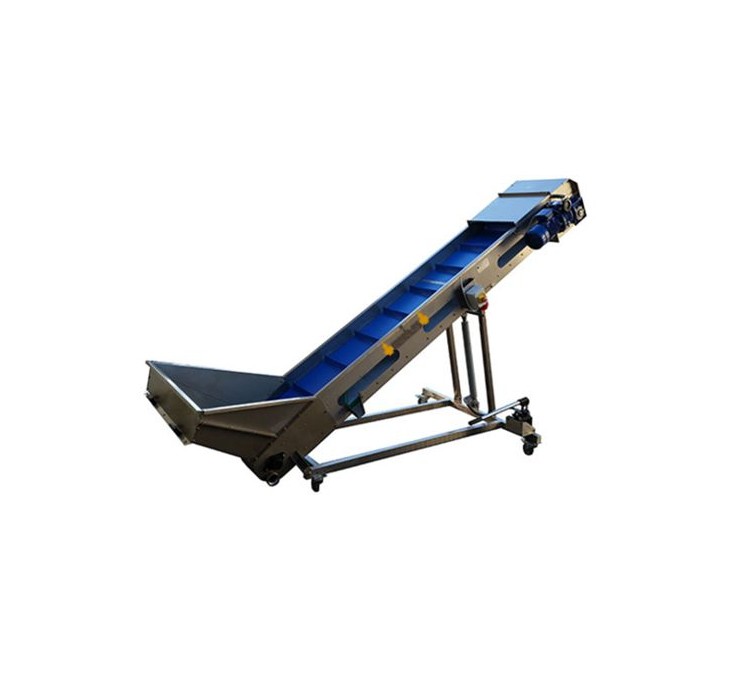

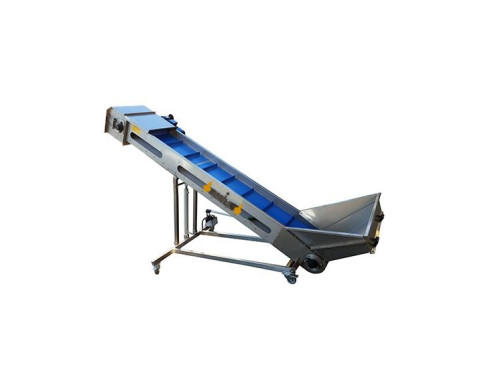

SC 3000 Belt Elevator

Introducing the "SC 3000 Belt Elevator," an efficient and versatile solution for your transportation needs.

Stainless steel belt elevator with a large 910x750 mm loading hopper (available in macrobin sizes upon request). Equipped with a stainless steel trolley adjustable in height by a hydraulic jack.

The belt is 450 mm wide and 3000 mm long.

It comes standard with a cleaning scraper and a pump connection for liquid extraction.

The machine is driven by a 1.5 kW mechanical variable speed drive.

Technical specifications:

• • 2 HP (1.5 kW) three-phase motor.
  • 1.5 kW mechanical variable speed drive.
  • Output: 2 to 10 tons/h.
  • AISI 304 stainless steel structure.
  • Double-deck Transilon food conveyor belt, 450 mm wide with 50 mm H curved sections.
  • Belt length: 3000 mm.
  • Stainless steel loading hopper with liquid recovery tank and side pump connection.
  • Belt cleaning scraper.

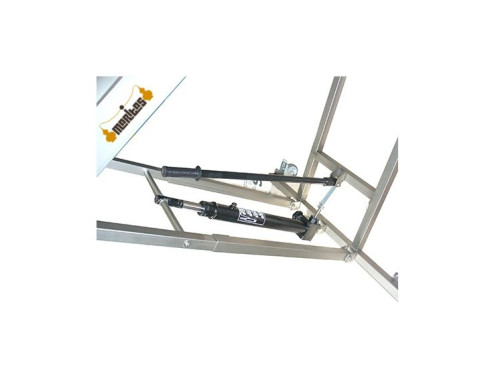

  • Raising/lowering system with hydraulic piston for inclinations 35° to 50°.
  • Stainless steel trolley with 4 wheels, height adjustable with a hydraulic jack.
  • Electrical system with emergency stop.
  • Hopper dimensions: 910 x 750 mm.
  • Loading height: 480/710 mm.
  • Unloading height: 1680/2190 mm.
  • Weight: 230 kg.

Optional add-ons:

• • Oversized hopper for macrobin unloading (cod.016/SC), price 950 euros.
  • Replacement of the mechanical speed variator with an electric one (cod.004/SC), price 1000 euros.

We manufacture this model to order, with an estimated manufacturing time of 25-30 days.
