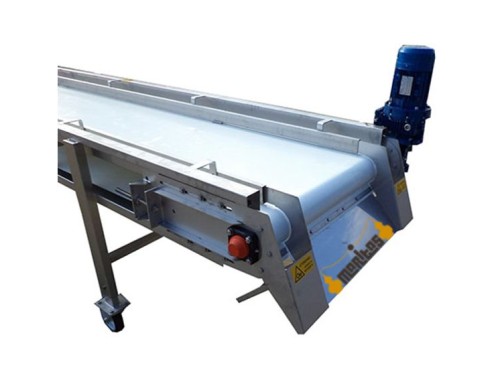

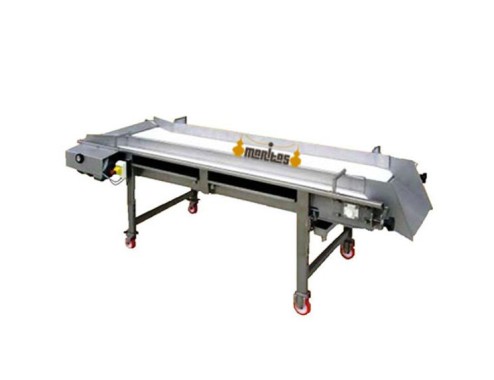

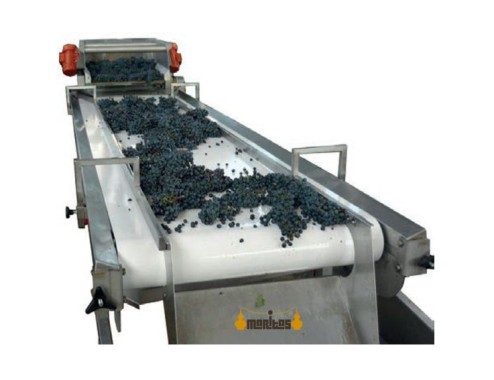

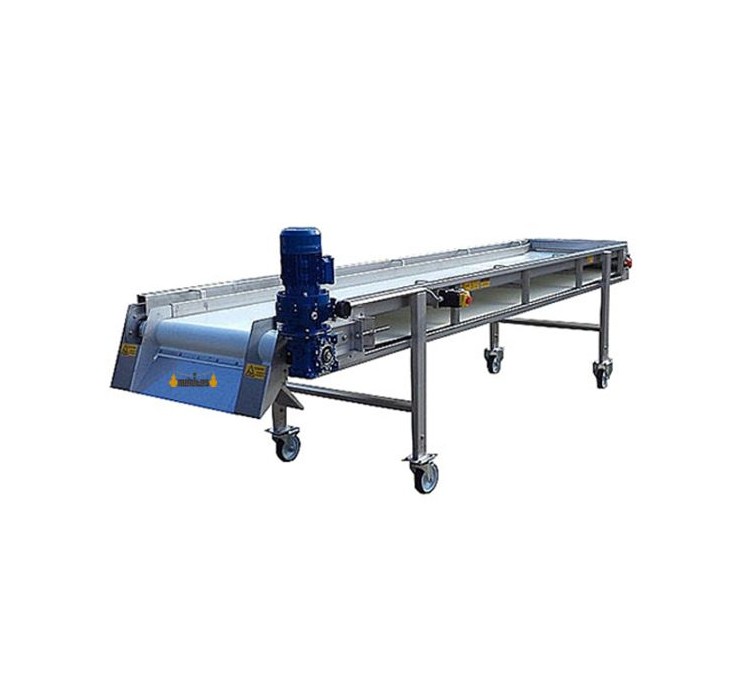

The NC selection belt 600 X 3500 mm is a high-quality product with outstanding features.
Made entirely of AISI 304 stainless steel, with a 600 mm wide food-grade transilon belt.
Includes telescopic legs and casters with locking brakes.
Product discharge hopper (optional) and two sorting channels.
Gear speed variator and emergency stop panel.
Technical specifications:
-
- Output: 2 to 10 tons/h.
- 0.75 kW three-phase gear speed variator.
- External belt width: 600 mm.
- Internal belt width: 400 mm.
- Tape length: 3500 mm.
- Belt height: 1080-1180 mm.
- AISI 304 stainless steel frame.
- Telescopic legs -/+ 50 mm.

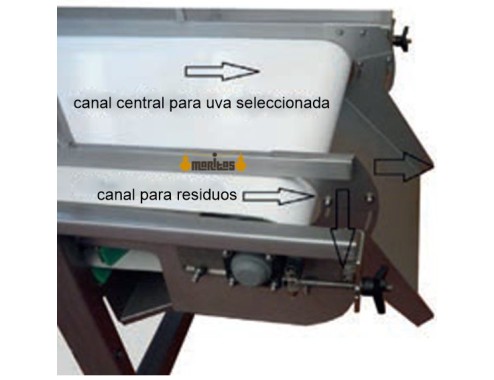

- Internal channels for transporting selected products.
- Product discharge hopper (optional).
- Electrical system with CE-certified emergency stop.
- 4 wheels with locking brakes.
- Cleaning scraper.
- Overall dimensions: 3700x1000x1150 mm.
- Weight: 270 kg.
Optional accessories:
-
- Electronic speed controller (code 004-NC), price: 800 euros.
It is important to note that we manufacture this model upon request, so the estimated production time is 25-30 days.
