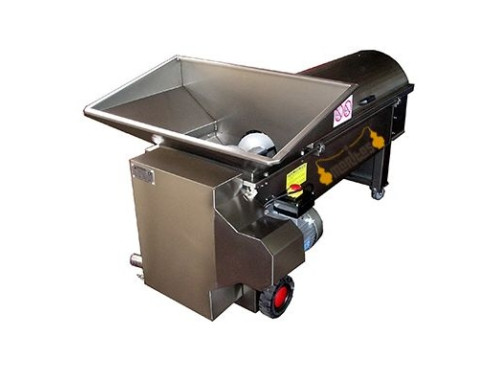

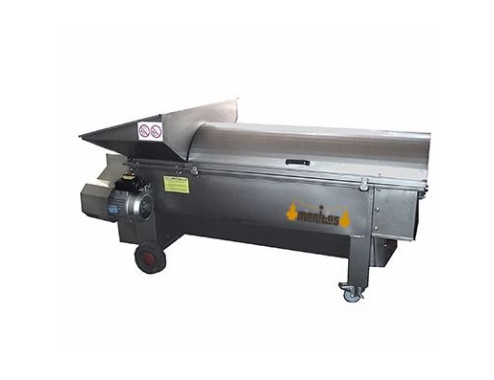

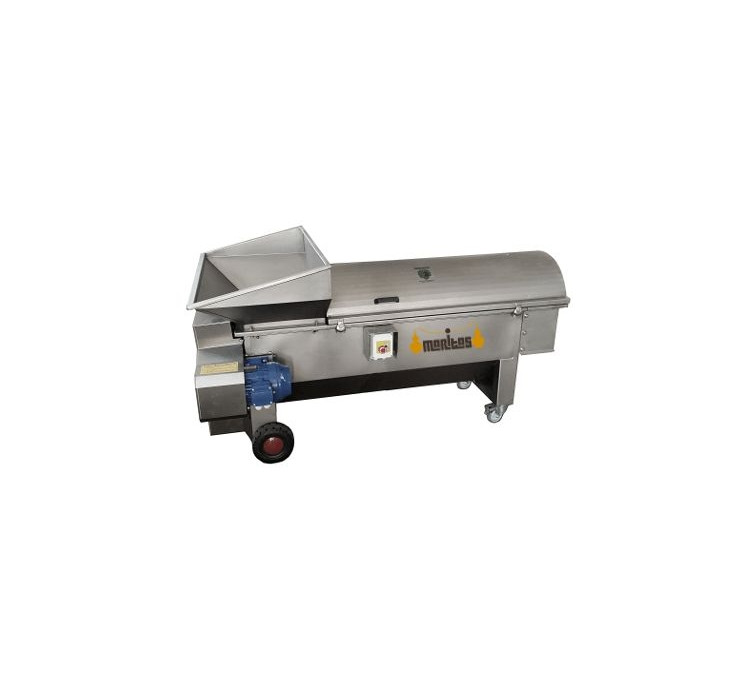

Crusher - Destemmer BETA 120

We present the Crusher - Destemmer BETA 120, a high quality machine designed to destem grapes efficiently and safely.

Destemmer made with centrifugal mesh of 500 mm diameter.

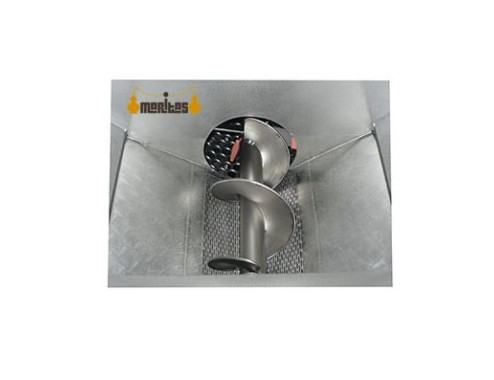

The rotation of the mesh and the destemmer shaft occurs in the same direction, avoiding tearing of the stems.

The destemmer shaft is supplied as standard with rubber-coated blades.

Loading hopper equipped with filter for liquid extraction.

Internal transmission parts made of stainless steel and support bearings in wear-resistant plastic material.

The centrifugal mesh and the pump are made of stainless steel.

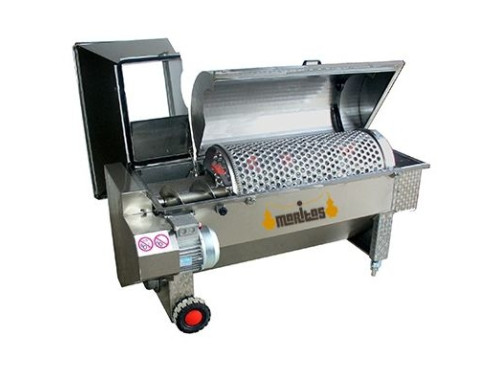

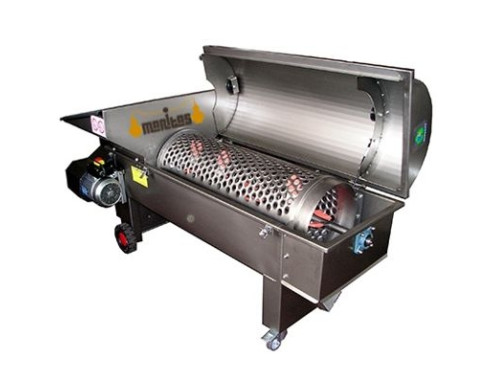

The destemmer can be fully opened centrally for easy and thorough cleaning.

On request, the machine can be supplied without a centrifugal pump, with an accessory to connect an external pump.

Technical characteristics (cod.352):

• • Output: 10000 - 12000 kg/h.
  • Three-phase motor of 5.5 hp (4 kw) and CE certification with emergency stop.
  • 500 rpm rotating shaft.
  • Destemmer shaft with rubber blades.
  • Stainless steel centrifugal pump Ø 60 mm.
  • CE accident prevention box.
  • 4 wheels with locking brakes.
  • Stainless steel safety guards.
  • Centrifugal mesh Ø 500 mm.
  • Embedded stainless steel destemming net.
  • Dimensions: 2000x1100x1180 mm.
  • Weight: 230 kg.

Optional accessories:

• • ADDITIONAL internal pyramidal grid safety protection (already included in the machine as standard, cod.006), price 185 euros.
  • Stainless steel flange with Garolla 80-60 conical connection to replace centrifugal pump (cod.353), price 30 euros.

In summary, the Crusher - Destemmer BETA 120 is a high-quality machine made with a centrifugal net with a diameter of 500 mm.

Entirely made of stainless steel and with a CE accident prevention box, this crusher meets the highest safety and quality standards.

Please note that this model is made to order, with a manufacturing time of 25-30 days.
