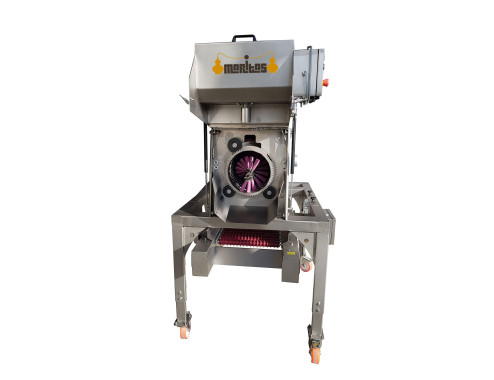

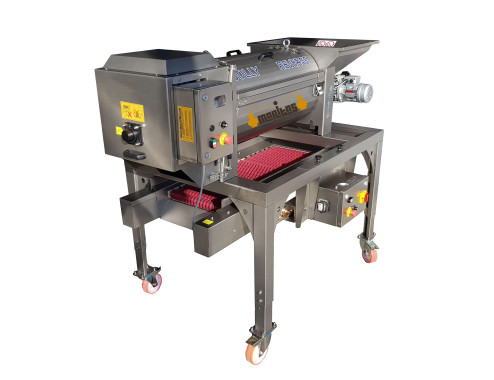

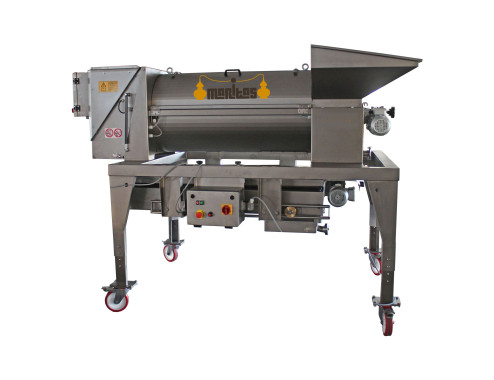

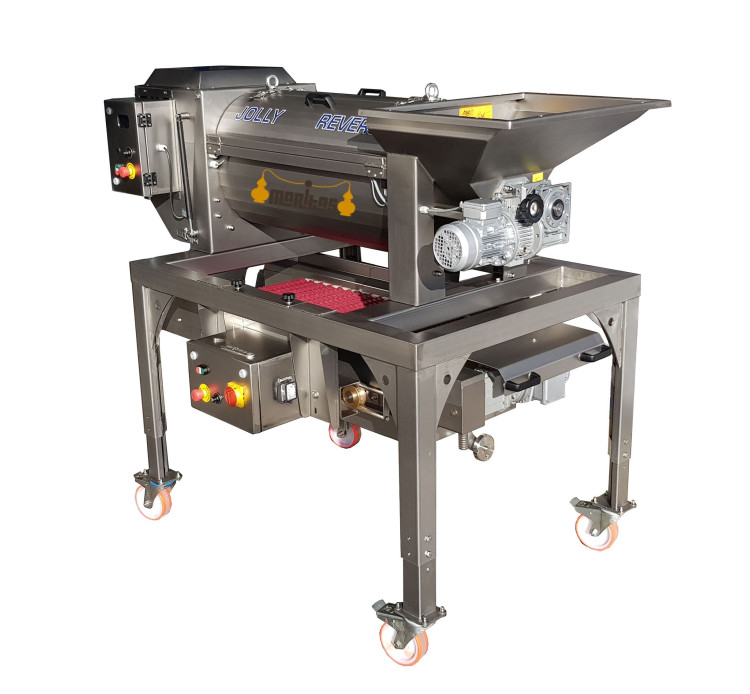

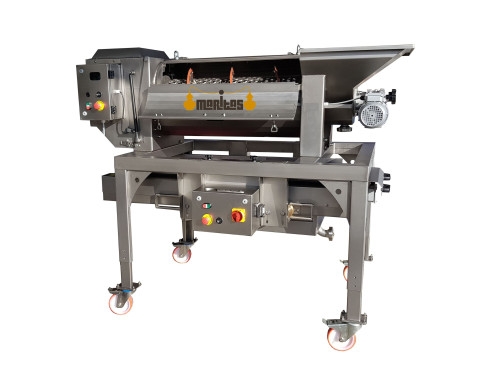

Crusher - Destemmer JOLLY 100 REVERSE with automatic sorting table

We present the Crusher - Destemmer JOLLY 100 REVERSE with automatic sorting table, a high-quality equipment designed for wineries seeking to obtain the best results in winemaking.

Gentle pressing is carried out with adjustable and removable rubber rollers and with independent motorization.

Destemming net with a diameter of 400 mm and a length of 1200 mm, made of tear-resistant pressed sheet metal.

The net is equipped with the exclusive rubber drag system.

Technical characteristics (cod.821):

Structure: built entirely in AISI 304 stainless steel, it is composed of a destemming module and a selection module, connected by the height-adjustable support frame.

Destemmer - crusher:

• • Equipped with a loading hopper with a dosing auger driven by a speed variator.
  • The hopper is equipped with a filter for liquid extraction and a DIN 50 extraction connection.
  • The 400 mm diameter destemming net is built entirely in pressed stainless steel, with an anti-tear system for the stem.
  • Standard perforation diameter 24, available on request from 18 to 32.
  • Rubber grape conveyor auger installed as standard on the destemming net.
  • Inner shaft with adjustable cylinders arranged in a double helix.

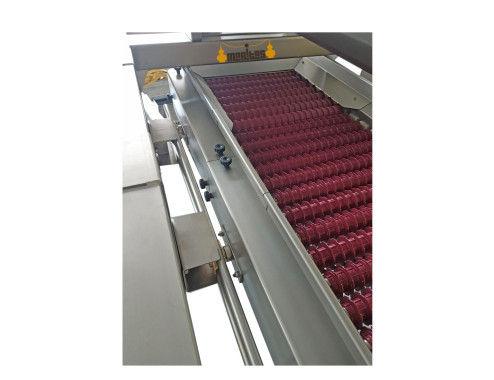

Automatic selection and cleaning table:

• • With adjustable nylon rollers.
  • It is equipped with a liquid collection tank, with removable internal grid.
  • The structure is installed on the support frame and equipped with sliding wheels for easy adjustment and for easy cleaning and maintenance.
  • The support frame is made of stainless steel sheet, with telescopic legs to easily adapt it to grape transport solutions both in bins and with elevators or transfer pumps.

Dimensions:

• • Loading hopper with central auger with rounded profile dimensions: 770X580 mm.
  • Liquid discharge connection in loading hopper and selection collection tank, DIN 50.
  • Destemming net diameter 400, 24 mm circular holes.
  • Maximum loading height from the ground 1950 mm (maximum height without container).
  • Unloading height: maximum height under selection group 970 mm.

Motorization:

• • There is a centralized control panel from which both the destemming and selection modules can be controlled.
  • The destemmer is equipped with an independent variable speed controller to regulate the hopper loading capacity. Power 0.5 KW.
  • The destemming unit is equipped with a 1.8 kW electronic speed controller with external potentiometer and revolution display.
  • Rotation speed: variable from 400-650 rpm.

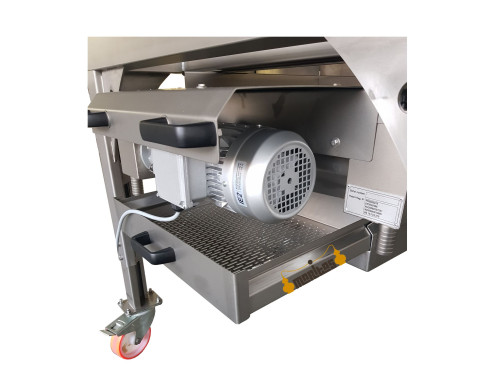

  • The selection group is equipped with an independent gear motor controlled by a 1.5 KW electronic speed controller.
  • Central electrical system in IP 65 stainless steel box, designed to feed an external roller group.

Cleaning:

• • The body of the machine can be opened centrally by means of double side doors.
  • The motor group is opened by means of two gas pistons and allows the rapid removal of both the destemmer shaft and the destemmer net.
  • The selection group can be easily removed by acting on the sliding wheels and is equipped with a safety valve to discharge the accumulated during washing.
  • All parts subject to greater stress and rotation are equipped with quick lubrication connections.

Equipment: adjustment key and stainless steel safety guard.

Motor: 5.4 kw.

Production: 7000 - 10000 kg/h.

Dimensions: 2600x1250x2250/1980 mm.

Weight: 610 kg.

Optional accessories:

• • Motorized roller group for installation under the automatic sorting table (cod.831), price 3000 euros.
  • Motorized waste discharge (cod.823), price 2500 euros.
  • Roller sorting table on frame with maximum capacity of 7 tons/h (cod.824), price 16800 euros.
  • Roller sorting table on frame with maximum capacity of 10 tons/h (cod.825), price 20700 euros.

It should be noted that this model is made to order, with an estimated manufacturing time of 25-30 days.
