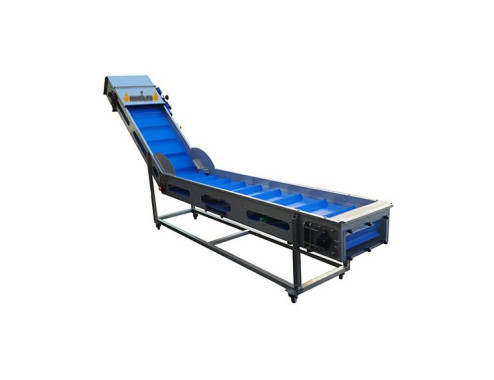

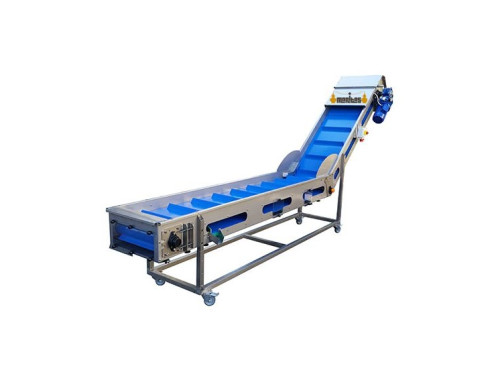

TC Sorting and Loading Belt

Introducing the "TC Sorting and Loading Belt," a high-quality, high-performance product.

Sorting and loading belt, designed for initial harvest sorting and simultaneous loading into a destemmer-crusher, achieving cost savings and reducing winery space.

It is made entirely of stainless steel, with telescopic legs and a PVC belt with a double anti-mold sheath, featuring a pyramidal profile for improved handling and loading.

The usable work surface width is 600 mm, with H50 pallets for transporting destemmed grapes.

A stainless steel loading hopper of different sizes is available upon request.

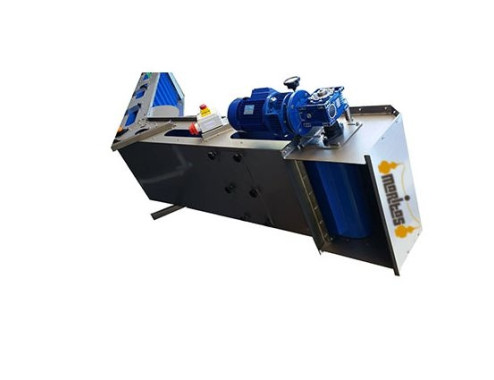

Includes a 1.5 kW mechanical speed variator.

Technical specifications:

• • Performance: 2-10 tons/h.
  • 1.5 kW three-phase motor.
  • Mechanical variable speed drive.
  • Sorting belt length: 3000 mm.
  • Elevator length: 1600 mm.
  • Belt height: 800-1050 mm.
  • Material discharge height: 1870-2000 mm.

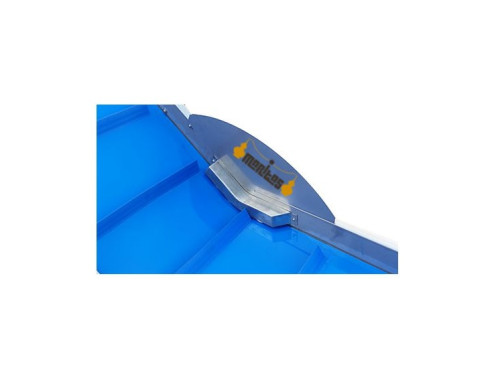

  • Double-coated transilon belt, usable width 600 mm, 40 mm H sections, double PVC-coated belt, and stainless steel coupling hinge.
  • AISI 304 stainless steel structure.
  • Telescopic legs with four 100 mm diameter stainless steel wheels.
  • Electrical system with emergency stop.

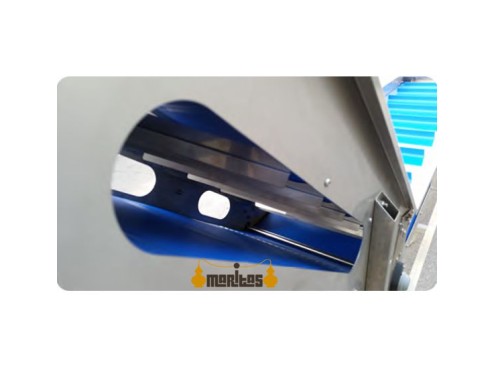

  • Easy cleaning system with inspection doors.

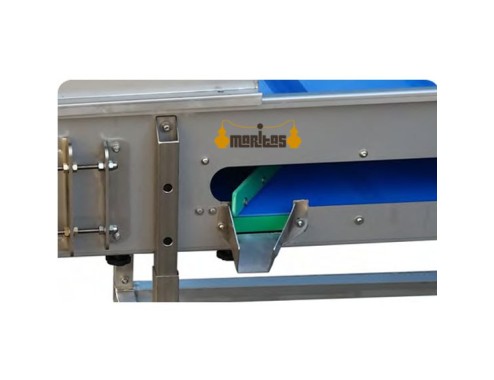

  • Scraper and anti-liquid retention structure.

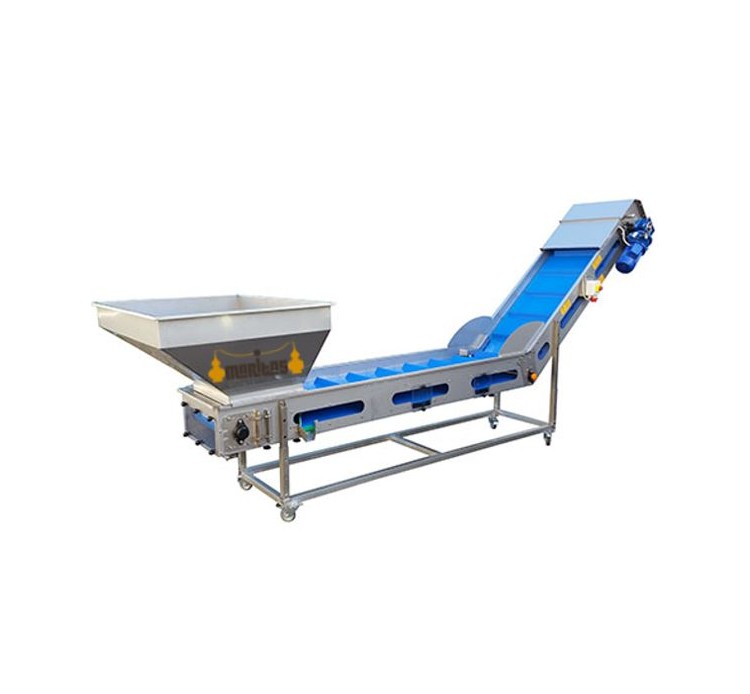

  • Stainless steel loading hopper.
  • Overall dimensions: 4000 x 800 x 2500 mm.
  • Weight: 230 kg.

Optional add-ons:

• • Three-phase or single-phase electronic speed variator (cod.004/TC), price 1000 euros.
  • Macrobin unloading hopper size 1300 x 1100 mm (cod.016/TC), price 1000 euros.

We manufacture this model upon request, and the estimated production time is 25-30 days.
