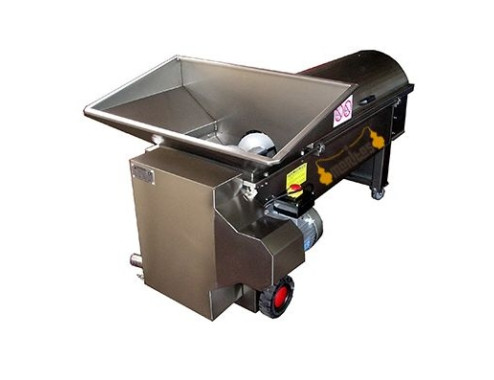

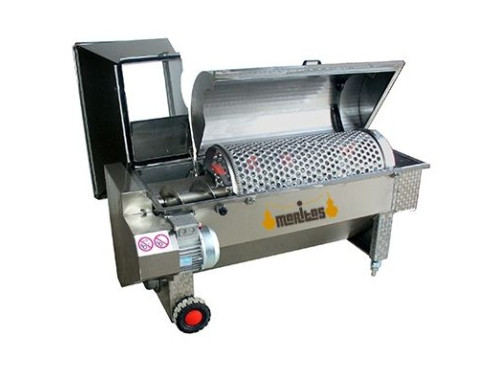

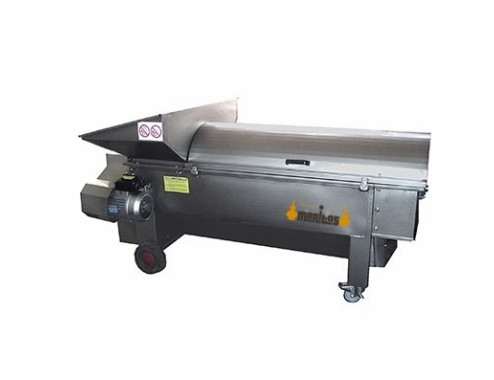

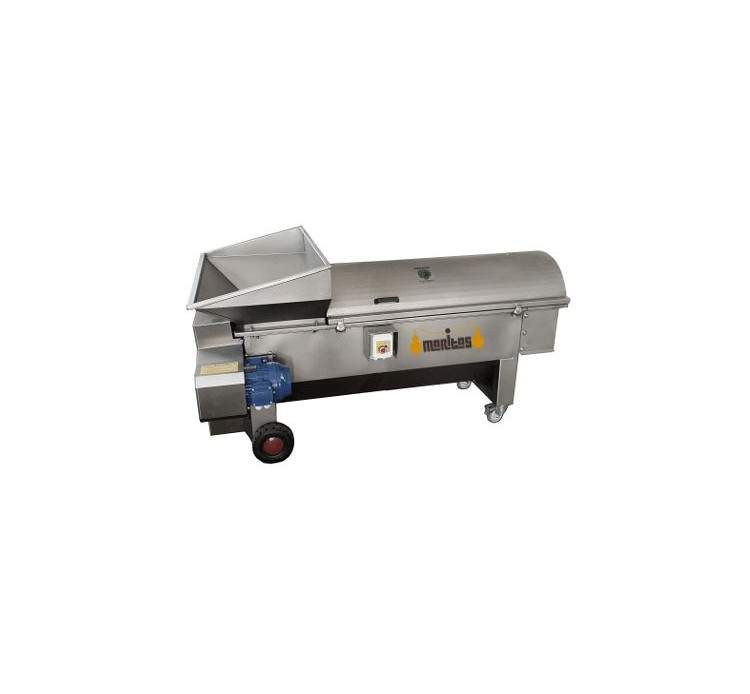

Crusher - Destemmer BETA 60

We present the Crusher - Destemmer BETA 60, a machine designed to provide an efficient and safe process in the extraction of liquids from fruits and grapes.

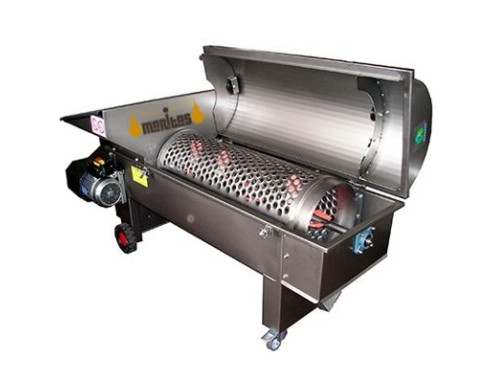

Destemmer made with centrifugal mesh of 300 mm diameter.

The rotation of the mesh and the destemmer shaft occurs in the same direction, avoiding tearing of the stems.

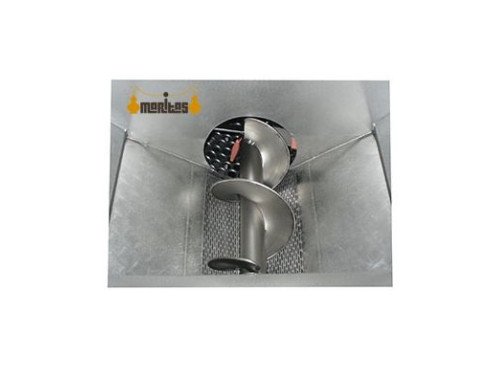

The destemmer shaft is supplied as standard with rubber-coated blades.

Loading hopper equipped with filter for liquid extraction.

Internal transmission parts made of stainless steel and support bearings in wear-resistant plastic material.

The centrifugal mesh and the pump are made of stainless steel.

The destemmer can be fully opened centrally for easy and thorough cleaning.

On request, the machine can be supplied without a centrifugal pump, with an accessory to connect an external pump.

Technical characteristics (cod.332):

• • Output: 5000 - 6000 kg/h.
  • 3 hp (2.2 kw) CE-certified motor with emergency stop.
  • 500 rpm rotating shaft.
  • Destemmer shaft with rubber blades.
  • Stainless steel centrifugal pump Ø 60 mm.
  • CE accident prevention box.
  • 4 wheels with locking brakes.
  • Stainless steel safety guards.
  • Centrifugal mesh Ø 300 mm.
  • Embedded stainless steel destemming net (optional).
  • Dimensions: 1650x1050x1100mm.
  • Weight: 160 kg.

Optional accessories:

• • ADDITIONAL internal pyramidal grid safety protection (already included in the machine as standard, cod.006), price 185 euros.
  • Stainless steel flange with Garolla 80-60 conical connection to replace centrifugal pump (cod.353), price 30 euros.

The Crusher - Destemmer BETA 60 is made to order, with an estimated manufacturing time of 25-30 days.

In short, this destemmer stands out for its 300 mm diameter centrifugal net, its construction entirely in stainless steel and its CE accident prevention box.

If you are looking for an efficient and safe machine for the destemming process, this model is the ideal choice.
