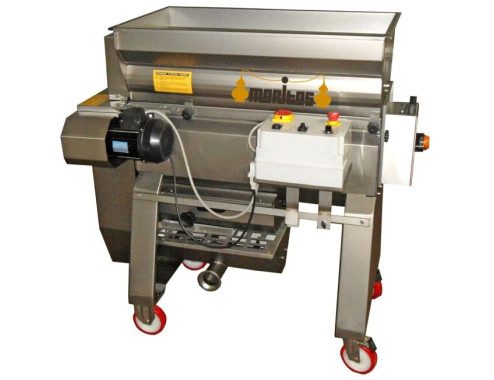

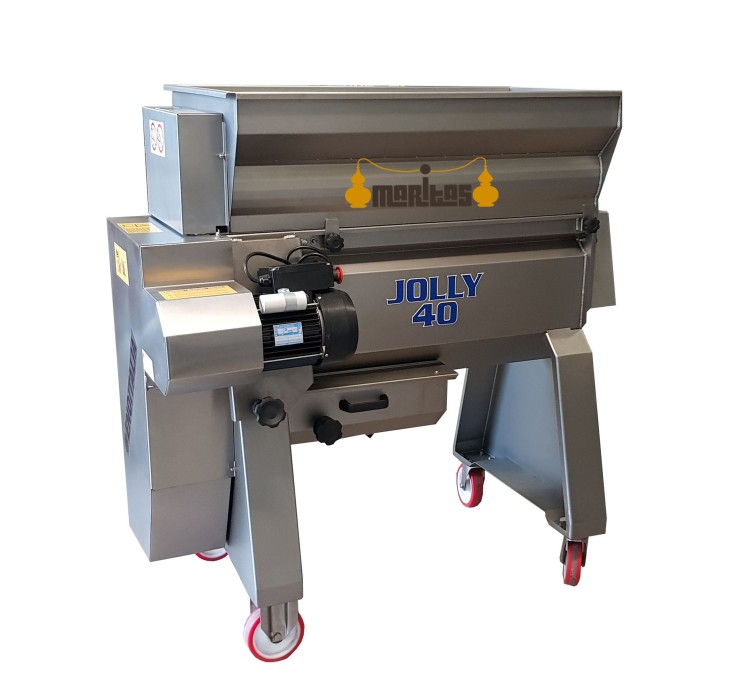

Crusher - Destemmer JOLLY 40 MV

We present the Crusher - Destemmer JOLLY 40 MV, a professional option with a destemming net with an anti-tear surface finish.

Machine especially suitable for micro-wineries looking for high quality production.

Destemmer-crusher made entirely of stainless steel without transfer pump.

The destemming net is of professional type with an anti-tear surface finish.

The large loading hopper is equipped with a dosing screw that, on request, can be supplied with a protective rubber layer.

The destemming shaft is built with large rubber-coated blades. The roller group can be completely removed from the machine body to perform only the destemming.

It is also equipped with a handwheel to adjust the degree of pressing.

The machine is supplied as standard with a must collection tank, equipped with a central mixing screw and double lateral connection for connection to an external pump.

The collection tray is removable, allowing the installation of pumps equipped with a loading hopper.

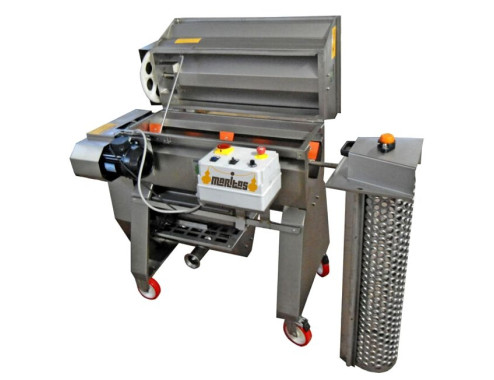

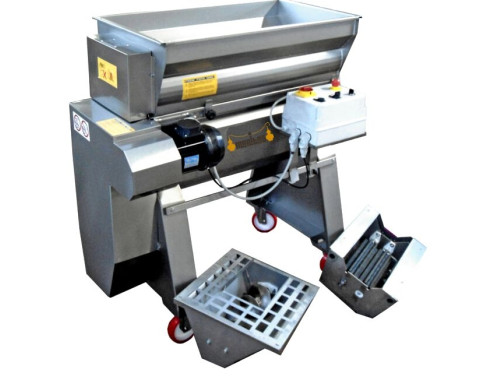

For cleaning it is possible to remove the internal net, open the machine centrally, remove both the roller group and the collection tray.

Technical characteristics (cod.390):

• • Output: 2000 - 4000 kg/h.
  • Single-phase or three-phase motor of 2.5 hp (1.8 kw) and CE certification with emergency stop.
  • Rotating shaft of 400-600 rpm.
  • Pump connection Ø 80-60 mm.
  • Semi-centrifugal anti-laceration mesh in stainless steel with 24 mm perforation.
  • A pair of adjustable and removable rubber rollers.
  • Must collection tray with feed screw removable, with double DIN80 side connection.
  • Destemmer shaft with rubber blades.
  • 4 swivel wheels with brake Ø 100 mm.
  • CE accident prevention box.
  • Stainless steel safety guards
  • Dimensions: 1390x800x1370 mm.
  • Weight: 160 kg.

Optional accessories:

• • Pulley speed variator (cod.001), price 530 euros.
  • Electronic speed variator (cod.004/40), price 1350 euros.
  • Stainless steel screw and food grade rubber coating (cod.007), price 170 euros.
  • Additional net with special perforation (cod.019/40), price 200 euros.

In short, the Crusher - Destemmer JOLLY 40 MV is a machine completely made of stainless steel, ideal for micro-wineries looking for high-quality productions.

Please note that we manufacture this model on request, and the estimated manufacturing time is 25-30 days.
