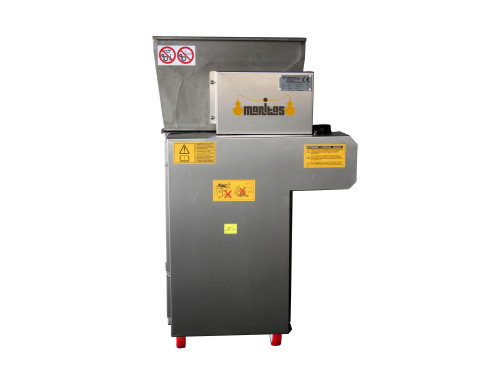

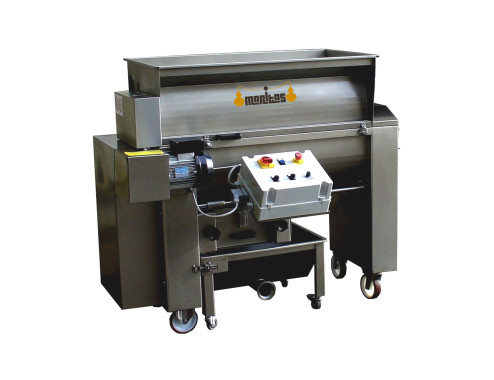

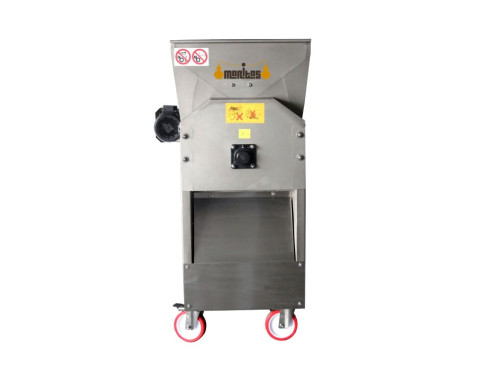

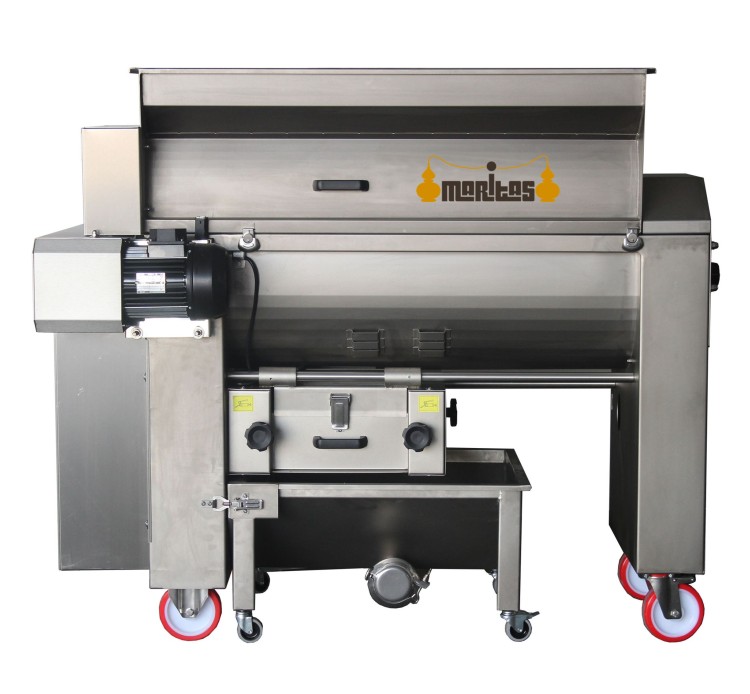

Crusher - Destemmer JOLLY 60 MV

The Crusher - Destemmer JOLLY 60 MV is a high-quality and high-performance equipment designed for medium and small wineries.

The machine is equipped with a large loading hopper with a central screw for dosing the product.

On request, the auger can be supplied with a protective rubber layer.

The destemming net is made of stainless steel with a diameter of 300 mm, equipped with stainless steel transmissions and not plastic. On request, the mesh can be perforated with diameters from 18 to 32 mm (the standard is 24 mm).

The surface finish is done with an anti-tear system, which smoothes the outer edges, eliminating the cutting problems typical of sheet metal mesh. Furthermore, the net is equipped with the exclusive "soft drag" rubber system that allows both a delicate transfer of the destemmed grapes towards the roller group and an efficient processing in the case of dried or dehydrated grapes.

The pressing is carried out by means of rounded profile rubber rollers. The roller group is adjustable in terms of processing intensity and can be easily excluded thanks to the sliding bar on bearings.

The destemming shaft is supplied as standard with large rubber-coated blades.

On request it is possible to install the shaft with adjustable rubber cylinders, arranged in a double helix.

The rotation speed is variable via the control panel equipped as standard with an electronic inverter.

The control panel is equipped with quick connectors and removable supports, to facilitate its removal during washing operations.

The collection tank is equipped with a central mixing screw and a double lateral connection for the pump.

It is also mounted on 4 wheels to facilitate installation and removal. As an alternative to the collection tray, it is possible to install any pomace pump, such as Gamma M100 or Gamma 80.

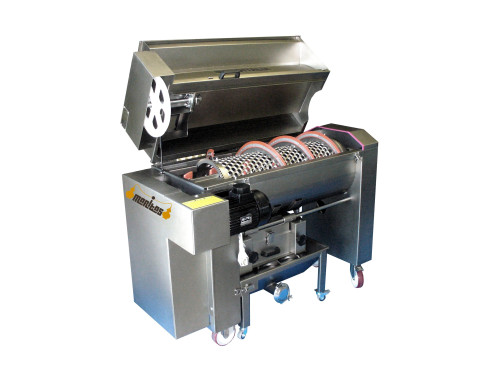

For cleaning, the machine can be opened centrally, removing both the net and the destemmer shaft.

The machine body has no stagnation points for processing residues.

Technical characteristics (cod.391):

• • Output: 4000 - 6000 kg/h.
  • Single-phase or three-phase motor of 2.25 hp (1.6 kw).
  • Removable control panel with emergency stop.
  • Electronic speed variator.
  • Rotating shaft of 400-600 rpm.
  • Pump connection Ø 80-60 mm.
  • Semi-centrifugal anti-laceration mesh in stainless steel with 24 mm perforation and a Ø of 300 mm.
  • Destemmer shaft with rubber blades.
  • A pair of adjustable and removable rubber rollers.
  • 4 wheels Ø 150 mm.
  • Central opening and removal of the net and destemming shaft.
  • CE accident prevention box.
  • Stainless steel safety guards
  • Dimensions: 1600x840x1370 mm.
  • Weight: 180 kg.

Optional accessories:

• • Collector tray with central auger, cardan transmission and double DIN 80 pump connection (cod.014-60), price 600 euros.
  • Destemmer shaft with adjustable cylindrical blades (cod.003-60), price 325 euros.
  • Increased hopper for macrobin discharge (cod.016-60), price 500 euros.
  • Stainless steel screw with food grade rubber coating (cod.007), price 200 euros.
  • Additional net with special perforation (cod.019-60), price 810 euros.
  • Polyethylene centrifugal net (cod.095), price 350 euros.

Ideal for medium and small wineries, it adapts well to any type of strain and degree of ripeness of the grape.

It should be noted that this model is made to order, with a manufacturing time of 25-30 days.
