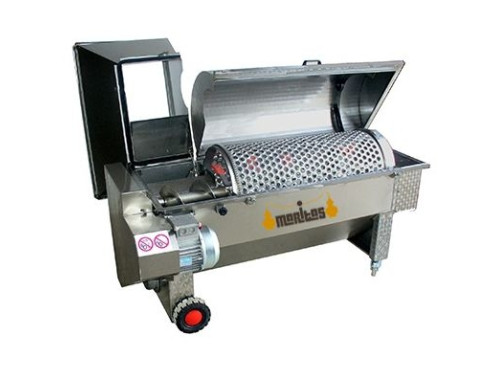

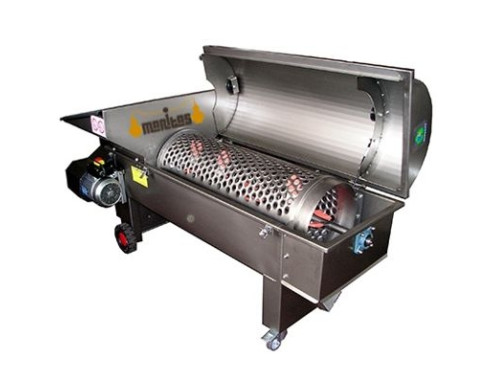

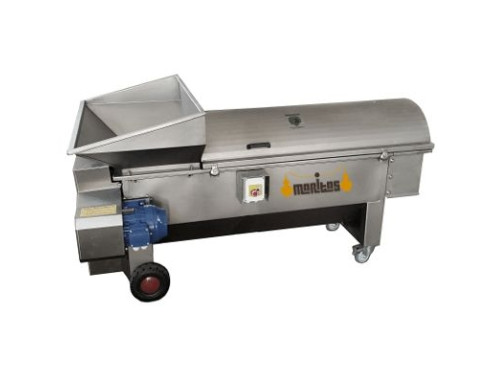

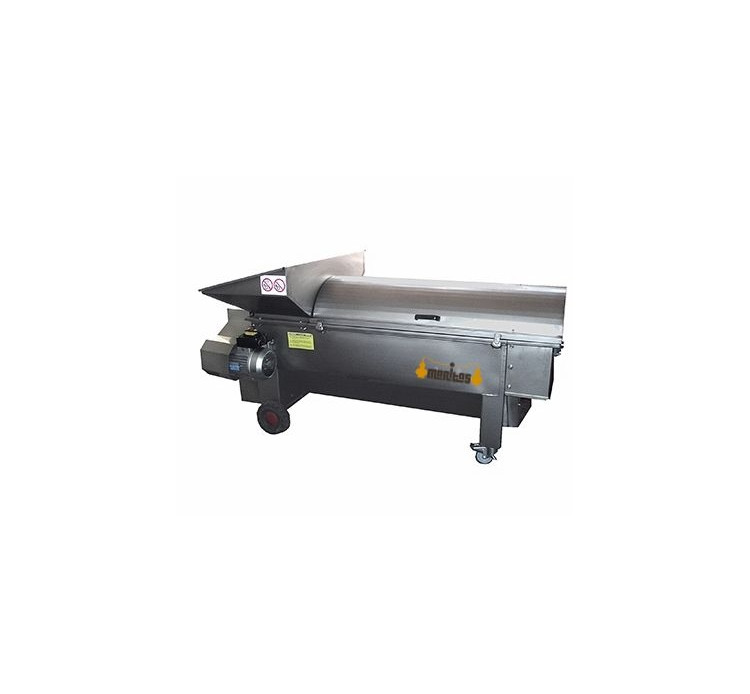

Crusher - Destemmer BETA 90

The Crusher - Destemmer BETA 90 is a high quality product designed to facilitate the destemming process in a safe and efficient manner.

Destemmer made with centrifugal mesh with a diameter of 400 mm.

The rotation of the mesh and the destemmer shaft occurs in the same direction, avoiding tearing of the stems.

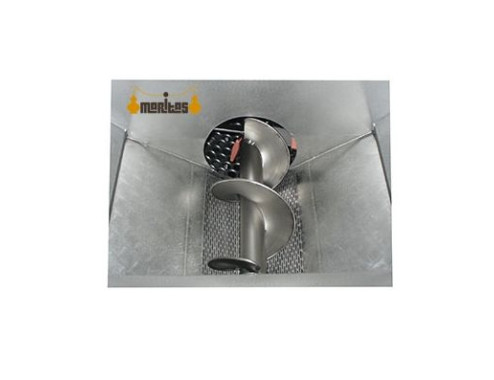

The destemmer shaft is supplied as standard with rubber-coated blades.

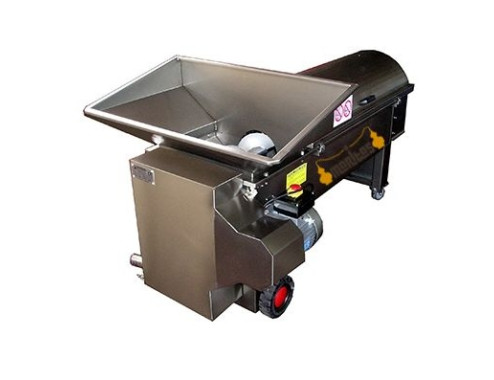

Loading hopper equipped with a filter for liquid extraction.

Internal transmission parts made of stainless steel and support bearings made of wear-resistant plastic material.

The centrifugal mesh and the pump are made of stainless steel.

The destemmer can be fully opened centrally for easy and thorough cleaning.

On request, the machine can be supplied without a centrifugal pump, with an accessory to connect an external pump.

Technical characteristics (cod.342):

• • Output: 8000 - 10000 kg/h.
  • Three-phase motor of 4 hp (3 kw) and CE certification with emergency stop.
  • 500 rpm rotating shaft.
  • Destemmer shaft with rubber blades.
  • Stainless steel centrifugal pump Ø 60 mm.
  • CE accident prevention box.
  • 4 wheels with locking brakes.
  • Stainless steel safety guards.
  • Centrifugal mesh Ø 400 mm.
  • Embedded stainless steel destemming net.
  • Dimensions: 1950x1100x1100mm.
  • Weight: 200 kg.

Optional accessories:

• • ADDITIONAL internal pyramidal grid safety protection (already included in the machine as standard, cod.006), price 185 euros.
  • Stainless steel flange with Garolla 80-60 conical connection to replace centrifugal pump (cod.353), price 30 euros.

It is important to note that this model is made to order, with a manufacturing time of 25-30 days.

The Crusher - Destemmer BETA 90 is a reliable and durable option for those looking for a high-quality destemming machine.
