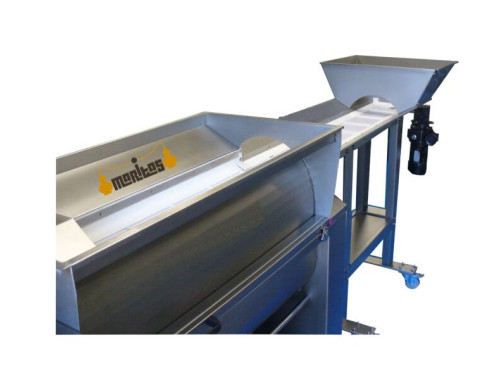

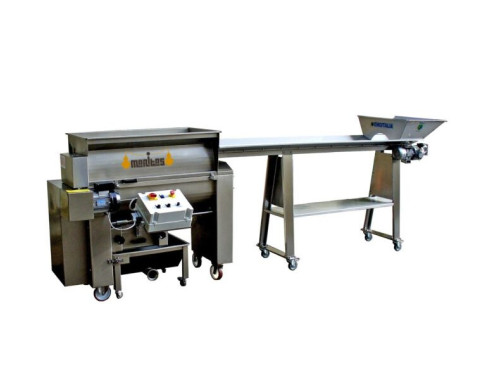

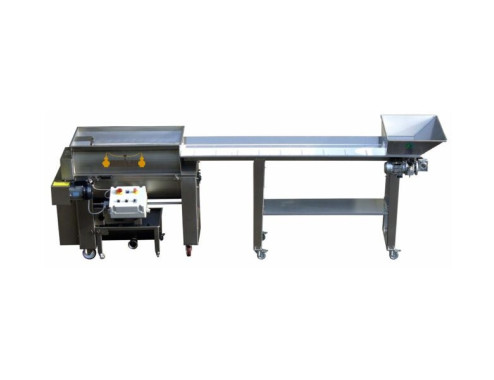

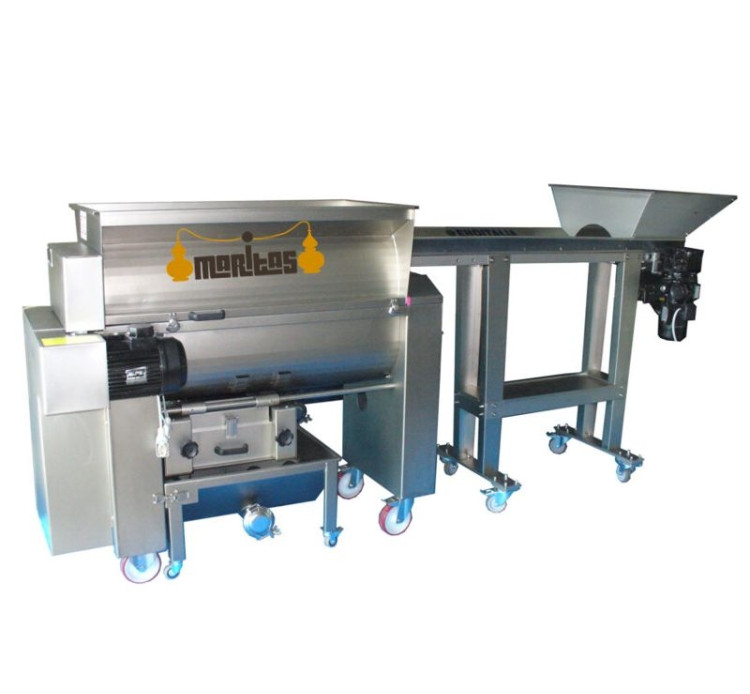

Crusher - Destemmer JOLLY 60 MV with integrated selection belt

We present the Crusher - Destemmer JOLLY 60 MV with integrated sorting belt, a revolutionary product that incorporates an innovative grape sorting system.

Innovative grape sorting system directly through the destemmer, eliminating the loading screw: tearing and crushing of the stems due to the rotation of the screw is reduced.

The sorting surface is 2500 mm, driven by a mechanical speed variator, and equipped with a loading hopper.

The sorting belt is independent in the speed regulation of the destemmer, and is completely removable from the machine thanks to the frame on rotating wheels.

Technical characteristics (cod.391+008):

• • Output: 4000-6000 kg/h.
  • 4 hp (3 kw) three-phase motor.
  • 2.2 kW electronic speed variator for destemming regulation.
  • 0.5 kW gear speed variator for sorting table.
  • 400-600 rpm rotating shaft.
  • Ø 80-60 mm pump connection.
  • Stainless steel anti-laceration centrifugal mesh, 24 mm perforation and Ø 300 mm.
  • Adjustable and removable rubber rollers.
  • Push-no-push system.
  • Destemming shaft with rubber blades (optional with adjustable cylinders).
  • Destemming grape collection tray.
  • Rubber profile on the feed auger.
  • Removable control panel with CE emergency stop.
  • Central opening and removal of the net and destemming shaft.
  • CE accident prevention box.
  • Stainless steel safety guards.
  • Loading hopper dimensions: 825x650 mm.
  • Overall dimensions: 4230x840x1470 mm.
  • Weight: 300 kg.

Optional accessories:

• • Collector tray with central auger, cardan transmission and double DIN 80 pump connection (cod.014-60), price 600 euros.
  • Destemming shaft with adjustable cylindrical blades (cod.003-60), price 325 euros.
  • Polyethylene centrifugal net (cod.095), price 350 euros.

In short, the Crusher - Destemmer JOLLY 60 MV with integrated selection belt is a complete product, which includes a crusher unit and an electronic speed variator.

This model is made to order, with an estimated manufacturing time of 25-30 days.
