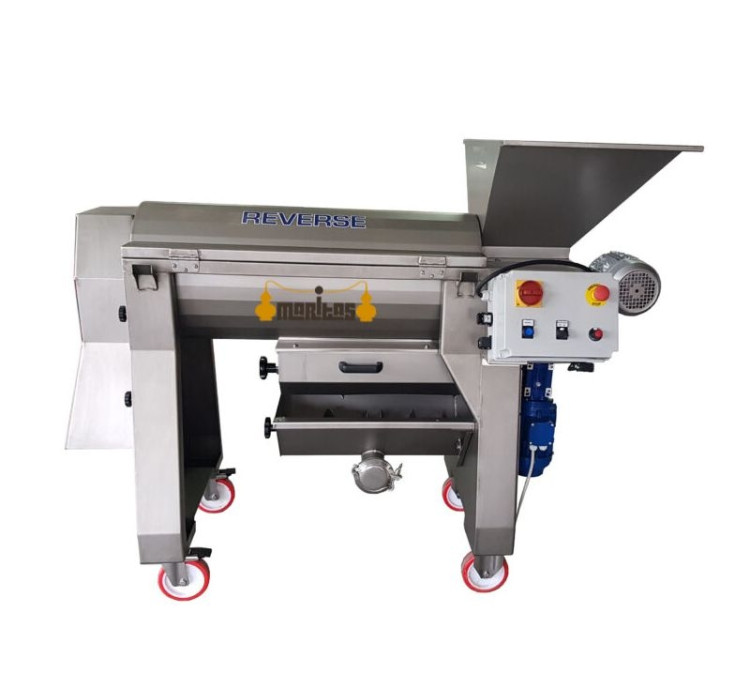

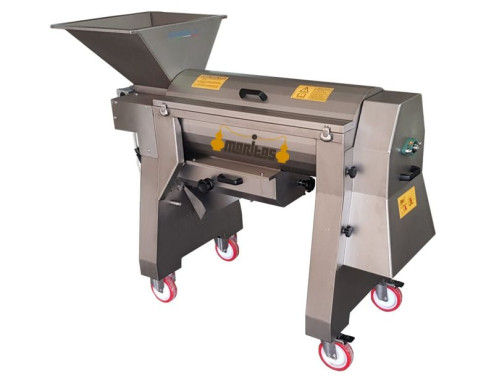

Crusher - Destemmer JOLLY 40 REVERSE

We present the Crusher - Destemmer JOLLY 40 REVERSE, a high quality machine designed to facilitate the process of destemming and crushing grapes.

Centrifugal destemmer-crusher ideal for small quality wineries, with manual harvesting.

Completely made of stainless steel, without centrifugal transfer pump.

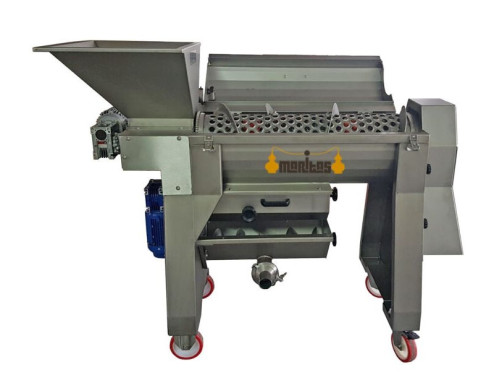

The machine is equipped with a centrifugal destemming net with anti-tear treatment in stainless steel.

The net is equipped with a stainless steel drag system.

The gentle pressing is carried out by means of adjustable and removable rubber rollers. The destemming shaft is supplied with rubber-coated blades as standard.

The machine is equipped with two independent motors.

The destemming speed is regulated by an electronic inverter.

The crushing unit and the collection tray are driven by a gear motor.

The machine is designed for the installation of a collection tank with double lateral connection and central homogenizing screw.

As an alternative to the collection tank, any type of pump with loading hopper can be installed, such as our elliptical rotor, single-screw and peristaltic pumps.

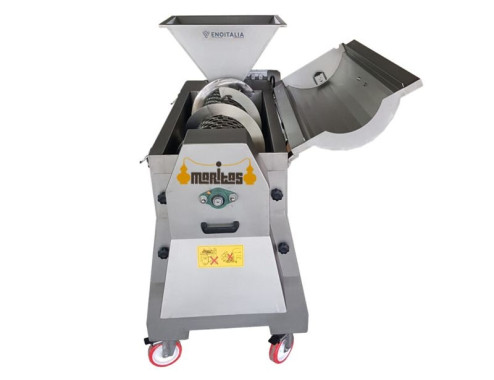

For cleaning operations, the machine can be completely opened centrally, with the possibility of removing both the tree and the destemming net.

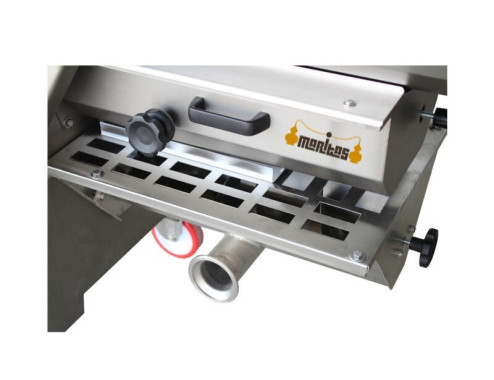

The roller assembly and the collection tray are completely removable.

Technical characteristics (cod.388):

• • Output: 2000 - 4000 kg/h.

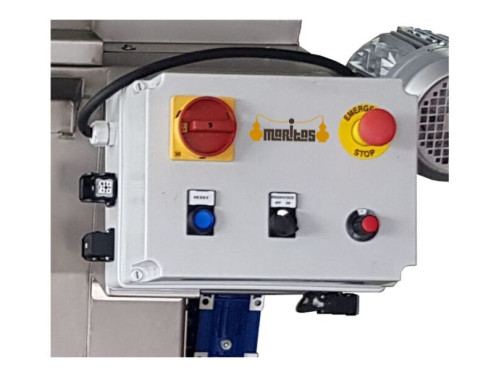

  • Single-phase or three-phase motor of 2.5 hp (1.8 kw) and CE certification with emergency stop.
  • 450-600 rpm rotating shaft.
  • Semi-centrifugal anti-laceration mesh in stainless steel with 24 mm perforation with Ø of 250 mm.
  • A pair of adjustable and removable rubber rollers.
  • Destemming shaft with rubber blades.
  • 1.1 kW electronic speed variator for destemming unit.
  • 0.75 kW gear motor for crushing unit.
  • 4 swivel wheels with brake.
  • Central opening and extraction of the net and destemming shaft.
  • CE accident prevention box.
  • Stainless steel safety guards.
  • Dimensions: 1800x880x1350 mm.
  • Weight: 180 kg.

Optional accessories:

• • Collection tank with central hopper, double DIN80 connection and cardan shaft (cod.014), price 550 euros.
  • Additional net with special perforation (cod.019/60), price 600 euros.
  • For single-phase motorization (panel separated from the body of the machine) (cod.3881), price 900 euros.

The Crusher - Destemmer JOLLY 40 REVERSE is ideal for small quality wineries that carry out manual harvesting.

This model is made to order, with an estimated manufacturing time of 25-30 days.
