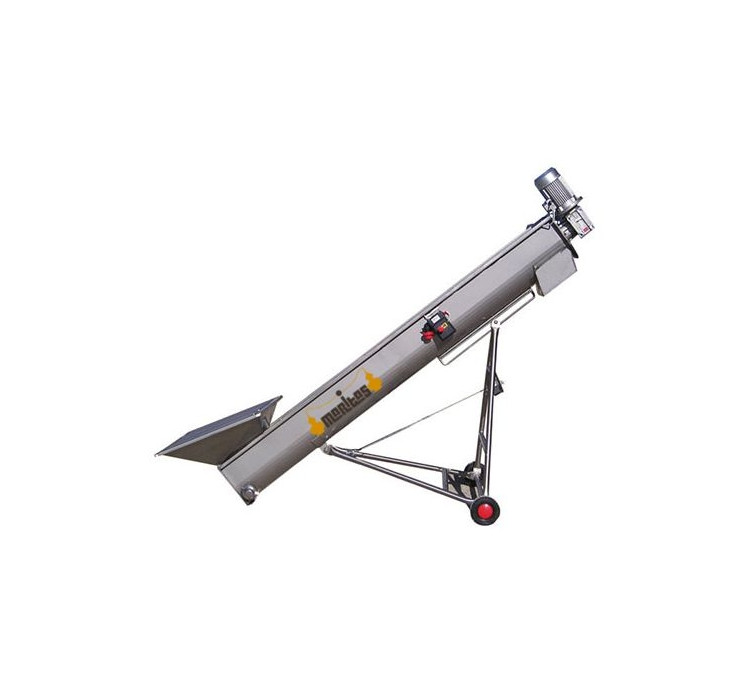

U-200 4-meter Screw Elevator

The U-200 4-meter screw elevator is ideal for gentle grape handling thanks to its low rotation speeds.

The low rotation speed and the possibility of equipping it with a variable speed drive allow for gentle handling of the grapes.

It includes a loading hopper with a side pump accessory for liquid recovery.

A height-adjustable enameled sheet metal trolley is supplied as standard.

Upon request, the trolley can be manufactured entirely in stainless steel.

Possibility of manufacturing the lift in longer lengths.

Technical specifications:

• • 2 HP (1.5 kW) three-phase motor.
  • Output: 2 to 10 tons/h.
  • Stainless steel auger Ø 200 mm and 4 meters long.

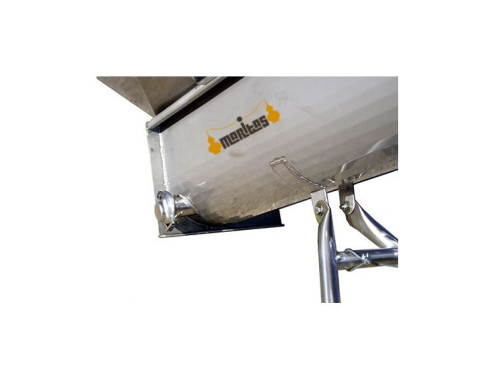

  • Stainless steel loading hopper with side connection for liquid recovery.
  • Removable cover for cleaning and inspection.
  • Winch system for adjusting discharge height.
  • Enameled sheet metal trolley (stainless steel upon request).

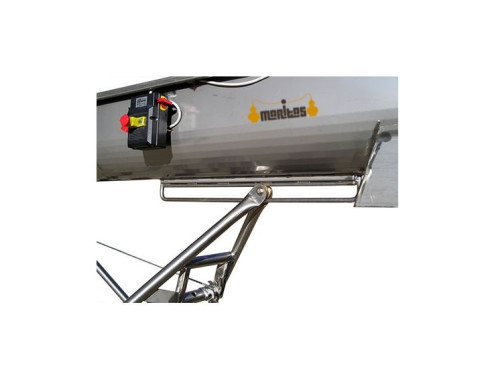

  • Electrical system compatible with CE emergency stop.
  • Loading height: 480/710 mm.
  • Discharge height: 1900/2500 mm.
  • Hopper dimensions: 650x720x900 mm.
  • Trolley dimensions: 1330x330x1450 mm.
  • Trolley weight: 35 kg.
  • Lift weight: 130 kg.

Optional accessories:

• • Mechanical speed variator (cod.427), price 550 euros.
  • Oversized hopper for macrobin unloading (cod.016/U), price 950 euros.

Please note that this model is made to order, with an estimated manufacturing time of 25-30 days.
