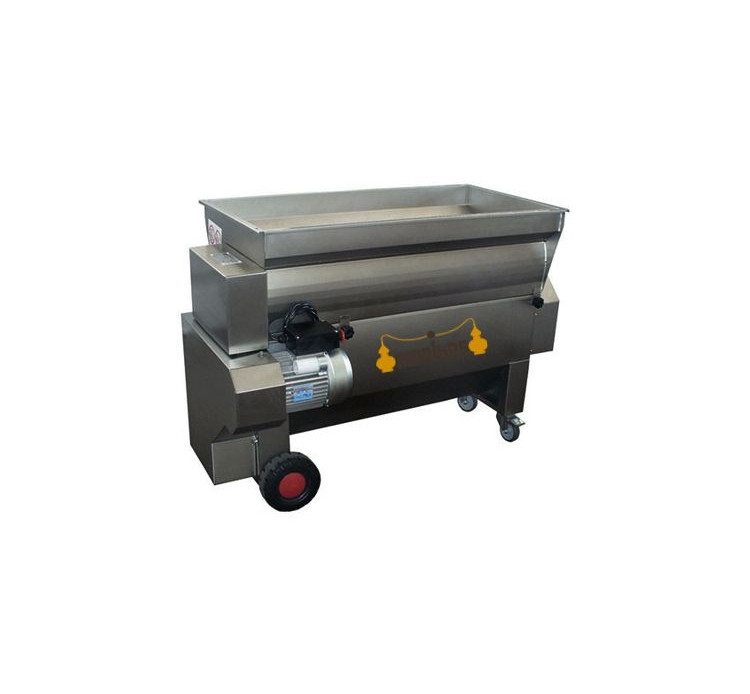

Crusher - Destemmer JOLLY 50A

We present the Crusher - Destemmer JOLLY 50A, a high quality machine designed to facilitate the destemming process safely and efficiently.

Destemmer made with 300mm diameter centrifugal mesh. The rotation of the net and the destemmer shaft occurs in the same direction, avoiding tearing of the stems.

The destemmer shaft is supplied as standard with rubber-coated blades.

Internal transmission parts made of stainless steel and support bearings made of wear-resistant plastic material.

The centrifugal net and the pump are made of stainless steel.

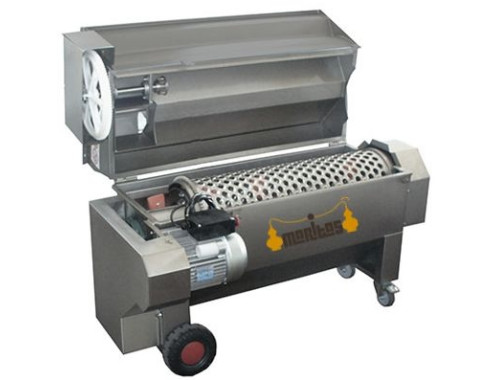

The destemmer can be fully opened centrally for easy and thorough cleaning.

Technical features (cod.322):

• • Output: 4500 - 5500 kg/h.
  • 3 hp (2.2 kw) CE certified motor with emergency stop.
  • 500 rpm rotating shaft.
  • Destemmer shaft with rubber blades.
  • Ø 60 mm stainless steel centrifugal pump.
  • CE accident prevention box.
  • 4 wheels with locking brakes.
  • Stainless steel safety guards.
  • Centrifugal mesh Ø 300 mm.
  • Embedded stainless steel destemming net (optional).

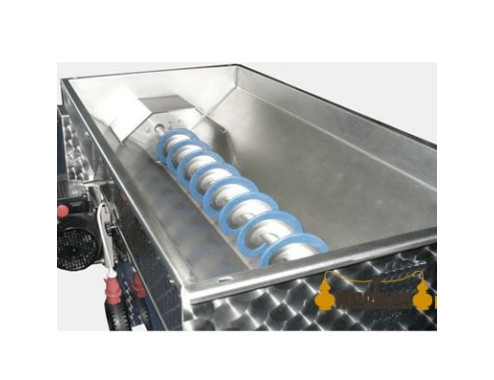

  • Food grade rubber loading hopper screw (optional).
  • Dimensions: 1500x800x970 mm.
  • Weight: 130 kg.

Optional accessories:

• • ADDITIONAL internal pyramidal grid safety guard (as standard included in the machine, cod.006), price 180 euros.
  • Stainless steel screw with food grade rubber coating (cod.007), price 130 euros.

Crusher - Destemmer JOLLY 50A is a destemming machine with a 300 mm diameter centrifugal net, completely made of stainless steel and with a CE accident prevention box to ensure safety during use.

It is worth mentioning that we manufacture this model on request, which implies a manufacturing time of approximately 25-30 days.
