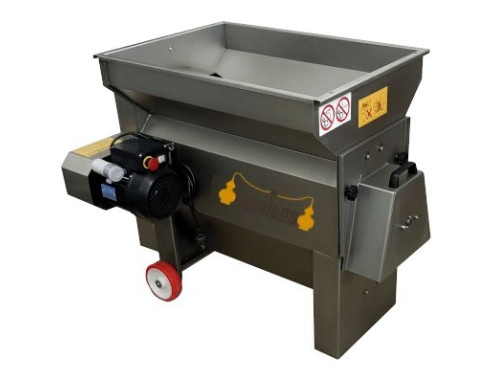

Crusher - Destemmer ARNO 25

We present the Crusher - Destemmer ARNO 25, a high quality machine designed to facilitate your maintenance and cleaning tasks.

Motorized destemmer equipped with centrifugal pump to transfer the must to the fermentation vessel.

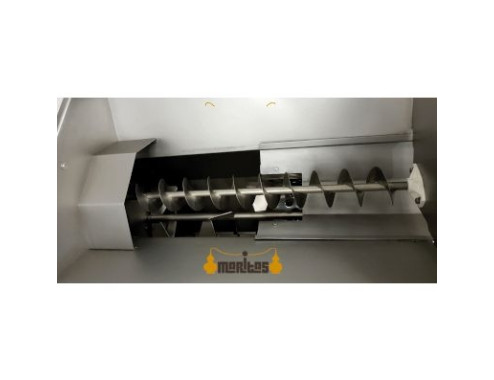

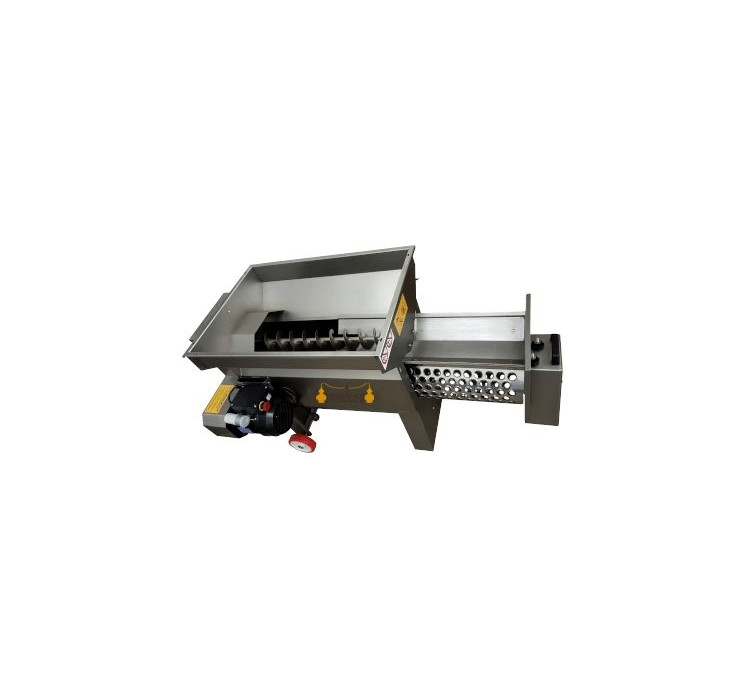

One of the outstanding features of this machine is its ability to open completely in a matter of seconds, allowing you to perform maintenance and cleaning operations quickly and easily.

Technical characteristics (cod.242):

• • Capacity of 3000 kg/h
  • 2.5 HP (1.8 kw) electric motor with starting capacitor and CE certification with emergency stop
  • Stainless steel centrifugal pump
  • Stainless steel destemmer net
  • Stainless steel safety guards
  • CE motor with emergency stop
  • 500 rpm rotating shaft
  • Pump with 60 mm diameter
  • Pump head with 15 horizontal and 5 vertical pumps
  • Dimensions: 1200 X 700 X 900 mm
  • Weight: 86 kg

Optional accessories:

• • Safety protection with internal pyramidal grid (mandatory for the issuance of the declaration of conformity, cod.006), price 130 euros.

In short, the Crusher - Destemmer ARNO 25 is a semi-centrifugal motorized destemmer, equipped with a centrifugal pump to transfer the must to the fermentation tank.

We manufacture this model on request, with a manufacturing time of 25-30 days.
