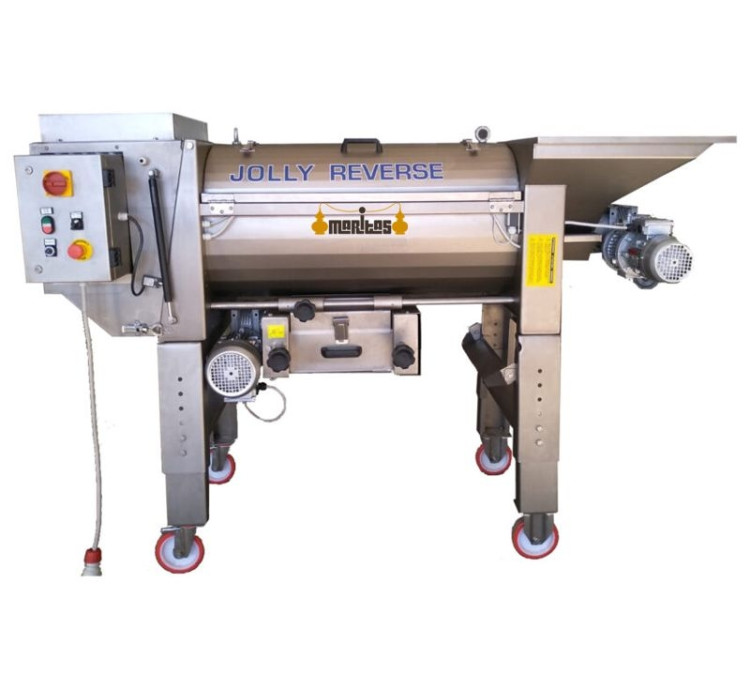

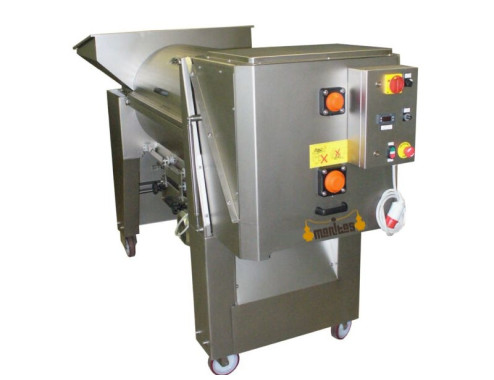

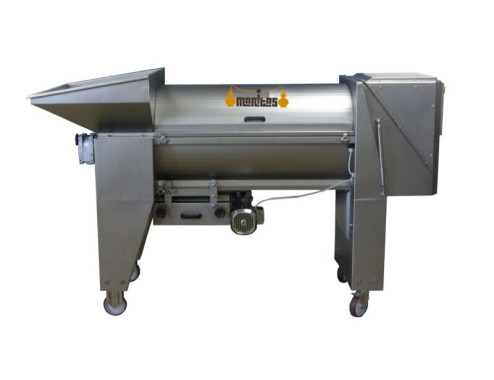

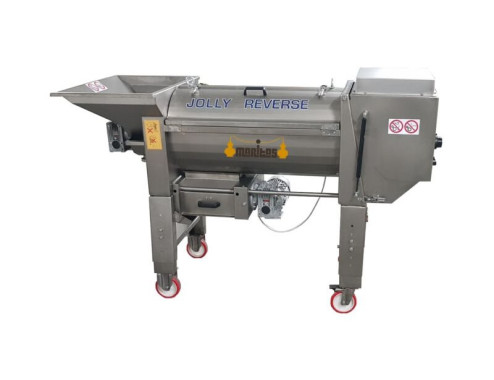

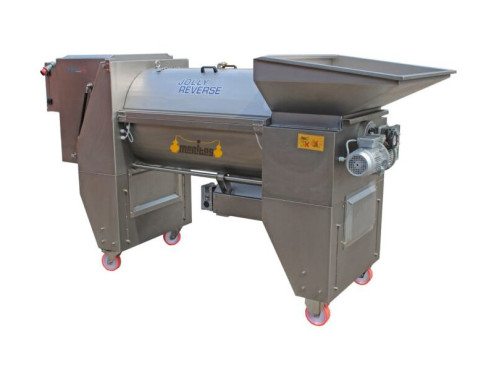

Crusher - Destemmer JOLLY 100 REVERSE

We present the Crusher - Destemmer JOLLY 100 REVERSE, a machine designed to perform gentle pressing using adjustable and removable rubber rollers with independent motorization.

Gentle pressing is performed with adjustable and removable rubber rollers and with independent motorization.

Destemming net with a diameter of 400 mm, made of anti-tear stamped sheet metal.

The net is equipped with the exclusive rubber drag system.

Telescopic support legs with height adjustment from 1530 to 1930 mm.

Loading hopper with independent motorization, equipped with a filter for liquid extraction.

Front opening system and tool-free disassembly of machinery.

Integrated washing systems.

Possibility of purchasing only the destemmer.

The JOLLY 100 REVERSE is equipped as standard with 3 motors: an electronic variator for the destemmer shaft and the centrifugal net; a mechanical variator for the loading hopper; a gear motor for the roller group.

On request, it is possible to equip the machine with an automatic roller sorting line integrated into the body of the machine, or equipped with a vibrating sorting table for manual sorting.

Technical characteristics (cod.394):

• • Output: 7000 - 12000 kg/h.
  • 5.5 hp (4 kw) motor.
  • 350-650 rpm rotating shaft.

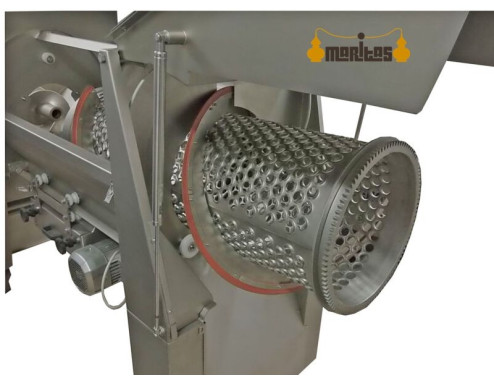

  • Professional tear-resistant stainless steel centrifugal net with 24 mm perforation with Ø 400 mm.
  • A pair of rubber rollers with adjustable 1.5 kW motor and removable.
  • Rubber profile screw welded to the basket.

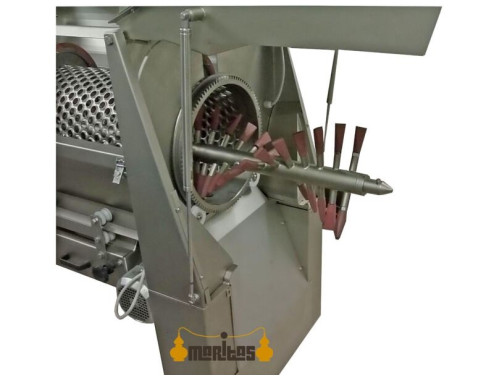

  • Destemming shaft with adjustable rubber cylinders.
  • 2.2 kW electronic speed variator for destemming unit.
  • Loading hopper with motorised screw and 0.37 kW speed variator.
  • Integrated automatic washing system.
  • DIN 50 liquid extraction filter from loading hopper.
  • Rear opening and removal of the net and destemming shaft.
  • Telescopic legs.
  • Stainless steel control panel with emergency stop.
  • Stainless steel safety guards.
  • CE accident prevention box.
  • Prepared for Industry 4.0.
  • Dimensions: 2600x1050x1530/1930 mm.
  • Weight: 380 Kg.

Optional accessories:

• • Motorized collection tray with central auger (cod.0141), price 1150 euros.
  • Large hopper for macrobin discharge (cod.016/100), price 550 euros.
  • Polyethylene centrifugal net (cod.9137), price 1100 euros.

In short, the Crusher - Destemmer JOLLY 100 REVERSE is an ideal choice for quality wineries, whether with manual or automatic harvesting, and can be easily integrated into any grape reception and selection line.

Please note that this model is made to order, and the estimated manufacturing time is 25-30 days.
