500 L Classic Welded Still COMPLETE SOLIDS

⚗️ 500 L Classic Welded Still COMPLETE SOLIDS

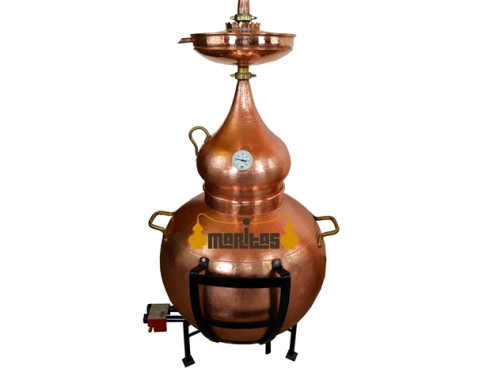

The 500 L Classic Welded Still COMPLETE SOLIDS is a large-capacity, high-performance handcrafted still specifically designed for the alcohol distillation of solid raw materials such as fruit, grape pomace, bagasse, cereals, mash and other high-density materials.

It combines the tradition of copper with complete equipment for carrying out both simple and rectification distillation efficiently, accurately and under controlled conditions.

⚒️ Craftsmanship and quality materials

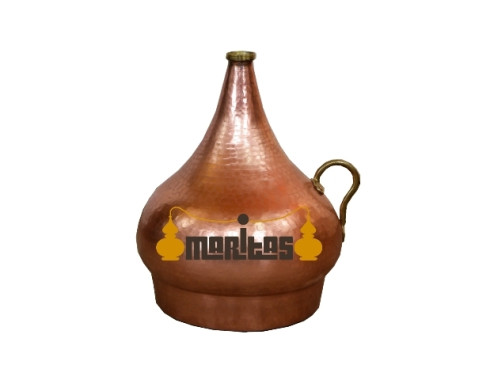

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

Its polished brass handles and nuts, together with the welded joints, provide a robust and durable construction, offering greater strength and durability than riveted joints.

🛡️ Designed for working with solids

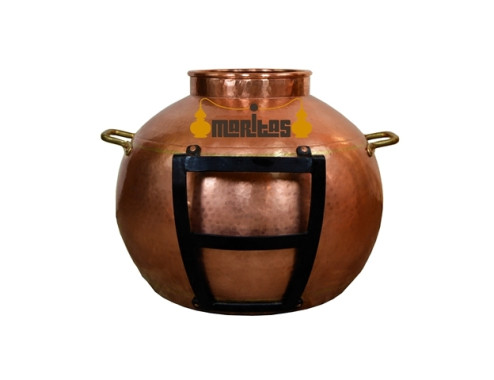

The boiler features protective iron bars that help protect the equipment and make it easier to turn over the remaining product during the distillation process.

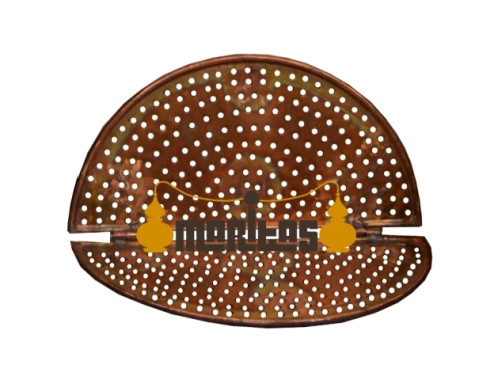

It also includes a separation grate that helps prevent solid materials from coming into direct contact with the bottom of the boiler.

🌡️ Precise distillation control

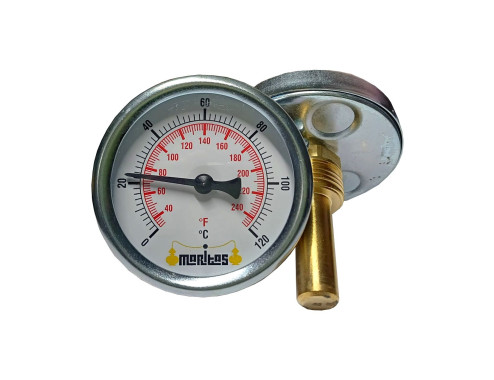

Includes a large 0–120 °C thermometer for temperature control during distillation and a large 0–100° alcoholmeter for measuring the alcohol content of the distillate.

The alcoholmeter holder makes the instrument easier to use during the process and provides greater convenience while working.

🍇 Simple and rectification distillation

This model allows both simple distillation and rectification distillation, adapting to different needs and allowing a distillate with greater purity and alcohol strength to be obtained.

With simple distillation, it produces approximately 50–75 L at around 45° ABV. With rectification, it can produce approximately 40–50 L at around 75° ABV. These figures are based on a 10° fermented wash.

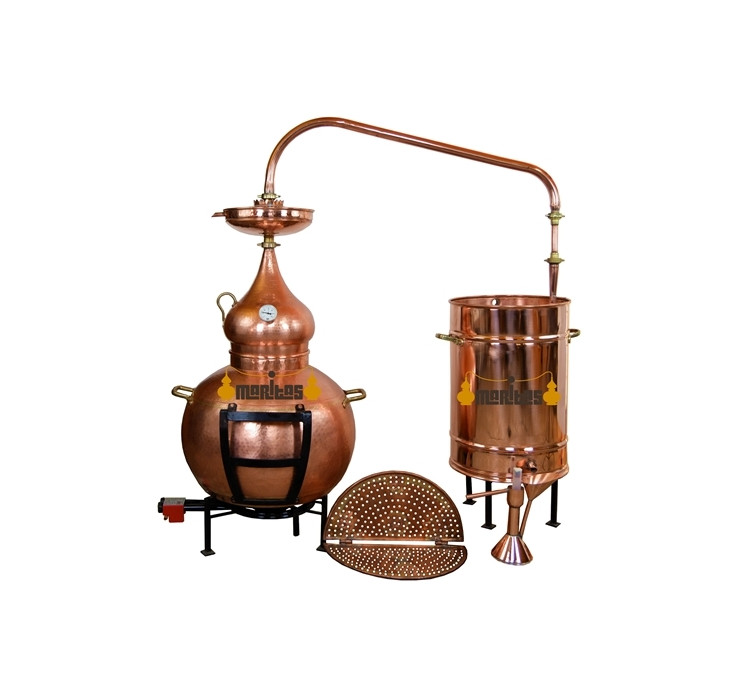

⚙️ Complete equipment included

🌡️ Large thermometer: 0–120 °C

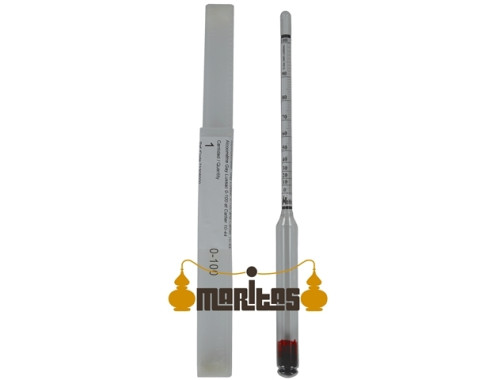

🍷 Large alcoholmeter: 0–100°

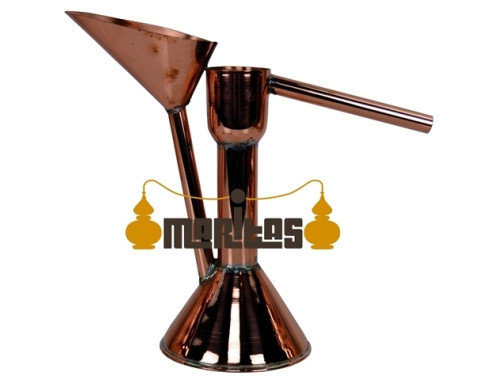

🔧 Alcoholmeter holder: for convenient use

🛡️ Separation grate: helps prevent solid materials from sticking to the bottom of the boiler

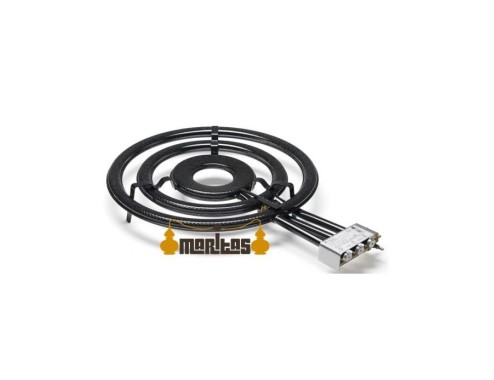

🔥 Gas burner: 70 cm, specifically designed for this model

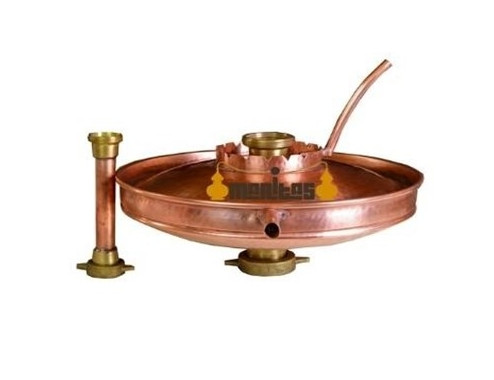

✨ Rectification lens: for obtaining purer alcohol with a higher strength

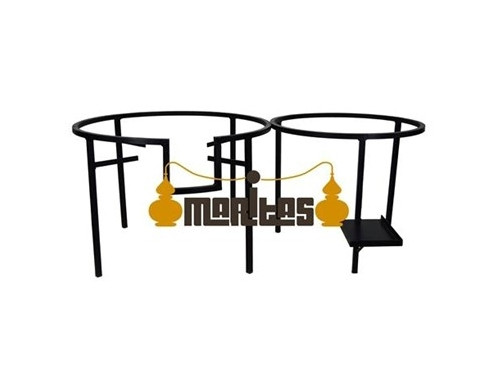

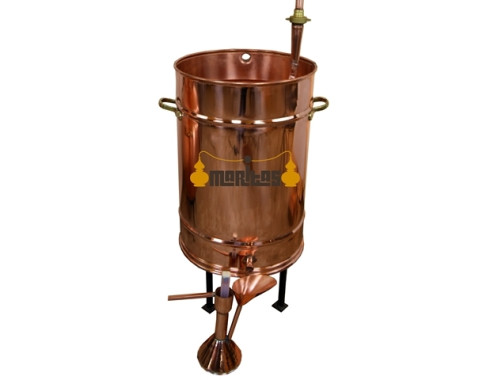

⚒️ Iron supports: for the boiler and condenser

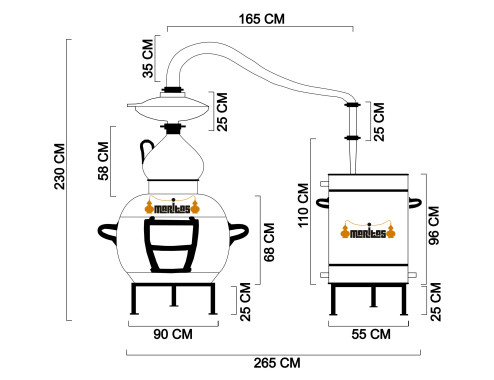

📋 Technical specifications

🔹 Total capacity: 550 L

🔹 Useful capacity: 500 L

🔨 Material: 2.5 mm hammered copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: welded joints

🛡️ Protection: protective iron bars in the boiler

🌡️ Thermometer: large, 0–120 °C

🍷 Alcoholmeter: large, 0–100°

⏱️ Distillation time: 6–8 h

📊 Estimated yield: 10–15% of useful capacity

💧 Approximate output: 50–75 L per distillation with a 10° fermented wash

🌿 Ideal for

🍇 Distilling grape pomace, fruit, cereals, bagasse, mash and other solid raw materials through a professional and efficient process.

🏭 Craft producers looking for a large-capacity, fully equipped still with excellent performance.

⚒️ Those looking for a robust, functional handcrafted still with a strong visual presence, equipped with all the accessories required for distillation.
