500 L Classic Welded Still + Thermometer + Alcoholmeter SOLIDS

⚗️ 500 L Classic Welded Still + Thermometer + Alcoholmeter SOLIDS

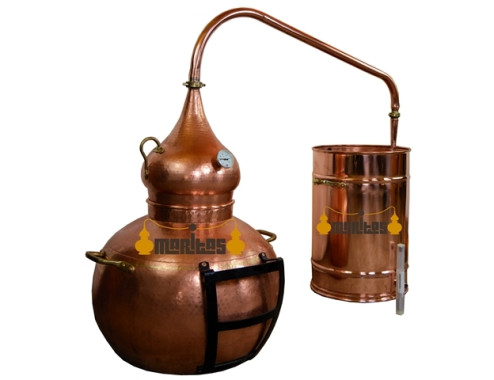

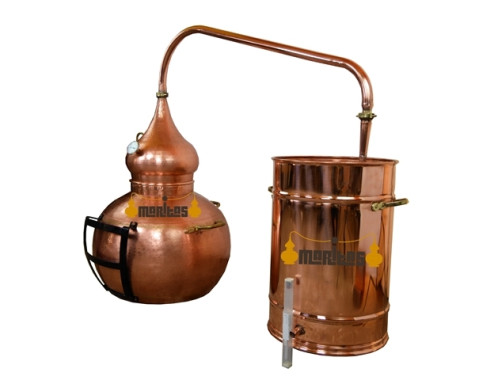

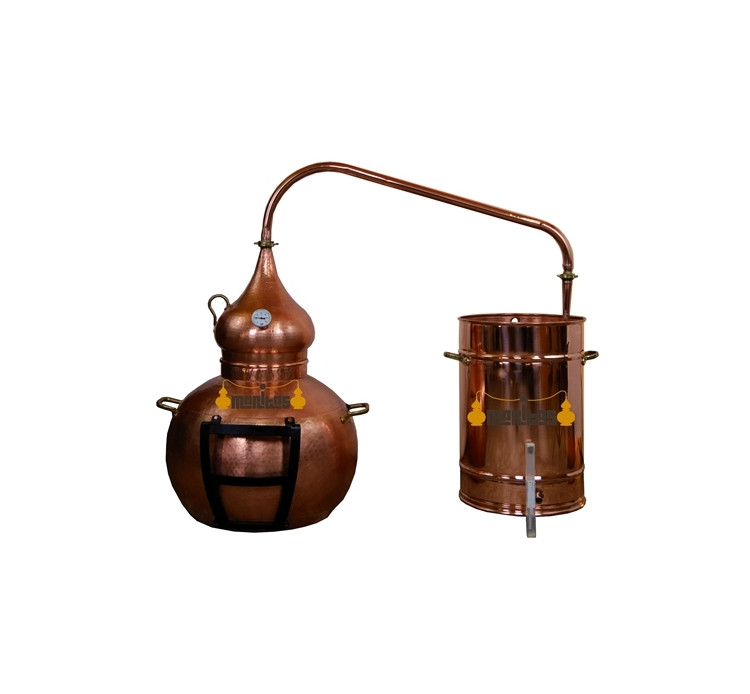

The 500 L Classic Welded Still + Thermometer + Alcoholmeter SOLIDS is a large-capacity handcrafted still specifically designed for the alcohol distillation of solid raw materials. It is ideal for working with fruit, grape pomace, bagasse, cereals, mash and other high-density materials.

⚒️ Craftsmanship and quality materials

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

Its polished brass handles and nuts, together with its welded joints, provide a robust and durable construction while preserving the traditional character of a handcrafted still.

🛡️ Designed for working with solids

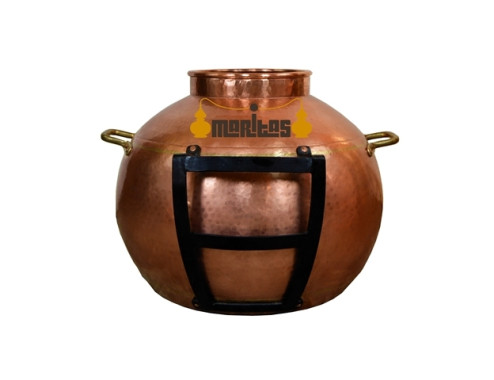

The boiler features protective iron bars that help protect the equipment and make it easier to turn over the remaining product during the distillation process.

Its design is prepared for working with dense mixtures and solid raw materials, allowing for an efficient and controlled distillation process.

🌡️ Instruments for distillation control

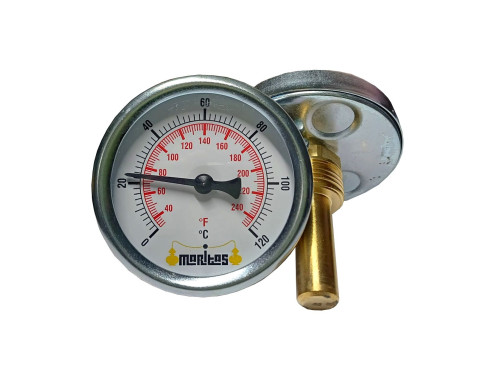

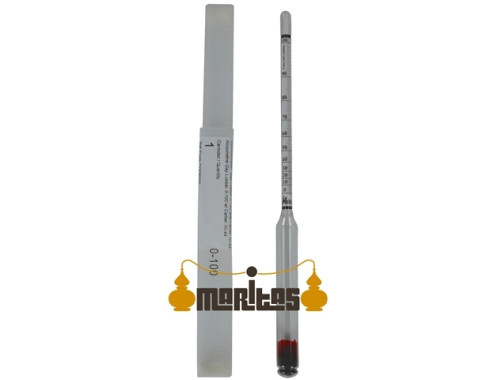

Includes a large 0–120 °C thermometer for precise temperature control during distillation and a large 0–100° alcoholmeter for measuring the alcohol content of the distillate.

🍇 Traditional and controlled distillation

This model is specifically designed for distilling fruit, grape pomace, bagasse, cereals and mash. Its copper construction and traditional still design provide a clean and controlled process while helping preserve the natural aromas of the raw material.

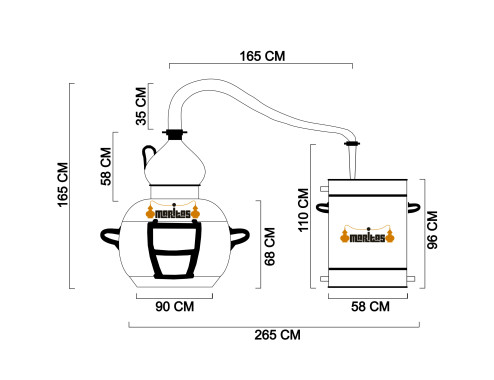

📋 Technical specifications

🔹 Total capacity: 550 L

🔹 Useful capacity: 500 L

🔨 Material: 2.5 mm hammered copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: welded joints

🛡️ Protection: protective iron bars in the boiler

🌡️ Thermometer: large, 0–120 °C

🍷 Alcoholmeter: large, 0–100°

⏱️ Distillation time: 6–8 h

📊 Estimated yield: 10–15% of useful capacity

💧 Approximate output: 50–75 L per distillation with a 10° fermented wash

🌿 Ideal for

🍇 Distilling grape pomace, fruit, cereals, bagasse, mash and other solid materials through a professional and efficient process.

🏭 Craft producers and demanding enthusiasts looking for a large-capacity still with excellent performance.

⚒️ Those looking for a robust, functional handcrafted still with a strong visual presence, equipped with instruments for distillation control.
