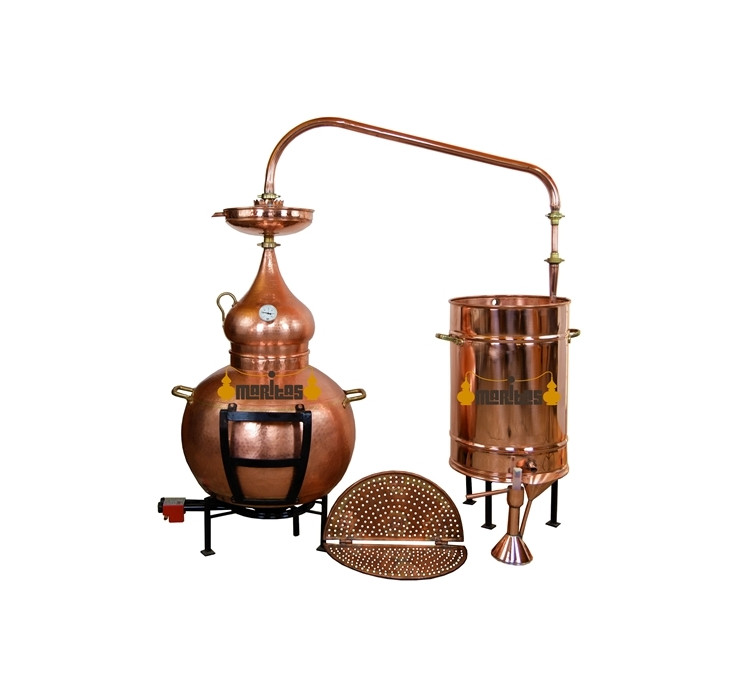

400 L Classic Welded Still COMPLETE SOLIDS

⚗️ 400 L Classic Welded Still COMPLETE SOLIDS

A large-capacity, high-performance handcrafted still, specifically designed for alcohol distillation of solid raw materials such as fruit, grape pomace, bagasse, cereals and mash.

Its construction combines hammered copper, polished brass and welded joints, providing a robust and durable unit for traditional distillation and larger-scale artisanal production.

⚒️ Quality craftsmanship and materials

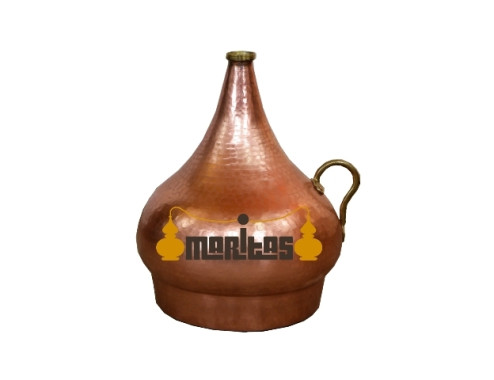

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

The polished brass handles and nuts provide the classic appearance associated with traditional stills. The welded joints offer greater strength and durability than riveted joints, reinforcing the construction for demanding and prolonged use.

🌡️ Designed for solid materials

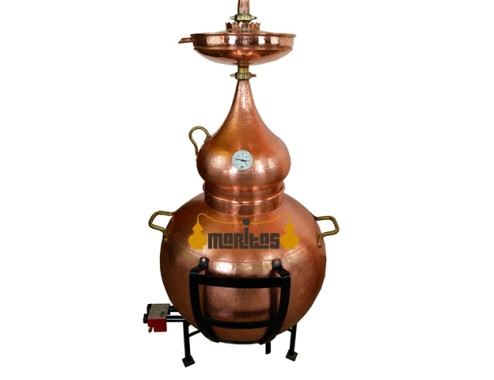

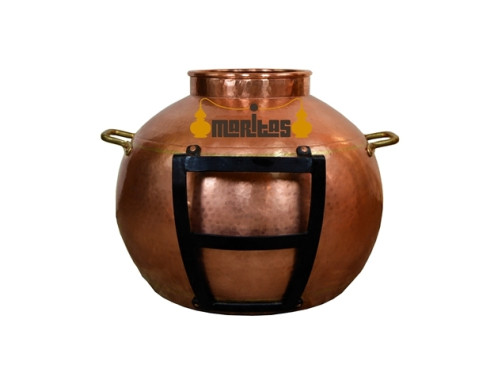

The boiler incorporates protective iron bars that help protect the equipment and make it easier to turn over the remaining product after distillation.

The design is specifically prepared for working with solid raw materials and high-density mixtures, allowing both simple distillation and rectification to be carried out efficiently and under controlled conditions.

🍇 Distillation and performance

The 400 L Classic Welded Still COMPLETE SOLIDS is designed to produce spirits from grape pomace, fruit, bagasse, cereals and other solid materials, helping to preserve the natural aromas of the raw materials.

In simple distillation, it produces 40–60 litres at approximately 45° alcohol. With rectification, it produces approximately 30–40 litres at 75° alcohol. These values are based on a 10° alcoholic fermented wash.

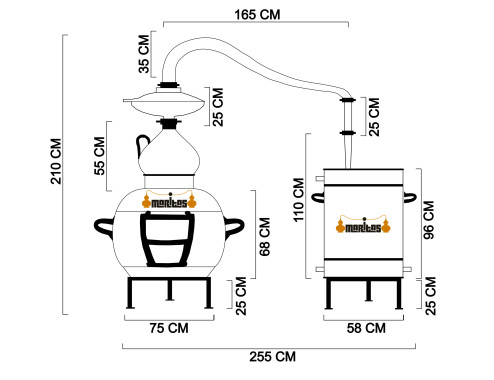

📊 Technical specifications

🔹 Total capacity: 450 litres

🔹 Useful capacity: 400 litres

🔹 Distillation time: 6–8 hours

🔹 Estimated yield: 10–15% of useful capacity

🔹 Approximate production: 40–60 litres per distillation with a 10° alcoholic fermented wash

⚙️ Complete equipment included

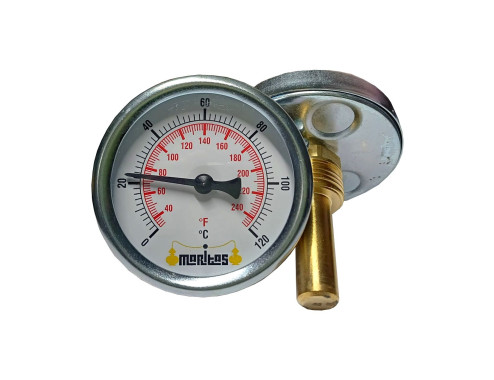

🌡️ Large thermometer: 0–120 °C

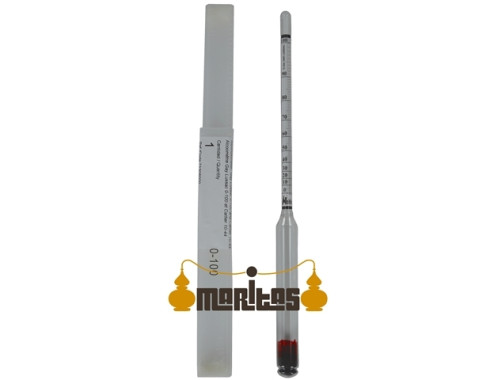

🧪 Large alcoholmeter: 0–100°

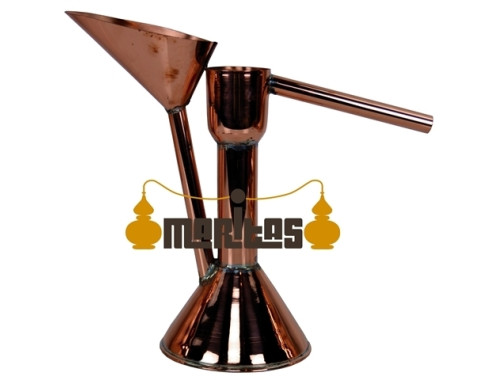

🔩 Alcoholmeter holder for easier use during measurement

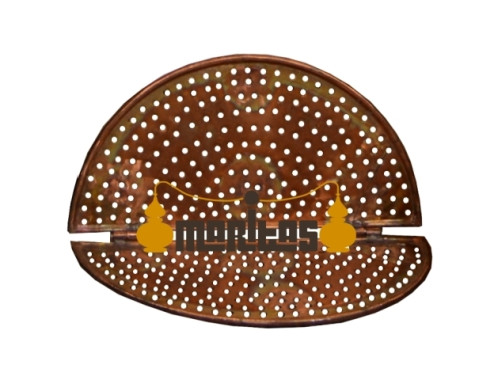

🛡️ Separation grate to prevent solid materials from sticking to the bottom of the boiler

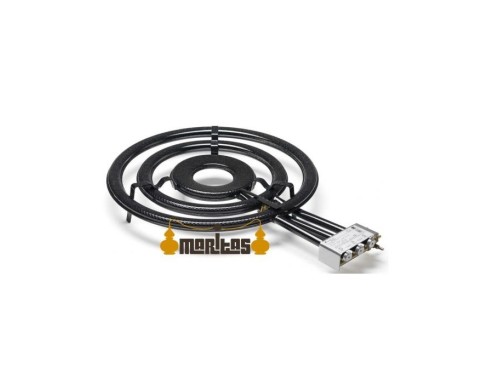

🔥 70 cm gas burner specifically designed for this model

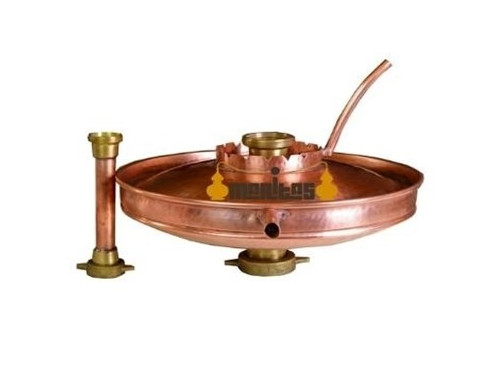

🔄 Rectification lens for obtaining purer, higher-strength alcohol

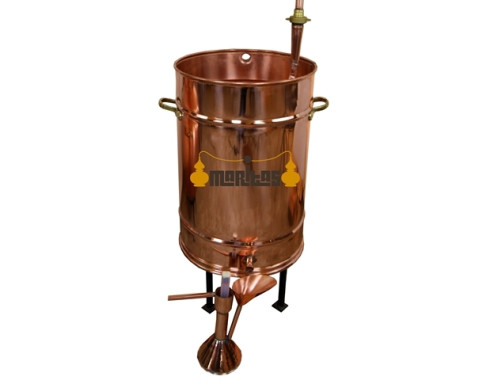

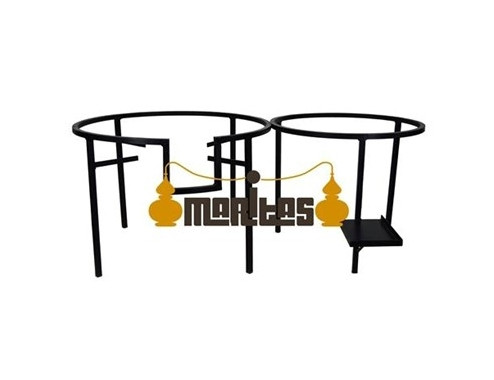

🛠️ Iron supports for the boiler and condenser

💫 Ideal for

🍇 Distilling grape pomace, fruit, cereals, bagasse and other solid materials using a traditional, efficient and controlled process.

🏭 Artisanal producers looking for a large-capacity, complete still prepared for higher-volume production.

✨ A robust, functional and impressive handcrafted still, equipped with the accessories required for simple distillation and rectification.
