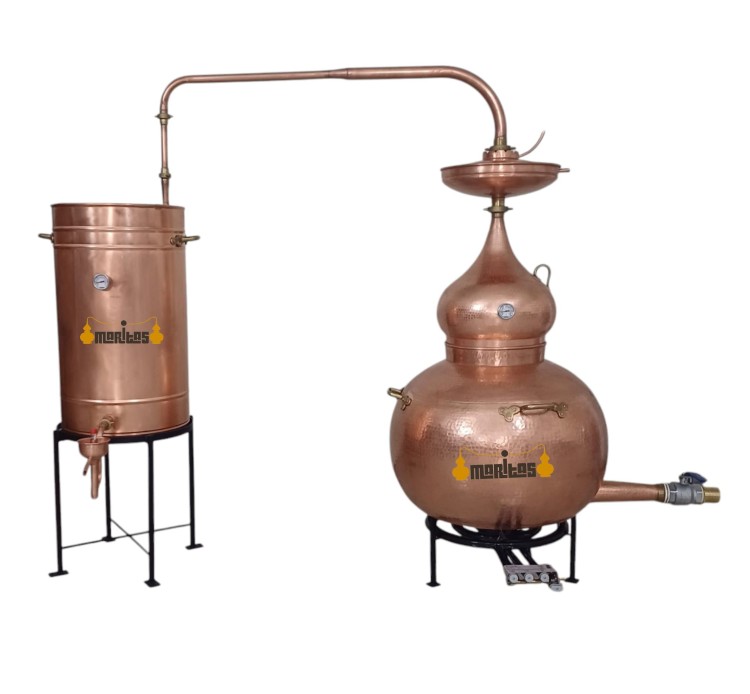

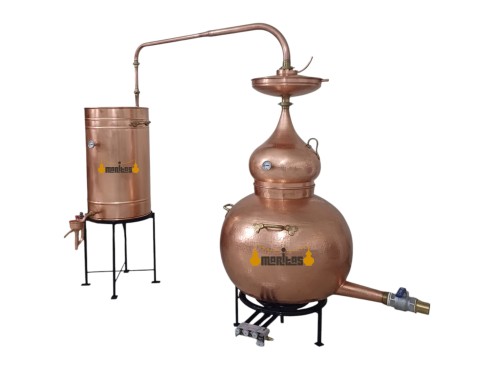

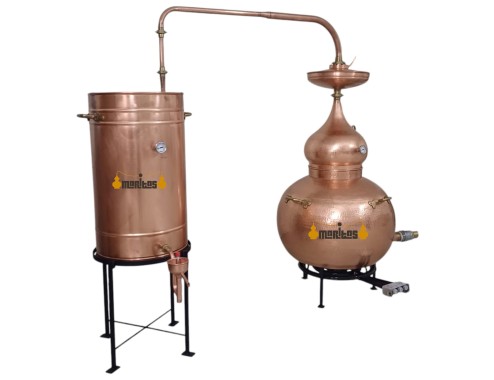

400 L Classic Welded Still COMPLETE LIQUIDS

⚗️ 400 L Classic Welded Still COMPLETE LIQUIDS

A large-capacity, high-performance handcrafted still, specifically designed for the alcohol distillation of liquid ferments such as spirits, wine and must.

Its construction combines hammered copper, polished brass and welded joints, providing a robust and durable unit for traditional distillation and larger-scale artisanal or professional production.

⚒️ Quality craftsmanship and materials

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

The polished brass handles and nuts provide the classic appearance associated with traditional stills. The welded joints offer greater strength and durability than riveted joints, reinforcing the construction for demanding and prolonged use.

🌡️ Designed for high performance

This model includes a 2.5" stainless steel discharge valve, allowing the still to be emptied efficiently and conveniently.

Its robust construction and high-quality materials allow efficient, safe and continuous operation with liquid ferments, providing a controlled distillation process and consistent results.

🍇 Authentic distillation

The 400 L Classic Welded Still COMPLETE LIQUIDS is specifically designed for distilling wine, must, spirits and other liquid ferments, helping to preserve the natural aromas of the raw material.

With simple distillation, it produces 40–60 litres at approximately 45° alcohol. With rectification, the production is approximately 30–40 litres at 75° alcohol. These values are based on a 10° alcoholic fermented wash.

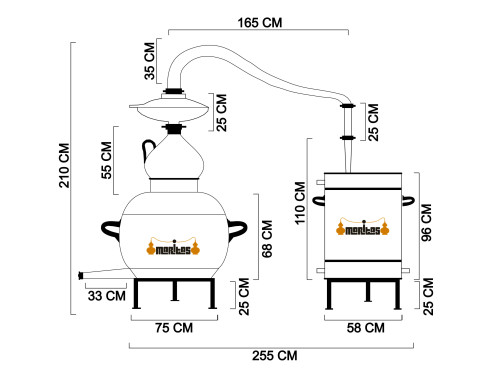

📊 Technical specifications

🔹 Total capacity: 450 litres

🔹 Useful capacity: 400 litres

🔹 Distillation time: 6–8 hours

🔹 Estimated yield: 10–15% of useful capacity

🔹 Approximate production: 40–60 litres per distillation with a 10° alcoholic fermented wash

⚙️ Complete equipment included

🌡️ 2 large thermometers: 0–120 °C

🧪 Large alcoholmeter: 0–100°

🔩 Alcoholmeter holder for convenient measurement

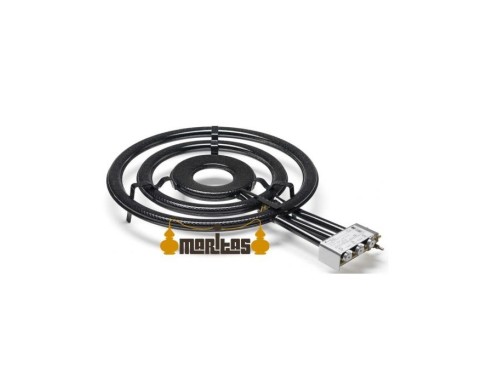

🔥 70 cm gas burner specifically designed for this model

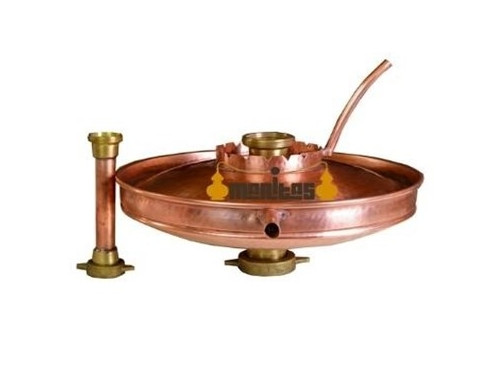

🔄 Rectification or refining lens for obtaining purer, higher-strength alcohol

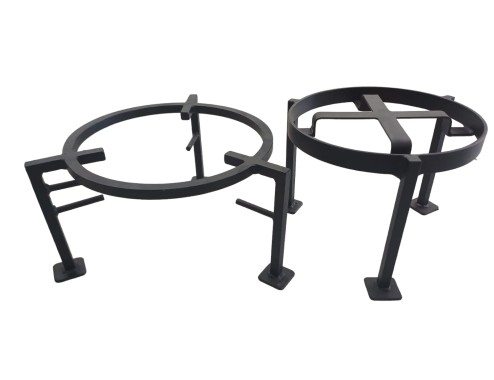

🛠️ Iron supports for the boiler and condenser

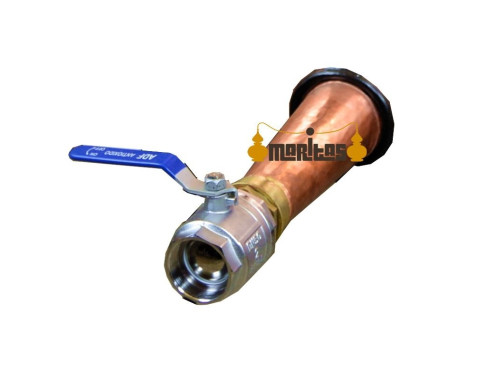

💧 Discharge tube with a 2.5" valve in stainless steel or brass for removing the remaining product

💫 Ideal for

🍷 Distilling wine, must, spirits and other liquids through a professional, precise and controlled process.

🏭 Artisanal or professional producers looking for a large-capacity, complete still with excellent performance.

✨ A robust and functional handcrafted still with a strong visual presence, equipped with the accessories required for simple distillation and rectification.
