500 L Classic Welded Still + Thermometer + Alcoholmeter LIQUIDS

⚗️ 500 L Classic Welded Still + Thermometer + Alcoholmeter LIQUIDS

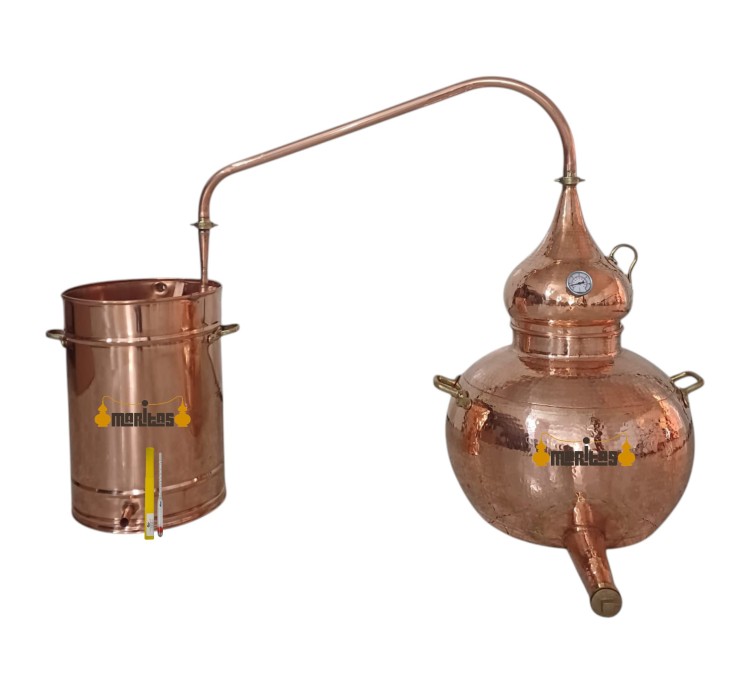

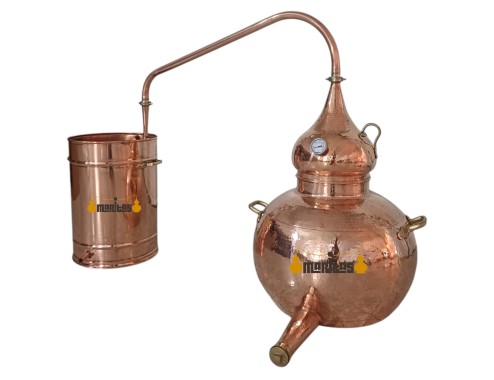

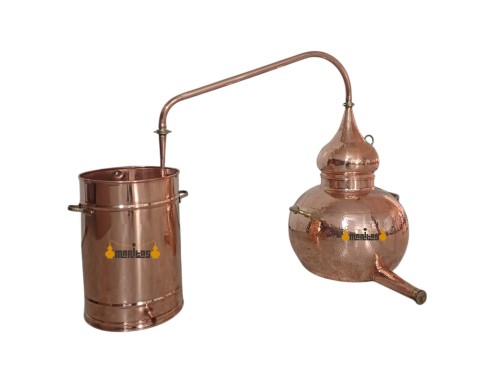

The 500 L Classic Welded Still + Thermometer + Alcoholmeter LIQUIDS is a large-capacity handcrafted still specifically designed for the alcohol distillation of liquid ferments such as spirits, wine, must and other fermented bases.

It combines the tradition of copper with precision measuring instruments to provide an efficient, controlled and accurate distillation process while helping preserve the natural aromas of the raw material.

⚒️ Craftsmanship and quality materials

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

Its polished brass handles and nuts, together with the welded joints, provide a robust and durable construction, offering greater strength and durability than riveted joints.

🌡️ Designed for working with liquids

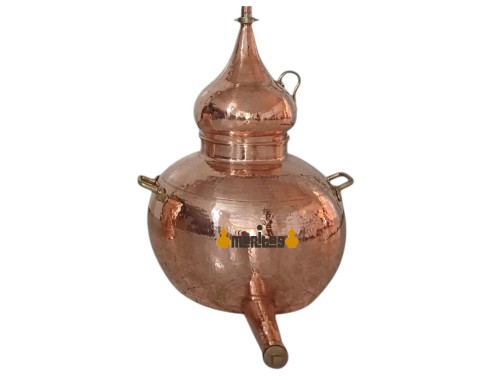

The boiler features a 2.5" outlet with a threaded cap, designed to make draining and cleaning the equipment easier after each distillation.

🚫 Discharge valve: not included. The 2.5" stainless steel discharge valve can be added according to the requirements of the installation.

🍇 Efficient and controlled distillation

It includes a large 0–120 °C thermometer for precise temperature control during distillation and a large 0–100° alcoholmeter for measuring the alcohol content of the distillate.

Its capacity and design make it especially suitable for distilling spirits, wine, must and other liquid ferments, providing an efficient and controlled process.

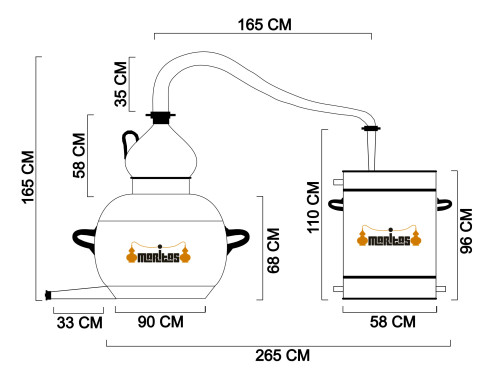

📋 Technical specifications

🔹 Total capacity: 550 L

🔹 Useful capacity: 500 L

🔨 Material: 2.5 mm hammered copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: welded joints

🔧 Boiler outlet: 2.5" with threaded cap

🚫 Discharge valve: not included.

🌡️ Thermometer: large, 0–120 °C

🍷 Alcoholmeter: large, 0–100°

⏱️ Distillation time: 6–8 h

📊 Estimated yield: 10–15% of useful capacity

💧 Approximate output: 50–75 L per distillation with a 10° fermented wash

🌿 Ideal for

🍇 Distilling spirits, wine, must and other liquid ferments through a traditional, efficient and controlled process.

🏭 Craft producers and demanding enthusiasts looking for a large-capacity, high-performance still.

⚒️ Those looking for a robust, functional handcrafted still with a strong visual presence, equipped with instruments for precise distillation control.
