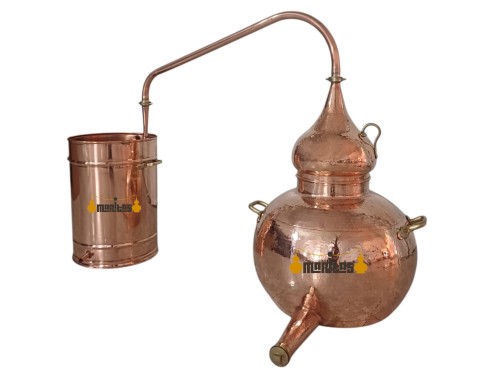

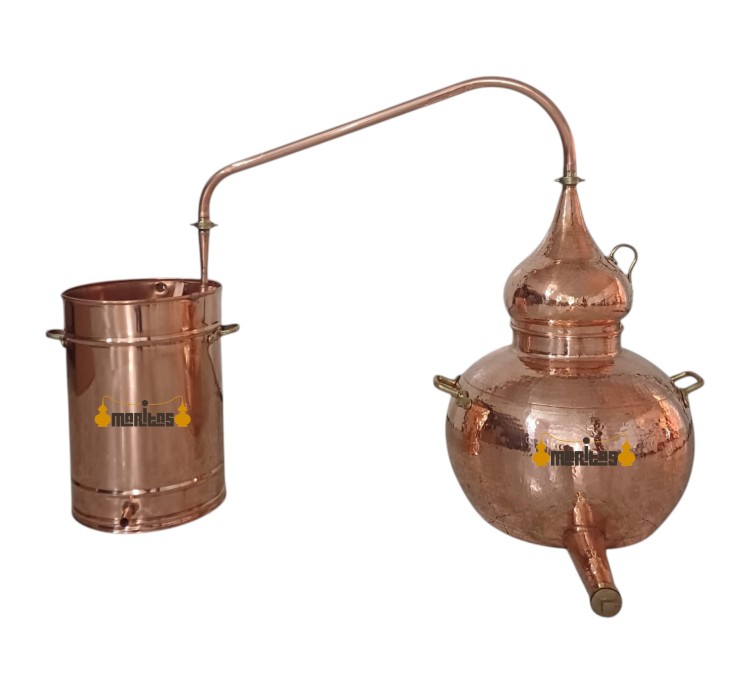

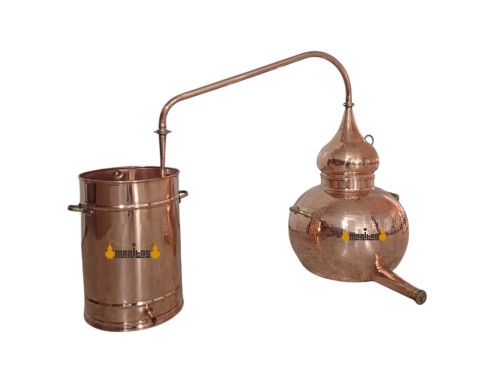

500 L Classic Welded Still LIQUIDS

⚗️ 500 L Classic Welded Still LIQUIDS

The 500 L Classic Welded Still LIQUIDS is a large-capacity handcrafted still specifically designed for the alcohol distillation of liquid ferments such as spirits, wine, must and other fermented bases. It combines strength, traditional craftsmanship and efficiency for professional results when distilling liquids.

⚒️ Craftsmanship and quality materials

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

Its polished brass handles and nuts, together with its welded joints, provide a robust and durable construction while preserving the traditional character of a handcrafted still.

🌡️ Designed for working with liquids

The boiler features a 2.5" outlet with a threaded cap, designed to make draining and cleaning the equipment easier after each distillation.

The 2.5" stainless steel discharge valve is not included, allowing the discharge system to be configured according to the needs of each installation.

🍇 Efficient and controlled distillation

This model is specifically designed for distilling wine, fermented washes, must, spirits and other liquids. Its copper construction and traditional still design provide a clean, efficient and controlled process while helping preserve the natural aromas of the raw material.

📋 Technical specifications

🔹 Total capacity: 550 L

🔹 Useful capacity: 500 L

🔨 Material: 2.5 mm hammered copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: welded joints

🔧 Boiler outlet: 2.5" with threaded cap

🚫 Discharge valve: not included.

⏱️ Distillation time: 6–8 h

📊 Estimated yield: 10–15% of useful capacity

💧 Approximate output: 50–75 L per distillation with a 10° fermented wash

🌿 Ideal for

🍇 Distilling wine, must, fermented washes, spirits and other liquids through a professional, clean and efficient process.

🏭 Craft producers and demanding enthusiasts looking for a large-capacity still with high performance.

⚒️ Those looking for a robust, functional handcrafted still with a strong visual presence, specifically designed for liquid distillation.
