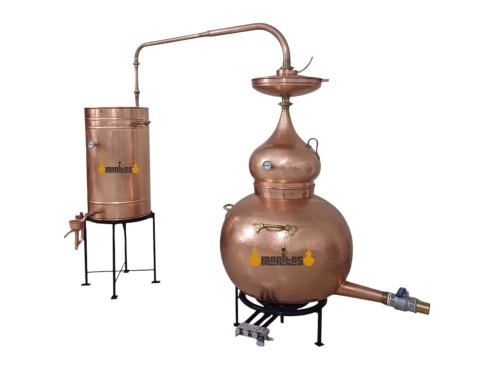

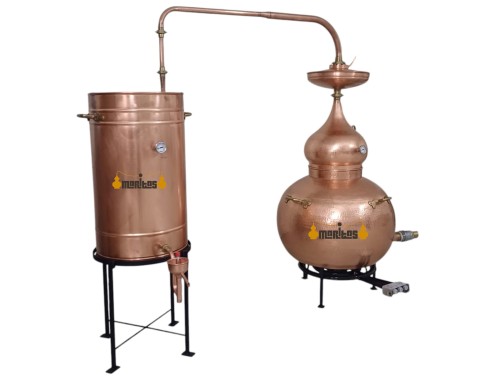

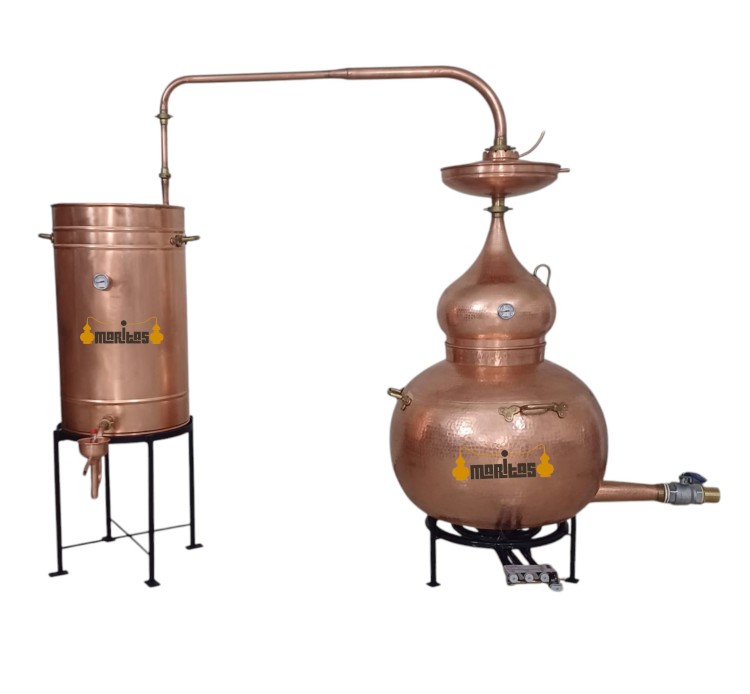

500 L Classic Welded Still COMPLETE LIQUIDS

⚗️ 500 L Classic Welded Still COMPLETE LIQUIDS

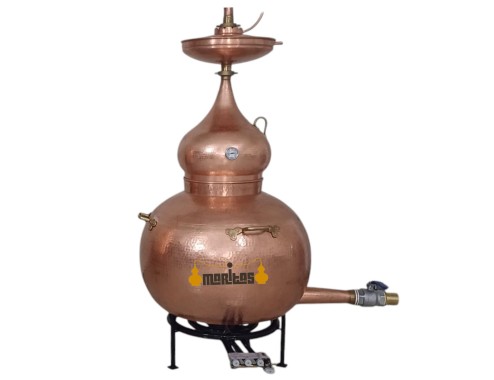

The 500 L Classic Welded Still COMPLETE LIQUIDS is a large-capacity, high-performance handcrafted still specifically designed for the alcohol distillation of liquid ferments such as spirits, wine, must, liqueurs and other fermented bases.

It combines the tradition of copper with complete equipment for carrying out both simple and rectification distillation efficiently, accurately and under controlled conditions.

⚒️ Craftsmanship and quality materials

Made from 2.5 mm hammered copper sheet, it provides excellent heat conduction, strength and durability.

Its polished brass handles and nuts, together with its welded joints, provide a robust and durable construction, offering greater strength and durability than riveted joints.

🌡️ Designed for superior performance

This model features a 2.5" stainless steel discharge valve, integrated into a system designed to facilitate draining and maintain an efficient, continuous distillation process.

Its robust construction and high-quality materials allow liquid ferments to be processed in a controlled manner, providing consistent results throughout the distillation process.

🍇 Simple and rectification distillation

The 500 L Classic Welded Still COMPLETE LIQUIDS is specifically designed for distilling wine, must, spirits and other liquid ferments, helping to preserve the natural aromas of the raw material.

With simple distillation, it produces approximately 50–75 L at around 45° ABV. With rectification, it can produce approximately 40–50 L at around 75° ABV. These figures are based on a 10° fermented wash.

⚙️ Complete equipment included

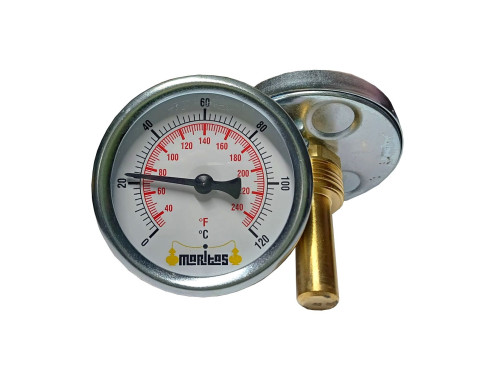

🌡️ 2 large thermometers: 0–120 °C

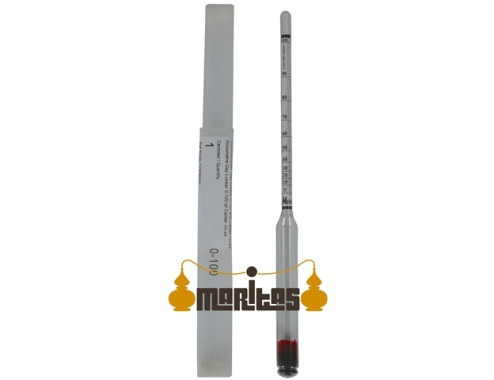

🍷 Large alcoholmeter: 0–100°

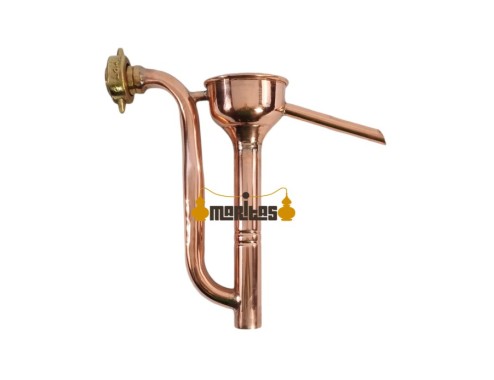

🔧 Alcoholmeter holder: for convenient use during distillation

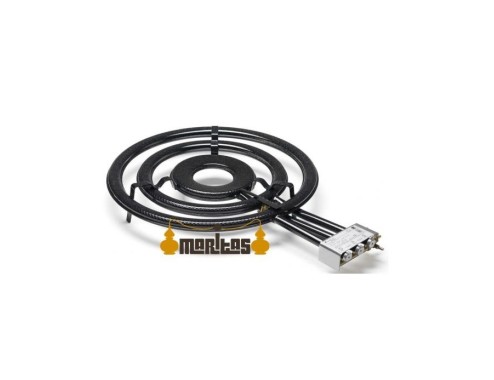

🔥 Gas burner: 70 cm, specifically designed for this model

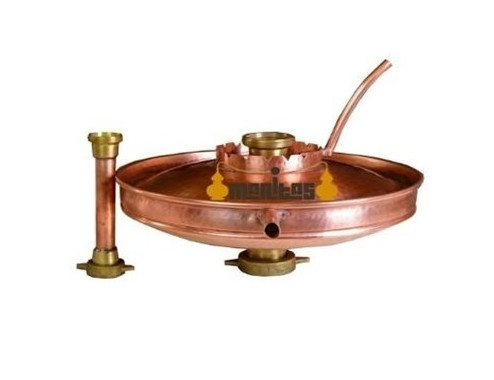

✨ Rectification or refining lens: for obtaining purer alcohol with a higher strength

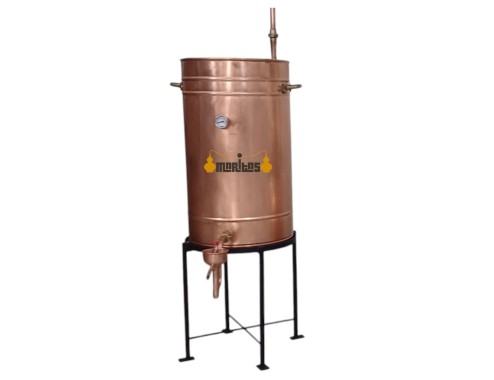

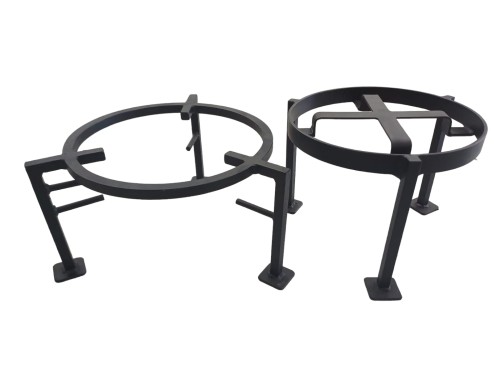

⚒️ Iron supports: for the boiler and condenser

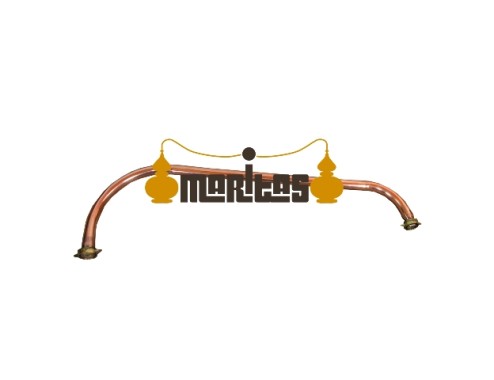

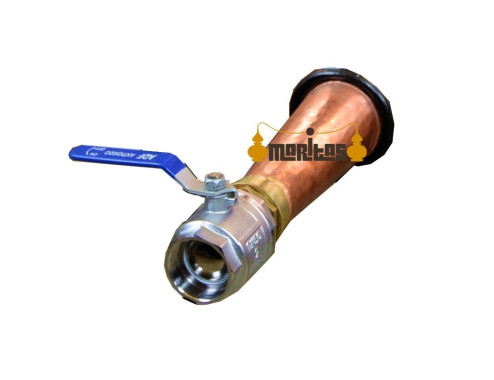

🔧 Discharge tube: with a 2.5" stainless steel or brass valve for removing leftover product

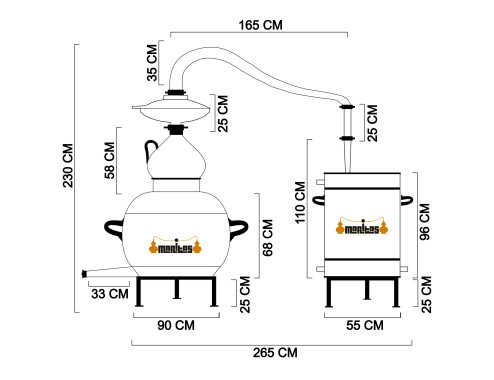

📋 Technical specifications

🔹 Total capacity: 550 L

🔹 Useful capacity: 500 L

🔨 Material: 2.5 mm hammered copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: welded joints

🔧 Discharge valve: 2.5" stainless steel

⏱️ Distillation time: 6–8 h

📊 Estimated yield: 10–15% of useful capacity

💧 Approximate output: 50–75 L per distillation with a 10° fermented wash

🌿 Ideal for

🍇 Distilling wine, must, spirits, liqueurs and other liquid ferments through a professional, precise and controlled process.

🏭 Craft and professional producers looking for a large-capacity, fully equipped still with excellent performance.

⚒️ Those looking for a robust, functional handcrafted still with a strong visual presence, equipped with all the accessories required for distillation.
