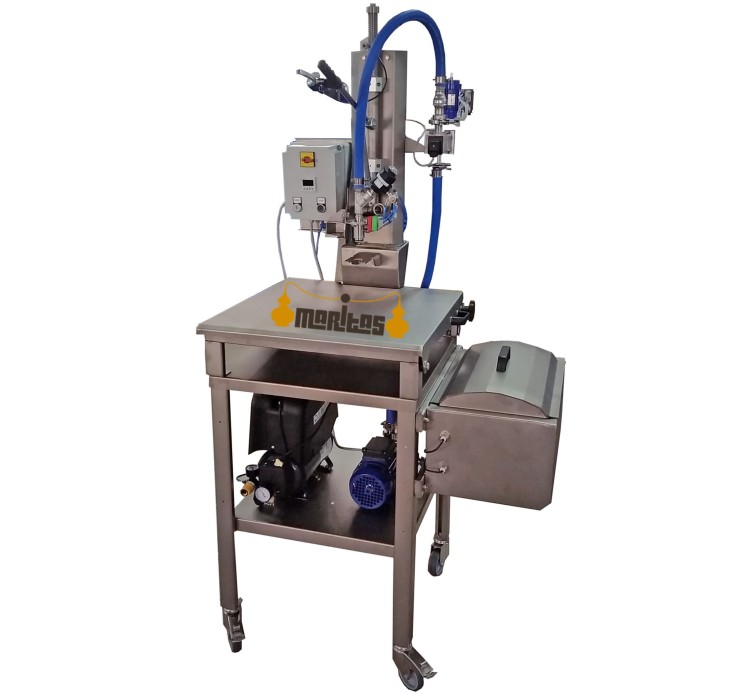

The BB12 semi-manual filler with ENOS 20 pump for bag-in-box is entirely made of stainless steel, including the support trolley.

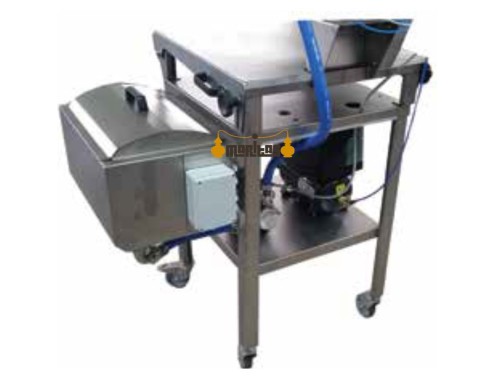

It is equipped with a stainless steel support cart with a lower support surface, compressor, and electronic floating collection tray.
The filling cycle is carried out automatically: start, fill, and stop.
The operator selects the format and operates the plug extraction/insertion clamp, following the filling process on the display.
The control panel manages the start and stop of the external pump (also available in combination with the EURO 20 volumetric pump).
A push-button valve allows manual injection of inert gas at the end of the cycle.
The vacuum function is available as an option and requires a 6-bar pneumatic connection.
The possibility of choosing between different types of flow sensors ensures optimal use of the machine for applications such as: wine, oil, fruit juices (filtered and non-viscous), and hot filling up to 100°C.
The electronic control panel allows calibration of the instrument, with repeatability of the filled volumes and an error margin of ±5/10 cl (depending on the sensor used).
In terms of hygiene, a fully enclosed anti-drip filling valve is used, with complete draining of the pipes, sanitary quick-release clamp fittings, a CIP washing circuit with supplied tap, and the possibility of steam sterilization at 110°C using a special high-temperature kit.
Other advantages include a tiltable and removable support surface, allowing filling of rigid containers (e.g., PET, aluminum, glass) of both rectangular and circular shapes (maximum diameter 85 mm).
Adapters for numerous types of caps and bags (PUOCH, BERKER, QCS, QCD, etc.) are available upon request.
It is also possible to perform gravity filling, without using a pump.
Technical Features:
-
- Production with 3-liter containers: 180 bags/hour
- Production with 5-liter containers: 150 bags/hour
- Production with 10-liter containers: 100 bags/hour
- Production with 20-liter containers: 40 bags/hour
- Power supply: 220V 50/60 Hz
- Electric control panel
- Digital flowmeter, max. 7000 L/h
- Stainless steel support cart with lower surface
- Stainless steel filling head
- Push-button valve for manual nitrogen injection
- Head locking system during filling
- Stainless steel drip tray
- Automatic start/stop control for pump
- Double clamp for plug extraction and insertion
- Inlet hose connectors Ø 20–25 mm
- Filling of Bag-in-Box and Pouch from 1 liter
- Filling of rigid rectangular or cylindrical containers (max. Ø 85 mm)
- Stainless steel connection for integrated CIP washing circuit
- Oil filling kit (max. flow rate 1500 L/h)
- Hot liquid kit, including a sensor for filling non-viscous hot juices at 100°C + pneumatic anti-drip valve
- Vacuum kit with manual push-button valve (requires min. 3 bar air)
- Oil-free silent compressor
- Electronic floating collection tray and connection box for pasteurization system
This model is manufactured upon request, with a production time of 20–25 days.
