BB40 Automatic Filler

Introducing the BB40 Automatic Bag-in-Box Filler, a versatile and efficient product that offers numerous advantages for the liquid filling process.

BB40 automatic filling machine designed for continuous or individual bag filling.

Ideal for filling food liquids (wine, oil, fruit juices), viscous liquids (creams, sauces), and industrial liquids (lubricants, soaps).

It can be used from room temperature to 100°C.

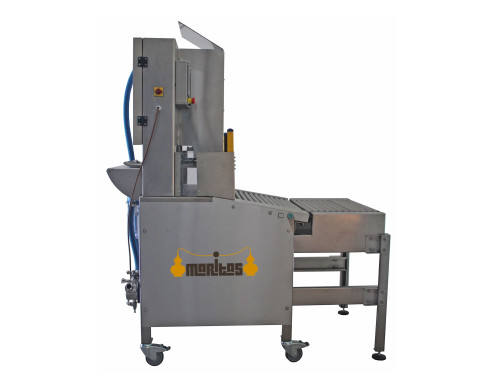

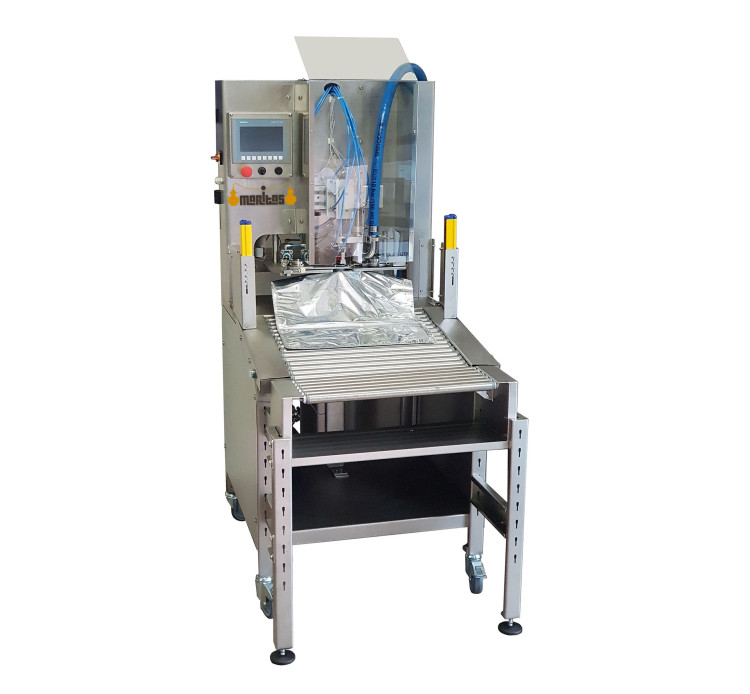

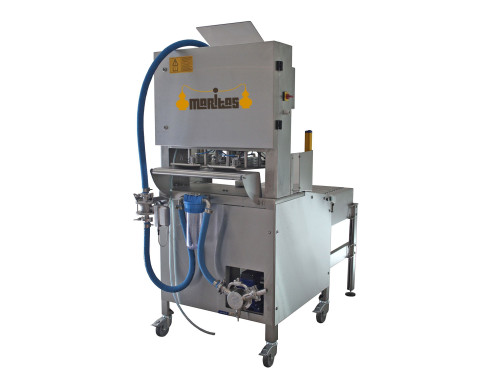

The machine is constructed entirely of stainless steel with a large roller table for sliding the bags (extendable for volumes of 10-20 liters) and four wheels for easy movement and installation.

The filling cycle includes: opening, dosing, vacuum, nitrogen, and closing.

The operator monitors the cycle and separates the filled containers from those being filled.

The use of a self-priming pump with a rubber impeller and a regulation inverter as standard ensures easy and quick machine start-up, constant flow, and smooth liquid transfer.

The filler can be equipped with various alternative types of pumps or automatic systems with isobaric lungs.

The use of standard pneumatic extraction grippers allows for precision and reliability in opening and closing operations, as well as simplifying the replacement of the type of cap used.

The control panel equipped with a SIEMENS PLC allows for management of all filling phases, adapting the machine to any type of liquid processed (wine, oil, juices, creams, etc.).

Filling can be performed with an automatic, manual, or step-by-step cycle. Three different calibration levels: micro-error, macro-error, and self-adjustment.

Volume repeatability with an error of -0.2%.

Regarding safety and cleanliness, the machine offers complete protection during use with safety barriers and movement buttons.

The machine is equipped with automatic programs for sanitizing with both detergents and steam at 110°C (requires the appropriate kit).

A stainless steel faucet for the CIP cleaning circuit is supplied as standard.

The fully enclosed anti-drip valve ensures no liquid leaks once filling is complete.

The VACUUM filling system (bottom-closure system), in addition to minimizing the risk of contamination of packaged products, facilitates installation and format changeovers, avoiding adjustments to the height of the filling head.

A 10" or 30" filter housing can be installed (separate from the machine body) to ensure final sterilization before filling.

The use of standard Siemens electrical components, stainless steel induction sensors, laser optics for cap filling, and pneumatic components from leading brands guarantee a high-quality product suitable for continuous use.

It also offers remote control, a roller conveyor for containers, Industry 4.0 compatibility, a cardboard box holder, multilingual programming, an air filtration kit, a silent, oil-free 24-liter compressor, an electrical and pneumatic panel with independent lighting, and a POUCH container filling system.

Technical specifications:

• • Production with 5-liter bags: 450 bags/h.
  • Production with 10-liter bags: 280 bags/h.
  • Production with 20-liter bags: 180 bags/h.
  • EURO 40 positive displacement pump with bypass and total discharge valve.
  • Variable speed drive for pump.
  • Power: 2 HP (1.5 kW).
  • Power supply: 220V single-phase / 380V 5-pole three-phase. DIN 40 connection.
  • Stainless steel electronic panel with 7" SIEMENS PLC and multilingual and multiprogram touchscreen.
  • Minimum air supply 6 bar (compressor not included).
  • Stainless steel frame on casters with locking brake.
  • Food-grade rubber tubing.
  • Stainless steel induction flow meter.
  • Single bag or continuous bag program.
  • Vacuum and nitrogen injection cycle.
  • Vacuum filling system.
  • Additional stainless steel roller conveyor for continuous filling of 10-20 liter bags (optional).
  • Standard VITOP tap adjustment.
  • Cardboard box holder.
  • Automatic cleaning program.
  • Prepared for filling at 120°C.
  • Bag-in-Box and Pouch filling capacity from 1 to 25 liters.
  • Dimensions: 800x1600x1800 mm.
  • Weight: 170 kg.

Optional add-ons:

• • Additional stainless steel roller conveyor on wheels, for continuous filling of 10 and 20 liter bags (cod.9134), price 600 euros.
  • Filter with 30” stainless steel casing, on independent support (P7 cartridges not included) (cod.9029-40), price 1120 euros.
  • Pneumatic kit for filling bags with aseptic cap (cod.9347), price 1250 euros.
  • 3-stage air filtration kit (cod.9122), price 365 euros.
  • Remote telecare prepared for Industry 4.0 (cod.9125), price 2680 euros.
  • Ultraclean system to sanitize the beginning and end of the cycle (cod.9185-40), price 1460 euros.
  • Price difference for changing the standard pump for a 2000 l/h lobe pump, or for a 3600 l/h open impeller centrifugal pump (cod.9039), price 3500 euros.
  • Isobaric tank (cod.9137), price 13,300 euros.
  • Stainless steel idler roller conveyor, length 2500 mm, with adjustable sides for transporting bags and/or boxes (cod.9128), price 2800 euros.
  • 100 liter accumulation tank on platform, for pasteurizer connection (cod.9139), price 1200 euros.

We manufacture this model upon request; allow 20-25 days for production.
