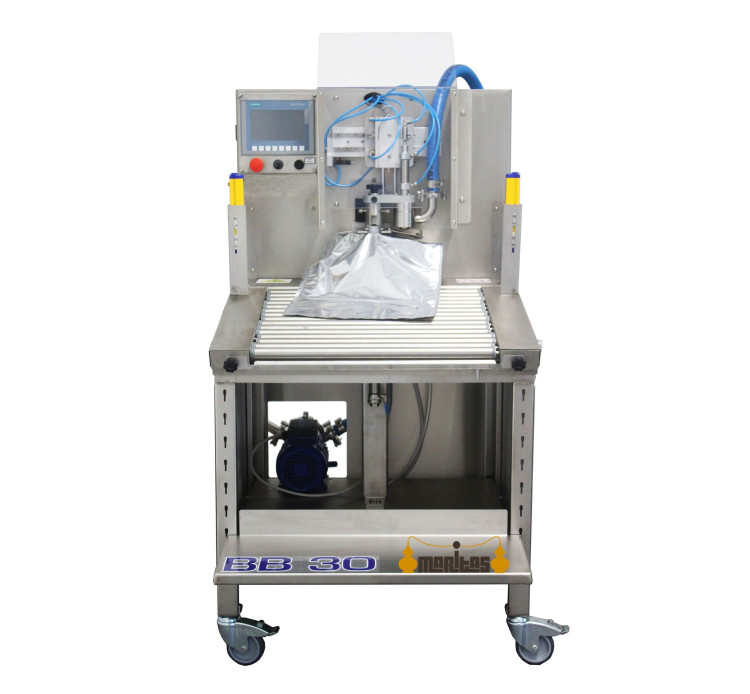

BB30 Automatic Filler with 9300 l/h Flow Rate

Introducing the BB30 Automatic Bag-in-Box Filler complete with a 9300 l/h flow rate pump, designed for filling a wide variety of liquids, such as wine, oil, creams, sauces, and industrial liquids such as soaps and lubricating oils.

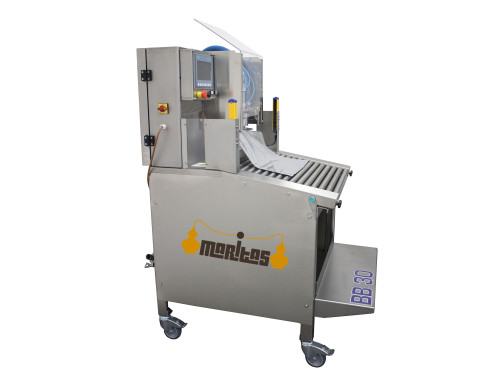

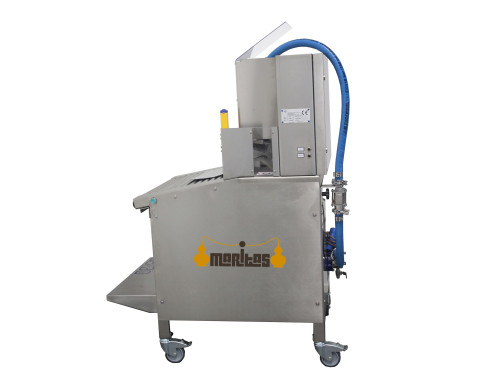

The machine is constructed entirely of stainless steel, with a large roller table for sliding the boxes.

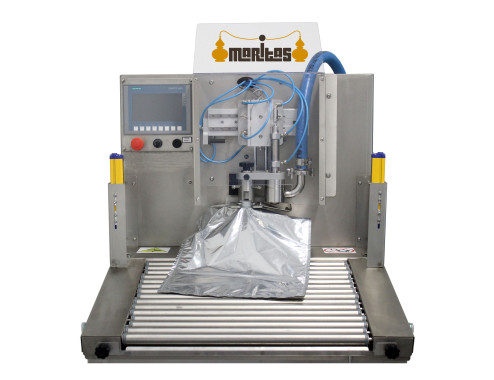

The filling cycle is fully automatic: the machine performs all opening, closing, vacuum, inert gas saturation, and filling operations.

For vacuum packaging, the operator only needs to position the bag and monitor the progress of the various operations.

The standard equipment of the self-priming volumetric pump with rubber impeller guarantees high flow, the ability to prime from any container, constant flow, an anti-pressure bypass valve, and a total drain valve to empty the filling circuit. The possibility of installing special pneumatic adapters allows the machine to work with countless types of caps, in addition to the VITOP cap supplied as standard.

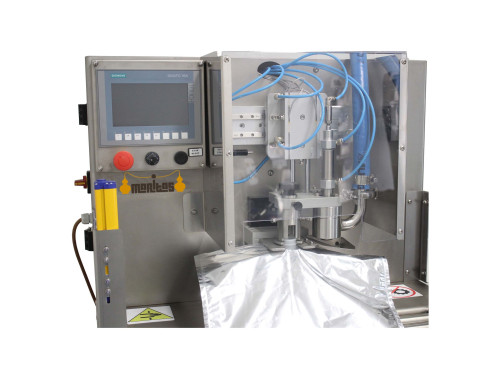

The control panel equipped with a SIEMENS PLC allows management of all filling phases, adapting the machine to any type of liquid processed (wine, fruit juices, oil, water, creams, etc.).

Three different types of adjustment are possible: autotuning, macro error (pulses/liter), micro error (addition or subtraction of centiliters). Volume repeatability with an error of 0.5-0.2% (varies depending on the type of sensor installed).

All operations performed automatically by the filler are configured by the operator according to their needs: vacuum time, gas injection times, filling speed, bag opening and closing speed.

The volumetric pump and the option to install a variable speed drive make it easy to achieve all desired capacity targets.

Complete protection during machine use with safety barriers and movement buttons.

The machine is equipped with automatic programs for sanitizing with both detergents and steam at 110°C (requires the appropriate kit).

A stainless steel tap for the CIP cleaning circuit is supplied as standard.

The fully enclosed anti-drip valve ensures no liquid leaks once filling is complete.

The VACUUM filling system (bottom closure system), in addition to minimizing the risk of contamination of packaged products, facilitates installation and format changeovers, avoiding adjustments to the height of the filling head. Possibility of installing a 10" or 30" filter housing (separate from the machine body) to ensure final sterilization before filling.

Use of SIEMENS electrical components and top-brand pneumatic components, always available in our warehouses.

Possibility of remote assistance interventions upon request.

Prepared for Industry 4.0, adjustable cardboard box support, large support surface with sliding rollers, drip tray with full drainage, 7" display, multilingual programming (English, French, German, Spanish, Russian) selectable from the front panel, oil-free filter for the air circuit, stainless steel control panel, easily accessible pneumatic and electronic system equipped with lighting, POUCH and STAND-UP filling.

Technical specifications:

• • Production with 3-liter containers: 450 bags/h.
  • Production with 5-liter bags: 300 bags/h.
  • Production with 10-liter bags: 240 bags/h.
  • Production with 20-liter bags: 180 bags/h.
  • Power: 2 HP (1.5 kW).
  • 220 V single-phase power supply.
  • Self-priming electric pump with rubber impeller and By-pass from 900 rpm.
  • 1.5" Triclover connection.
  • Stainless steel electronic panel with 7" touchscreen SIEMENS PLC.
  • BURKERT electromagnetic flow sensor.
  • Air extraction from bags.
  • Nitrogen injection.
  • Automatic bag opening and closing system (VITOP standard).
  • Vacuum filling system.
  • Bag-in-Box and Pouch (high version) filling capacity from 1 liter.
  • Stainless steel structure with 4 wheels equipped with locking brakes.
  • Stainless steel connection for cleaning system (CIP).
  • Safety guards.
  • Adjustable stainless steel support for cardboard boxes.
  • Dimensions: 800x1000x1500 mm.
  • Weight: 140 kg.

Optional add-ons:

• • 1.5 Kw single-phase electronic speed variator (code 9333), price 550 euros.
  • Endress stainless steel induction sensor for hot and viscous liquids and steam sanitization (cod.9108), price 875 euros.
  • Olive oil kit consisting of a stainless steel turbine sensor (cod.9171), price 365 euros.
  • Filter with 10" PVC casing (cartridge not included) (cod.9013), price 170 euros.
  • Filter with 30” stainless steel casing, on separate support (P7 cartridges not included) (cod.9029-30), price 1120 euros.
  • Pneumatic kit for filling bags with aseptic cap (cod.9347), price 1250 euros.
  • Price difference for changing the pump that comes standard for a 2000 l/h lobe pump (requires electronic speed variator and stainless steel induction sensor), or for a 3600 l/h open impeller centrifugal pump (cod.9039), price 3500 euros.
  • 3-stage air filtration kit (cod.9122), price 365 euros.
  • Pneumatic gripper for special plugs (code 9170), priced at 350 euros.
  • Ultraclean system to sanitize the beginning and end of the cycle (cod.9185-30), price 1840 euros.
  • 100 liter accumulation tank on platform, for pasteurizer connection (cod.9139), price 1200 euros.
  • Three-way pneumatic solenoid valve that includes single-phase float control panel (cod.9345), price 890 euros.
  • Remote telecare prepared for Industry 4.0 (cod.9125), price 2680 euros.

This model is made to order and takes 20-25 days to complete.
