The Coaxial Pump With Inverter Without Trolley EURO 60 includes a CE control panel separate from the motor with rotation inverter and 2-meter long cable.
Technical characteristics:
-
- Performance: 21000 l/hour.
- 3 Hp (2.2 kw) three-phase motor.
- Rotating shaft: 700 rpm.
- Mechanical seal Stainless steel / Graphite / Nbr.

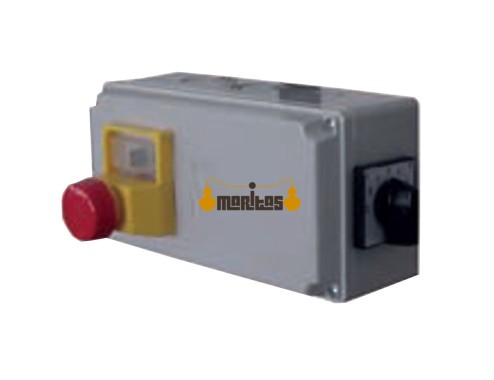

- CE control panel separate from the motor with rotation inverter and 2-meter long cable.
- AISI 304 stainless steel shaft.
- Food grade rubber impeller type “NBSB”.
- For hot liquids above 60°C, request EPDM impeller.

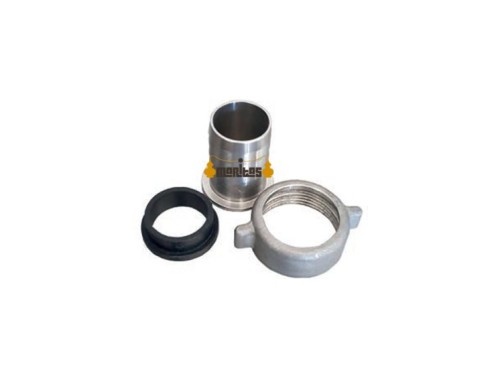

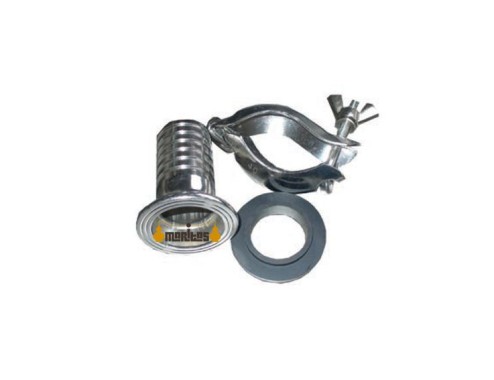

- 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾” connections.
- Dimensions: 480x300x300 mm.
- Weight: 25 kg.
Optional accessories:
-
- External bypass (cod.7045), price 128 euros.
- CE three-phase electrical system with 24V NC output, for connection of external pressure switch or probe (separate control panel with two meters of cable cod.7036), price 560 euros.
- "Dry stop" STOP kit (additional to the CE three-phase electrical system with 24V NC output cod.7047), price 270 euros.
- CE three-phase electrical system with timer (independent control panel with two meters of cable cod.7037), price 560 euros.
In short, the volumetric electric pump EURO 60 is a reliable and durable option.
Please note that this model is made to order and the manufacturing time is approximately 25-30 days.
Product Details
Specific References
- upc
- 840130601926
- ean13
- 8401306079424
- mpn
- 8401306079003
New
- EAN13
- UPC
In the same category
Volumetric electric pump in AISI 304 stainless steel with food-grade rubber impeller, applied directly to the electric motor, with the sealing chamber separated from the flange of the pump body.
Includes three-phase electrical system (panel with separate controls with two meters of cable).
✨ Made to order
📩 Request your personalized quote
⏱️ Check delivery times
