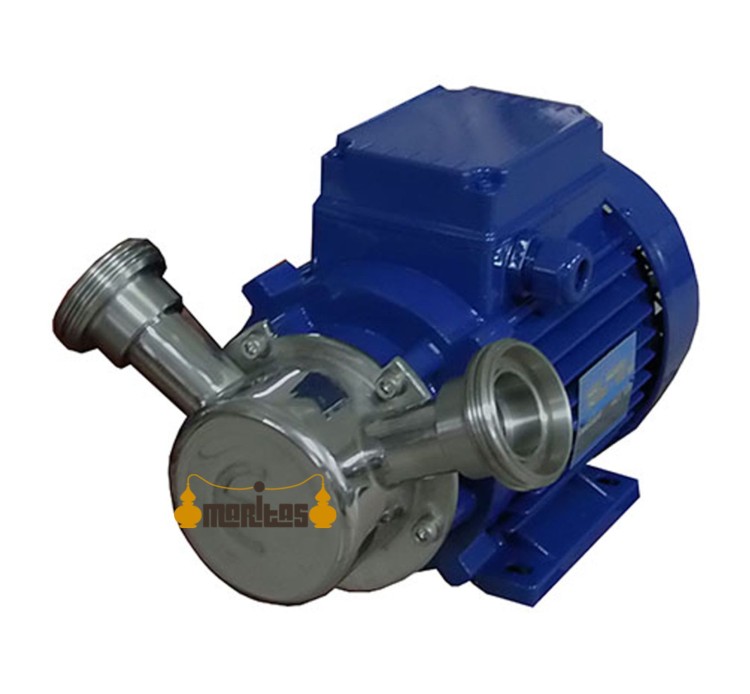

The Coaxial Pump With Inverter Without Trolley EURO 50 includes a CE control panel separate from the motor with rotation inverter and 2-meter long cable.
Technical characteristics:
-
- Performance: 10200 l/hour.
- 2 Hp (1.5 kw) three-phase motor.
- Rotating shaft: 700 rpm.
- Mechanical seal Stainless steel / Graphite / Nbr.

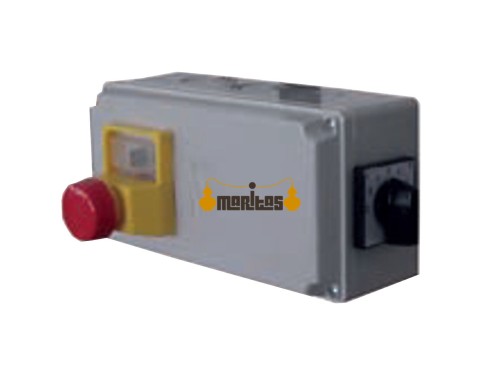

- CE control panel separate from the motor with rotation inverter and 2-meter long cable.
- AISI 304 stainless steel shaft.
- Food grade rubber impeller type “NBSB”.
- For hot liquids above 60°C, request EPDM impeller.

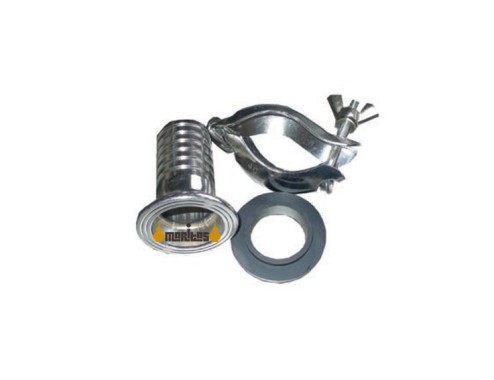

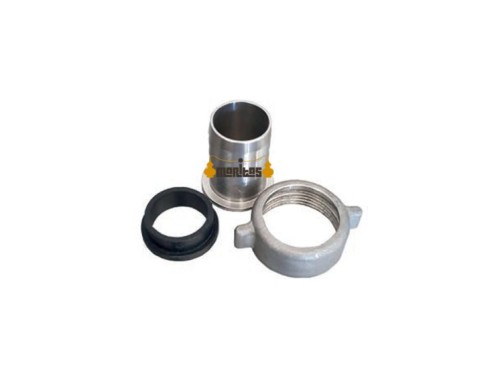

- 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾” connections.
- Dimensions: 440x280x280 mm.
- Weight: 17 kg.
Optional accessories:
-
- External bypass (cod.7045), price 128 euros.
- CE three-phase electrical system with 24V NC output, for connection of external pressure switch or probe (separate control panel with two meters of cable cod.7036), price 560 euros.
- "Dry stop" STOP kit (additional to the CE three-phase electrical system with 24V NC output cod.7047), price 270 euros.
- CE three-phase electrical system with timer (independent control panel with two meters of cable cod.7037), price 560 euros.
In short, the volumetric electric pump EURO 50 is a reliable and durable option.
Please note that this model is made to order and the manufacturing time is approximately 25-30 days.
