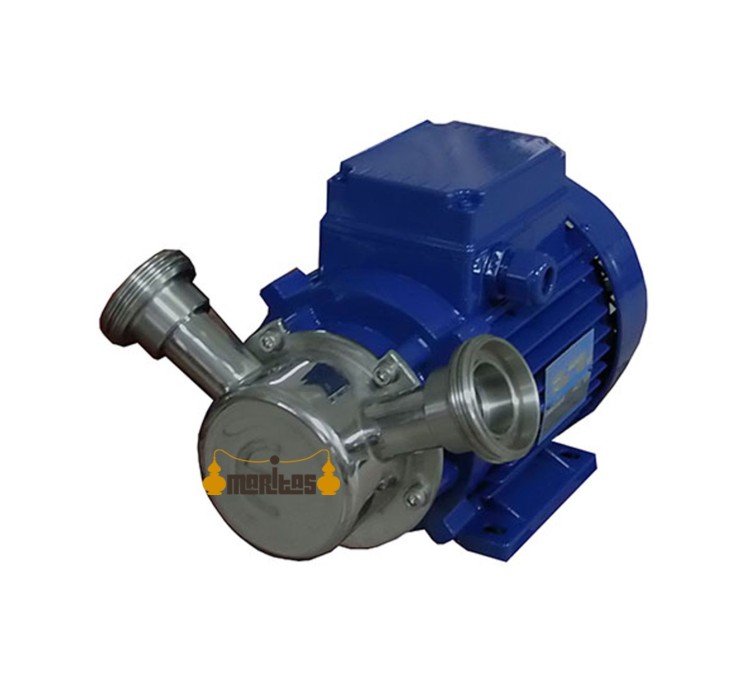

Coaxial Pump EURO 20 WITH Inverter

The Coaxial Pump With Inverter Without Carriage EURO 20 comes as standard with a control panel installed directly on the motor.

The coaxial pump EURO 20 with rotation inverter comes as standard with a control panel installed directly on the motor, but the separate control panel is also available in CE version with motor protection, timer, dry stop, 24V output or radio control (optional).

Technical characteristics:

• • Performance: 1000 l/hour.
  • Three-phase motor of 0.5 Hp (0.37 kw).
  • Rotating shaft: 900 rpm.
  • Mechanical seal Stainless steel / Graphite / Nbr.

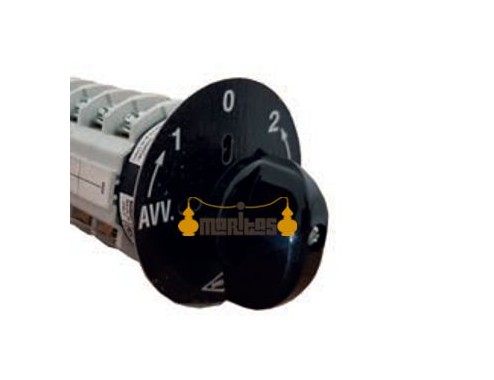

  • Electrical system with rotation reverser on board the motor.
  • AISI 304 stainless steel shaft.
  • Food grade rubber impeller type “NBSB”.
  • For hot liquids above 60°C request EPDM impeller.

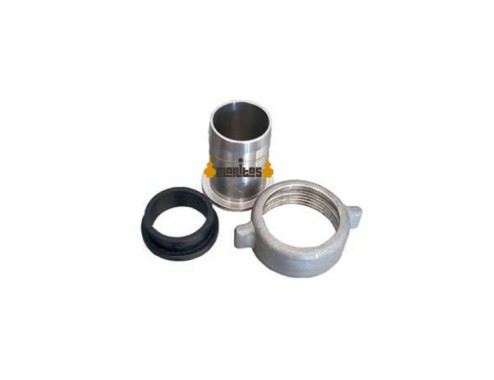

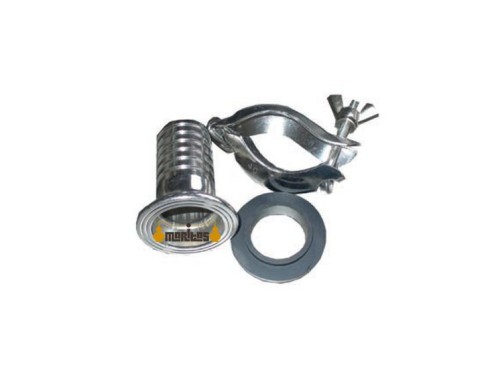

  • 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾ connections.
  • Control panel installed on the motor.
  • 1.5 m cable.
  • Dimensions: 330x180x280 mm.
  • Weight: 6 kg.

Optional accessories:

• • External bypass (cod.7045), price 80 euros.
  • Three-phase CE electrical system (electrical panel with separate controls with two meters of cable cod.7034), price 140 euros.
  • Three-phase CE electrical system with 24V NC output, for connection of external pressure switch or probe (separate control panel with two meters of cable cod.7036), price 560 euros.
  • STOP "dry stop" kit (additional to the three-phase CE electrical system with 24V NC output cod.7047), price 250 euros.
  • Three-phase CE electrical system with timer (independent control panel with two meters of cable cod.7037), price 560 euros.

In short, the volumetric electric pump EURO 20 is a reliable and durable option.

Please note that this model is made to order and the manufacturing time is approximately 25-30 days.
