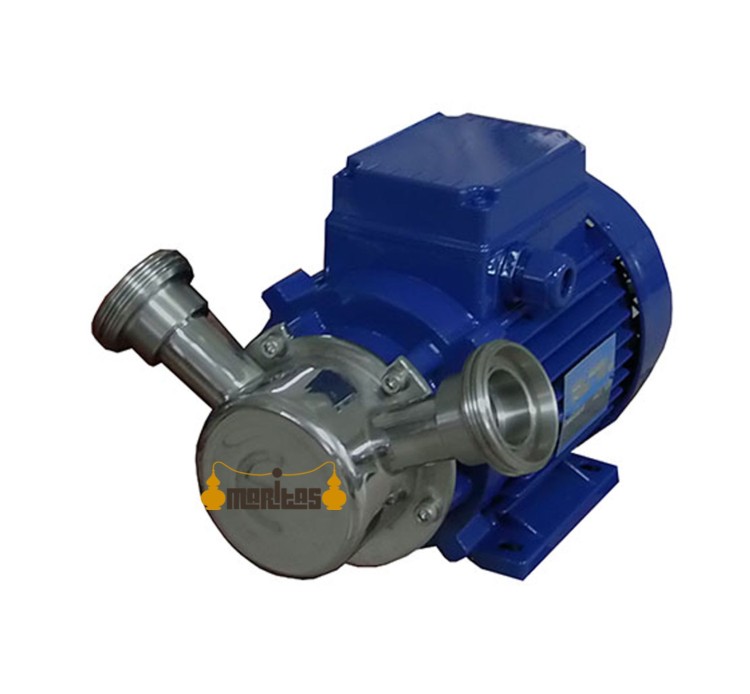

Coaxial EURO 30 With kW Conversion WITH Inverter

The Coaxial Pump With Inverter Without Carriage EURO 30 With kW Conversion includes as standard a control panel installed directly on the motor.

The coaxial pump EURO 30 with rotation inverter includes as standard a control panel installed directly on the motor, but the separate control panel is also available in CE version with motor protection, timer, dry stop, 24V output or radio control (optional).

Technical characteristics:

• • Performance: 4500 l/hour.
  • Three-phase motor of 0.75 Hp (0.48 kw).
  • kW conversion: IE3 0.48 = IE1 1.1.
  • Rotating shaft: 900 rpm.
  • Mechanical seal Stainless steel / Graphite / Nbr.

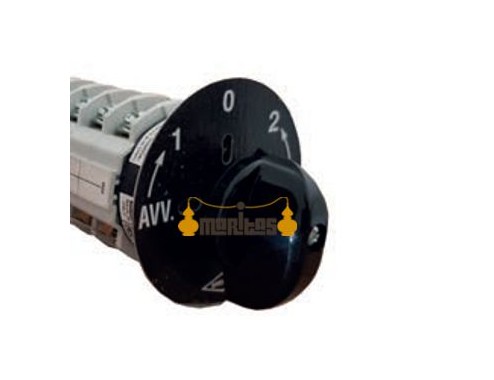

  • Electrical system with rotation reverser on board the motor.
  • AISI 304 stainless steel shaft.
  • Food grade rubber impeller type “NBSB”.
  • For hot liquids above 60°C request EPDM impeller.

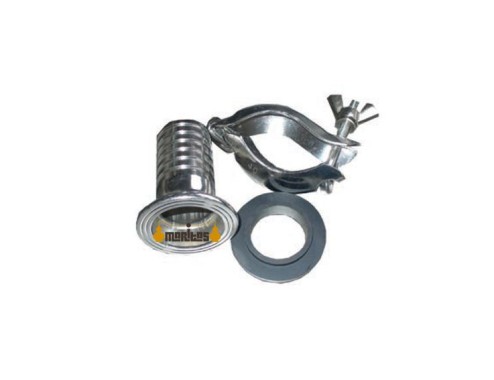

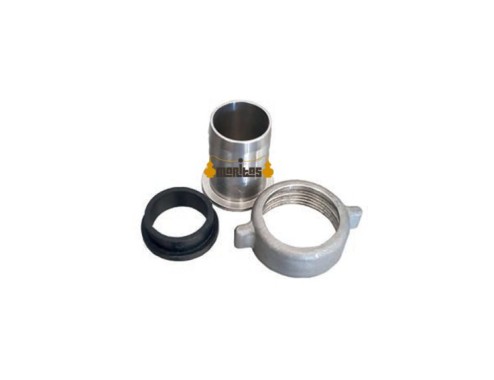

  • 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾ connections.
  • Control panel installed on the motor.
  • 1.5 m cable.
  • Dimensions: 330x230x250 mm.
  • Weight: 10 kg.

Optional accessories:

• • External bypass (code 7045), price 90 euros.
  • Three-phase CE electrical system (electrical panel with separate controls with two meters of cable code 7034), price 140 euros.
  • Three-phase CE electrical system with 24V NC output, for connection of external pressure switch or probe (separate control panel with two meters of cable code 7036), price 560 euros.
  • STOP "dry stop" kit (additional to the three-phase CE electrical system with 24V NC output code 7047), price 260 euros.
  • Three-phase CE electrical system with timer (independent control panel with two meters of cable code 7037), price 560 euros.

In short, the volumetric electric pump EURO 30 is a reliable and durable option.

Please note that this model is made to order and the manufacturing time is approximately 25-30 days.
