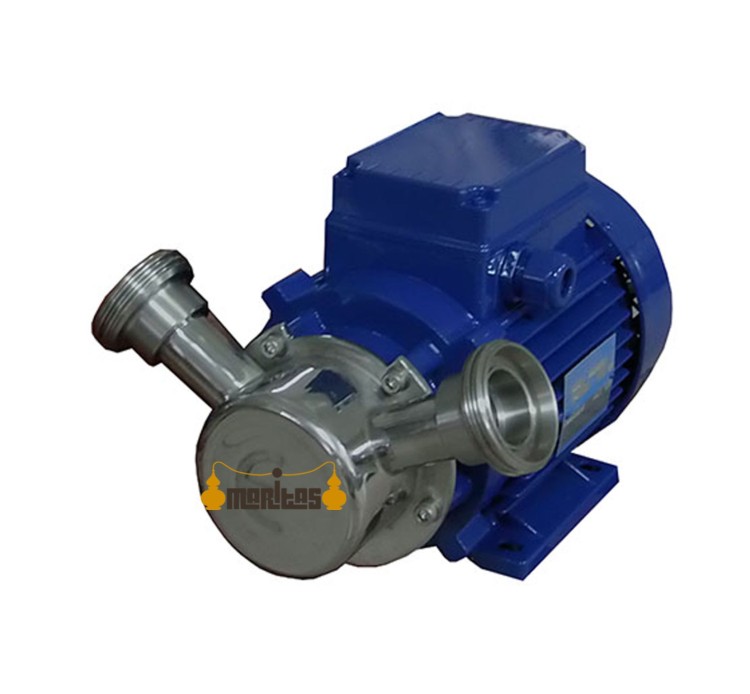

Coaxial Pump EURO 30 With kW Conversion WITHOUT inverter

We present the "EURO 30 Coaxial Pump Without Inverter Without Cart With kw Conversion", with control panel installed on the motor.

The coaxial pump EURO 30  with terminal block includes as standard a control panel installed directly on the motor.

Technical characteristics:

• • Performance: 4500 l/hour.
  • Three-phase motor of 0.75 Hp (0.48 kw).
  • kW conversion: IE3 0.48 = IE1 1.1
  • Rotating shaft: 900 rpm.
  • Mechanical seal Stainless steel / Graphite / Nbr.
  • AISI 304 stainless steel shaft.
  • Food grade rubber impeller type “NBSB”.

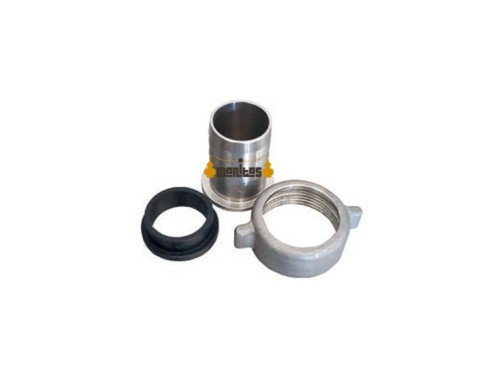

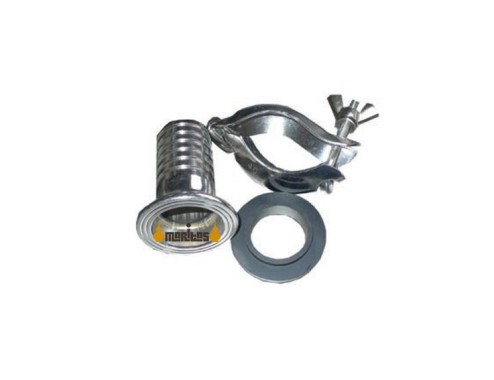

  • 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾ connections.
  • For hot liquids above 60°C request EPDM impeller.
  • Control panel installed on the motor.
  • Dimensions: 330x230x250 mm.
  • Weight: 10 kg.

Optional accessory:

• • Bypass (code 7045), price 90 euros.

In summary, the coaxial pump without inverter or carriage EURO 30 with kW conversionis a reliable and durable option.

Please note that this model is made to order and the manufacturing time is approximately 25-30 days.
