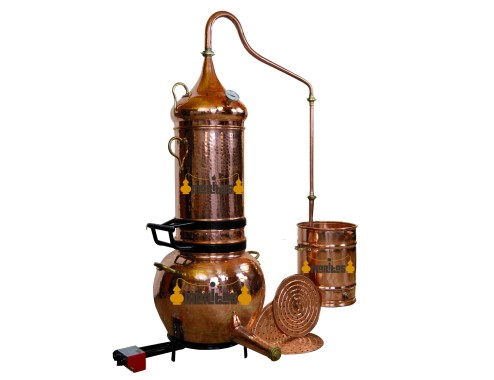

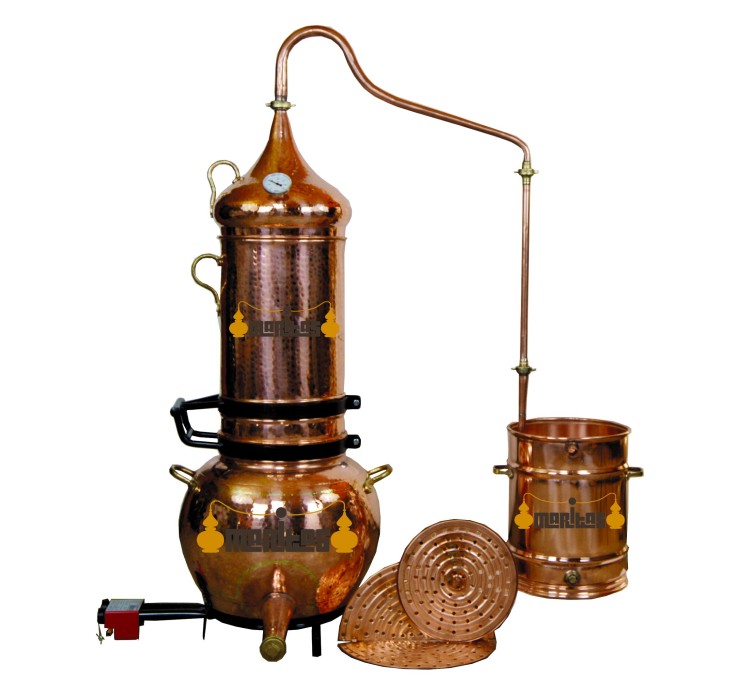

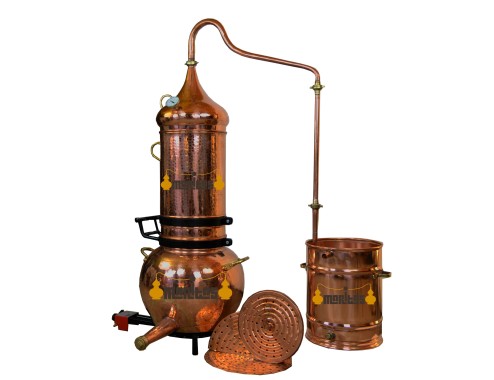

🛢️ 50 L COMPLETE Rotary-Column Still
✨ A complete system for aromatic and alcoholic distillation with gas heating
The 50 L COMPLETE Rotary-Column Still is designed for steam distillation of plants and flowers, as well as all types of alcoholic distillation. Its configuration is suitable for aromatic distillation to obtain hydrosols and essential oils, providing a complete setup for different distillation processes.
🌿 Its hinged rotary column makes emptying and reloading the plant material easy. Thanks to this system, it is possible to perform 3 to 5 column loads during a single distillation, allowing larger quantities of plants and flowers to be processed.
🔨 It is made from 1.5 mm copper sheet with a hammered finish, complemented by polished brass handles and nuts. Its welded joints provide greater strength and durability to the construction.
📋 Technical Specifications
🔹 Boiler capacity: 50 L
🔹 Column capacity: 1.5–2 kg of plants or flowers per load
🔹 Column hinge: makes emptying and reloading easy

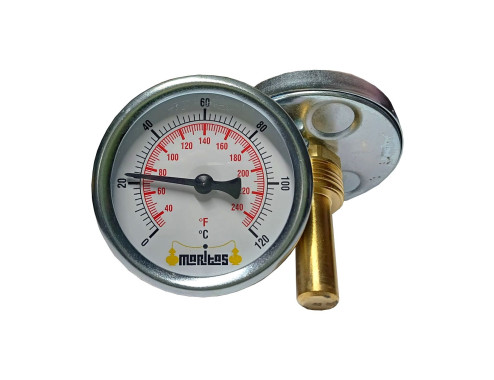

🔹 Thermometer: 0–120 °C

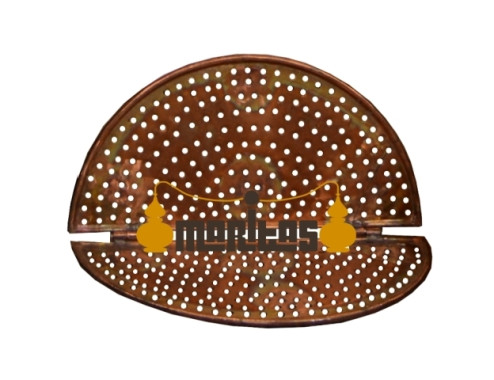

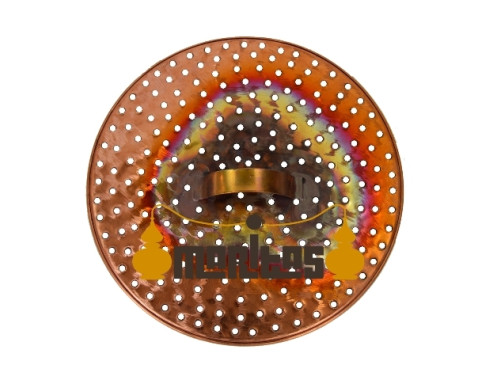

🔹 Column separation grate: included
🔹 Boiler separation grate: included

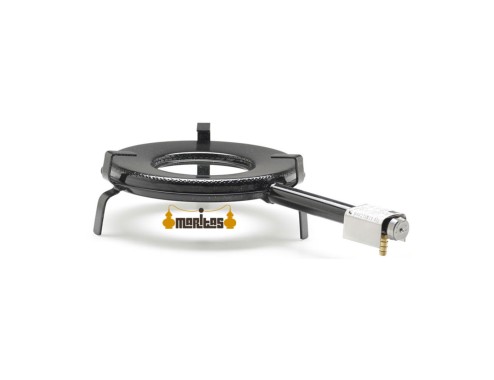

🔹 Gas grate: 30 cm, included
🔨 Material: 1.5 mm copper sheet
✨ Finish: hammered copper
🔩 Details: polished brass handles and nuts
⚒️ Construction: welded joints
🔄 Column loads: 3–5 per distillation
🔥 Heating system: 30 cm gas grate
🌸 Use: distillation of plants, flowers and alcohols
📊 Approximate Yield per Distillation
🌿 Plants and flowers: 1.5–10 kg, using 3 to 5 column loads
💧 Hydrosol: 35–40 L
🛢️ Essential oil: 40–60 ml of pure essential oil
🧪 Applications
🌸 Aromatic plant and flower distillation: steam distillation for obtaining hydrosols and essential oils.
🍹 Alcoholic distillation: suitable for all types of alcoholic distillation.
💧 Aromatic hydrosol production: approximately 35–40 L per distillation.
🛢️ Essential oil production: approximately 40–60 ml of pure essential oil per distillation.
💡 A complete configuration for processing larger quantities of botanical material, with a thermometer, separation grates and gas grate included in the same still.
