100L Rotary-Column Still

🛢️ 100 L Rotary-Column Still

✨ Large capacity for aromatic and alcoholic distillation with maximum versatility

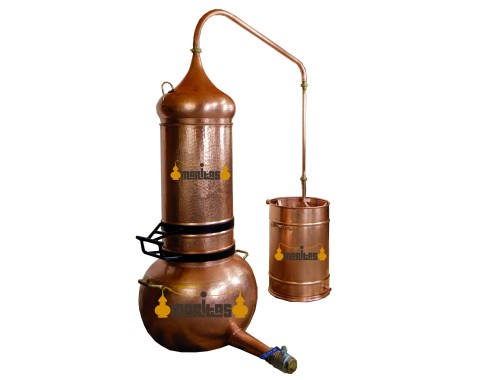

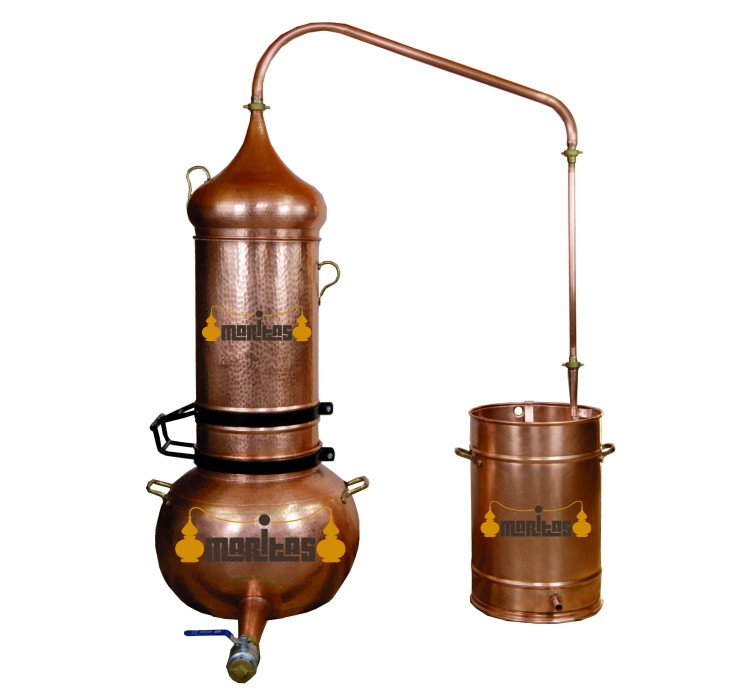

The 100 L Rotary-Column Still is designed for steam distillation of plants and flowers, while also being suitable for all types of alcoholic distillation. Its configuration is suitable for aromatic distillation to obtain hydrosols and essential oils, as well as for different alcohol distillation processes.

🌿 Its hinged rotary column makes emptying and reloading the plant material easy. Thanks to this system, it is possible to perform 3 to 5 column loads during a single distillation, allowing larger quantities of plants and flowers to be processed efficiently.

🔨 The still is made from 2 mm copper sheet with a hammered finish, featuring polished brass handles and nuts. Its welded joints provide greater strength and durability to the construction.

📋 Technical Specifications

🔹 Boiler capacity: 100 L

🔹 Column capacity: 5–7 kg of plants or flowers per load

🔹 Column hinge: makes emptying and reloading easy

🔨 Material: 2 mm copper sheet

✨ Finish: hammered copper

🔩 Details: polished brass handles and nuts

⚒️ Construction: welded joints

🔄 Column loads: 3–5 per distillation

🔥 Heating system: configuration for controlled gas heating

🌸 Use: distillation of plants, flowers and alcohols

📊 Approximate Yield per Distillation

🌿 Plants and flowers: 20–30 kg, using 3 to 5 column loads

💧 Hydrosol: 70–80 L

🛢️ Essential oil: 150–200 ml of pure essential oil

🧪 Applications

🌸 Aromatic plant and flower distillation: enables steam distillation for the production of hydrosols and essential oils.

🍹 Alcoholic distillation: suitable for all types of alcoholic distillation.

💧 Aromatic hydrosol production: approximately 70–80 L per distillation.

🛢️ Essential oil production: approximately 150–200 ml of pure essential oil per distillation.

⚙️ Design and Operation

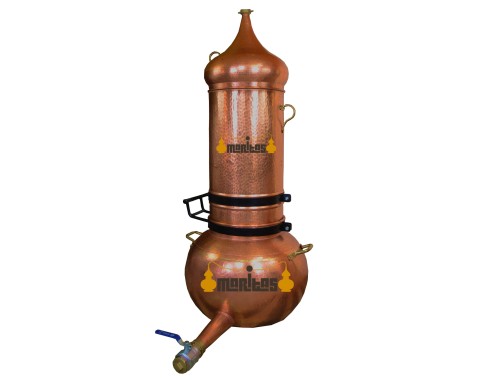

🔄 The hinged rotary column is designed to simplify emptying and reloading, allowing several loads to be carried out during the same distillation process.

🌿 With a capacity of 5–7 kg of plants or flowers per load, it can process between 20 and 30 kg of botanical material per distillation, depending on the number of loads performed.

🔥 Its configuration allows operation with a gas heating system designed for continuous and controlled distillation.

💡 A high-capacity solution for professionals and distillation projects requiring significant quantities of plants, flowers or alcohols to be processed in a single system.
