400L Rotary-Column Still

🛢️ 400 L Rotary-Column Still

✨ Professional configuration for high-capacity aromatic and alcoholic distillations with versatility and performance

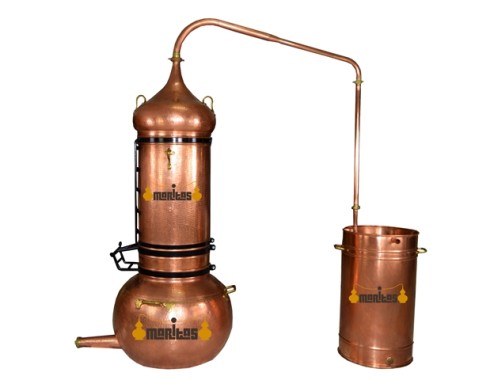

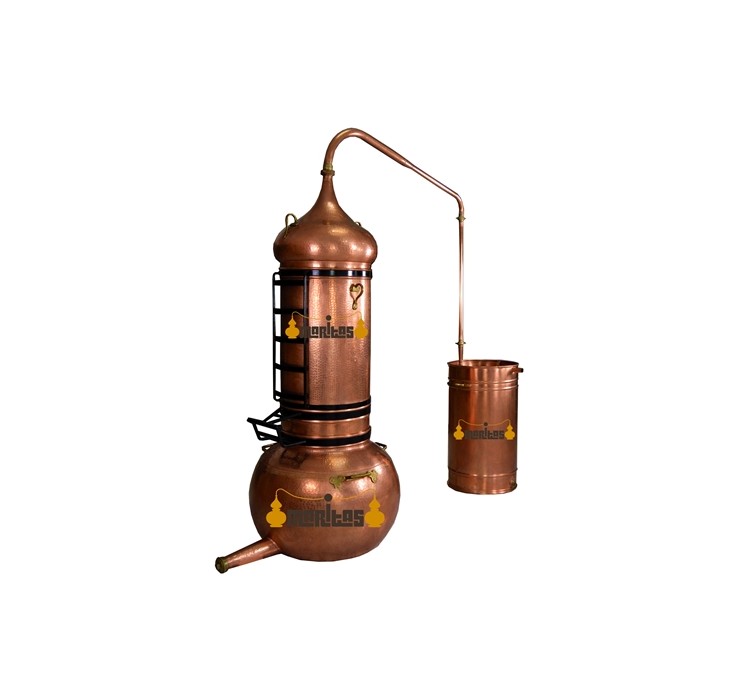

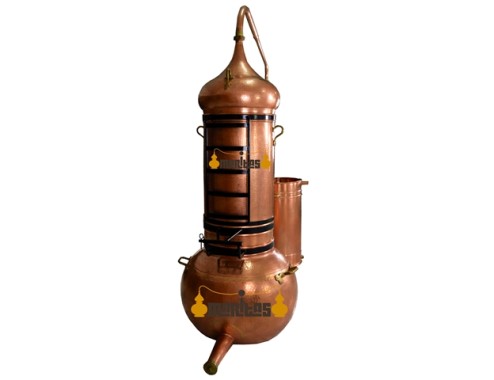

The 400 L Rotary-Column Still is designed for steam distillation of plants and flowers and is also suitable for all types of alcoholic distillation. Its configuration allows aromatic distillations to obtain hydrosols and essential oils, as well as different alcohol distillation processes.

🌿 Its hinged rotary column makes it easy to empty and reload the plant material. Thanks to this system, it is possible to perform 3 to 5 column loads during a single distillation, allowing large quantities of plants and flowers to be processed efficiently and conveniently.

🔨 The still is made from 2.5 mm copper sheet with a hammered finish, featuring polished brass handles and nuts. Its welded joints provide greater strength and durability.

📋 Technical Specifications

🔹 Boiler capacity: 400 L

🔹 Column capacity: 50–60 kg of plants or flowers per load

🔹 Column hinge: facilitates emptying and reloading

🔨 Material: 2.5 mm copper sheet

✨ Finish: hammered copper

🔩 Details: polished brass handles and nuts

⚒️ Construction: welded joints

🔄 Column loads: 3–5 per distillation

🔥 Heating system: configuration for continuous and controlled gas heating

🌸 Use: distillation of plants, flowers and alcohols

📊 Approximate Yield per Distillation

🌿 Plants and flowers: 180–300 kg, using 3 to 5 column loads

💧 Hydrosol: 350–375 L

🛢️ Essential oil: 1–1.2 L of pure essential oil

🧪 Applications

🌸 Distillation of aromatic plants and flowers: allows steam distillation to obtain hydrosols and essential oils.

🍹 Alcoholic distillation: suitable for all types of alcoholic distillation.

💧 Production of aromatic hydrosols: approximately 350–375 L per distillation.

🛢️ Essential oil production: allows approximately 1–1.2 L of pure essential oil to be obtained per distillation.

⚙️ Design and Operation

🔄 The hinged rotary column is designed to streamline emptying and reloading operations, allowing several loads to be carried out during the same distillation process.

🌿 With a capacity of 50–60 kg of plants or flowers per load, it can process between 180 and 300 kg of plant material per distillation, depending on the number of loads performed.

🔥 Its configuration is prepared to work with a gas heating system designed for continuous and controlled distillation.

⚙️ The system combines high loading capacity with a rotary column that allows several loads to be carried out during the same distillation process.

💡 A professional, high-capacity solution for those who need to process significant quantities of plants, flowers or alcohols in a single system, with high efficiency, versatility and ease of use.
