🛢️ 30 L Rotary-Column Still + Thermometer + Separation Grates

✨ Greater capacity, versatility and control for your distillation processes

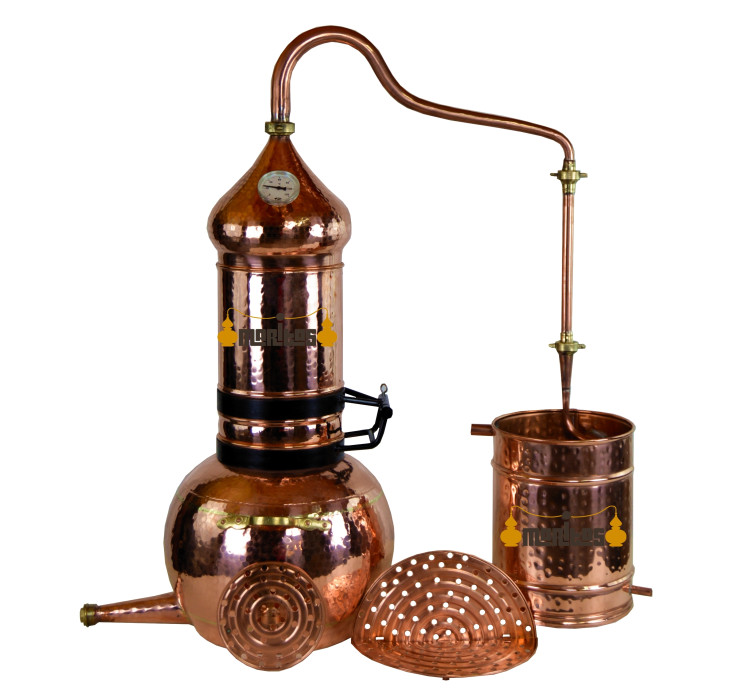

The 30 L Rotary-Column Still is primarily designed for steam distillation of plants and flowers, while also being suitable for all types of alcoholic distillation.

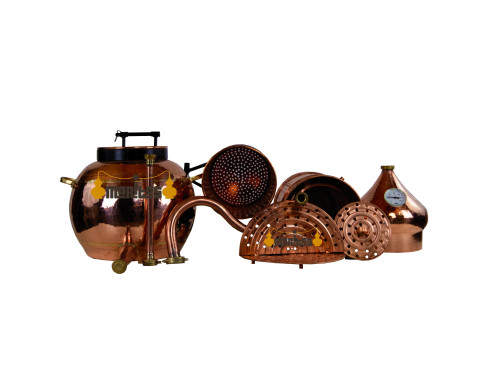

Its configuration combines a 30 L boiler with a hinged rotary column, making it easy to empty and reload plant material. This version also includes a thermometer and two separation grates to facilitate temperature control and the handling of different distillation processes.

🌿 Plant and Flower Distillation

This model allows you to carry out aromatic steam distillation of different plants and flowers to produce hydrosols and essential oils.

The column holds approximately 1000 g of plants or flowers per load. Once the plant material has released most of its essential oils, the column can be emptied and reloaded during the same distillation.

🔄 Thanks to its hinged rotary system, it is possible to carry out between 3 and 5 column loads per distillation, allowing approximately 1000–5000 g of plants or flowers to be processed in a single session.

💧 Hydrosol and Essential Oil Production

The system is designed to produce both hydrosols and essential oils through steam distillation.

💧 Approximate hydrosol output: 27–28 L per distillation.

🛢️ Approximate pure essential oil output: 35–40 ml per distillation.

Actual yields may vary depending on the type of plant or flower used, its essential oil content and the specific characteristics of each distillation.

🍹 Alcoholic Distillation

In addition to its use with plants and flowers, this still is also suitable for all types of alcoholic distillation, providing a versatile setup for working with different types of distillates using the same equipment.

🔨 Construction and Materials

The still is made from 1.5 mm thick copper sheet, with a hammered finish that gives it its distinctive traditional appearance.

🔶 Material: copper

📏 Thickness: 1.5 mm

🔨 Finish: hammered copper

✨ Handles: polished brass

✨ Nuts: polished brass

⚒️ Construction: welded joints for greater strength and durability

⚙️ Rotary-Column System

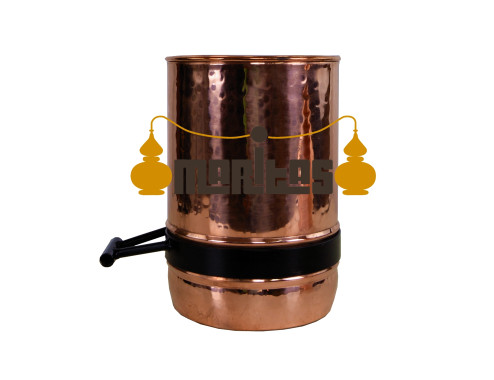

One of the main features of this model is its hinged rotary column.

🔄 The hinge allows the column to be opened and rotated, making it easy to empty and reload the plant material between loads.

This configuration allows several loads to be carried out during the same distillation, making better use of the still's working capacity and simplifying the production of hydrosols and essential oils.

🌡️ Temperature Control and Separation Grates

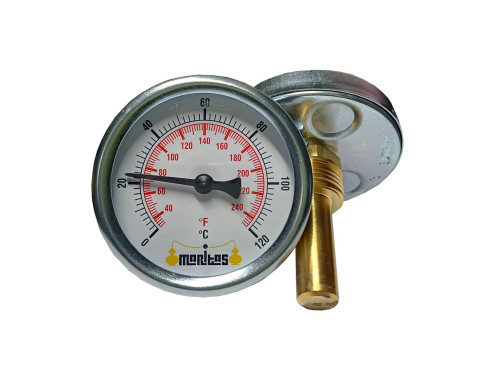

The equipment includes a 0–120 °C thermometer for monitoring the temperature during the distillation process.

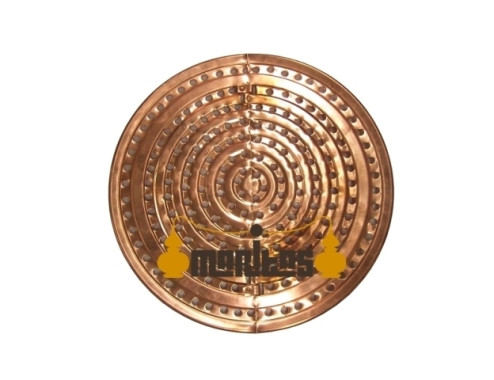

🔥 The column separation grate helps keep the plant material separated while allowing steam to pass through towards the condenser.

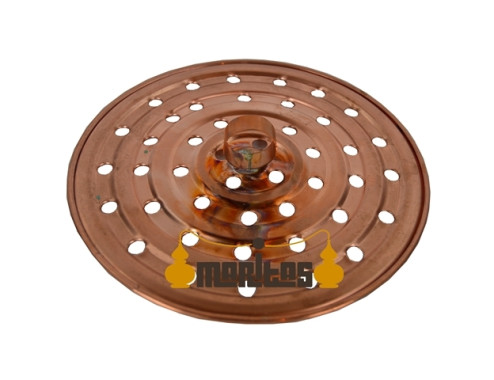

🧱 The boiler separation grate keeps solid material separated from the bottom of the boiler during the corresponding distillation processes.

📋 Technical Data

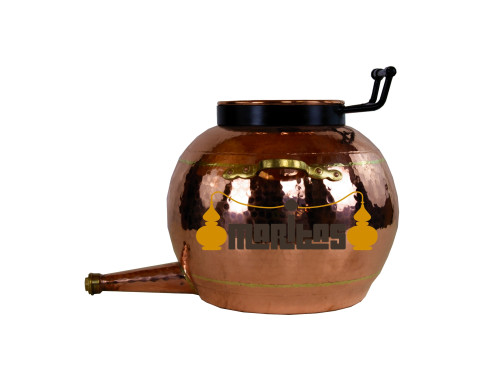

🔹 Boiler capacity: 30 L

🔹 Column capacity: 1000 g of plants or flowers per load

🔄 Column system: rotary with hinge

🔨 Material: 1.5 mm copper

🔨 Finish: hammered copper

✨ Handles and nuts: polished brass

⚒️ Joints: welded

🌿 Plant or flower capacity: 1000–5000 g per distillation

🔄 Column loads: 3–5 per distillation

🌡️ Thermometer: 0–120 °C, included

🔥 Column separation grate: included

🧱 Boiler separation grate: included

💧 Hydrosol output: 27–28 L per distillation

🛢️ Pure essential oil output: 35–40 ml per distillation

🧪 Applications

🌸 Steam distillation of aromatic plants and flowers for producing hydrosols and essential oils.

🍹 Alcoholic distillation for different types of distillates.

💧 Hydrosol production from plants and flowers.

🛢️ Essential oil production through aromatic distillation.

⭐ An excellent choice for anyone looking for a larger-capacity, versatile, robust and easy-to-use still, with a rotary column and practical accessories that make temperature control and plant handling easier throughout different distillation processes.
