100L COMPLETE Rotary-Column Still

🛢️ 100 L COMPLETE Rotary-Column Still

✨ Professional complete configuration for aromatic and alcoholic distillation with gas heating

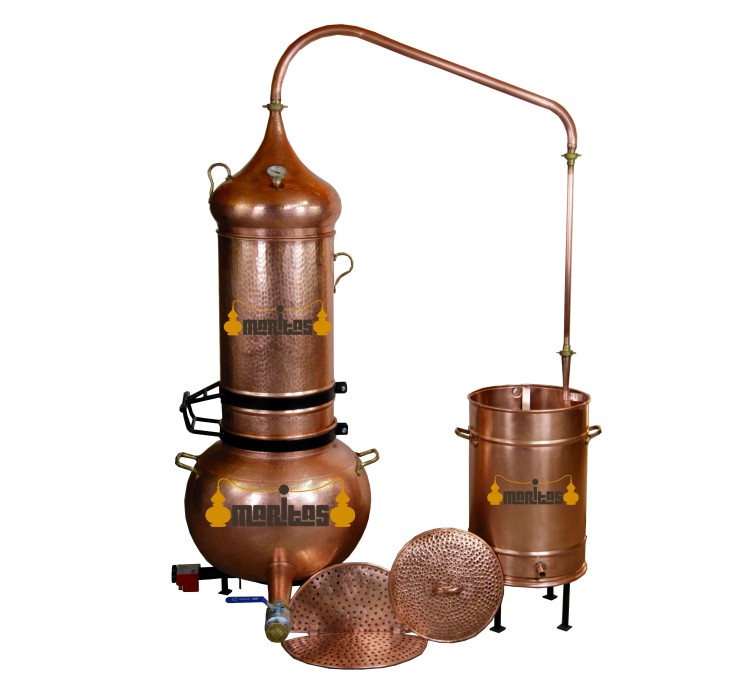

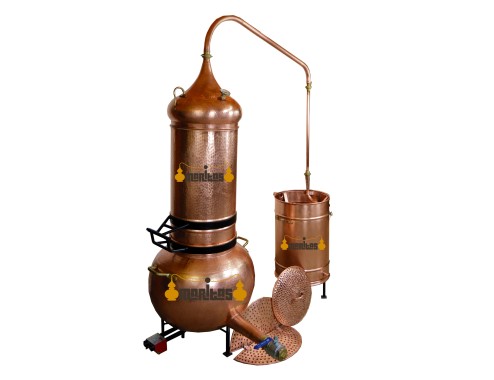

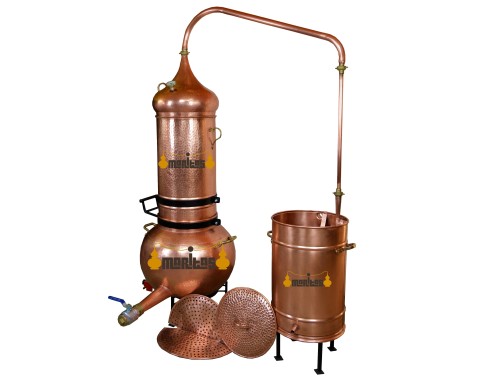

The 100 L COMPLETE Rotary-Column Still is designed for steam distillation of plants and flowers, as well as all types of alcoholic distillation. Its configuration is suitable for aromatic distillation to obtain hydrosols and essential oils, as well as for different alcohol distillation processes.

🌿 Its hinged rotary column makes emptying and reloading the botanical material easy. Thanks to this system, it is possible to perform 3 to 5 column loads during a single distillation, allowing larger quantities of plants and flowers to be processed efficiently.

🔨 The still is made from 2 mm copper sheet with a hammered finish, complemented by polished brass handles and nuts. Its welded joints provide greater strength and durability to the construction.

📋 Technical Specifications

🔹 Boiler capacity: 100 L

🔹 Column capacity: 5–7 kg of plants or flowers per load

🔹 Column hinge: makes emptying and reloading easy

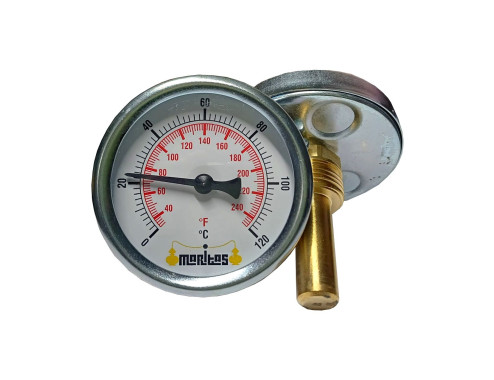

🔹 Thermometer: 0–120 °C

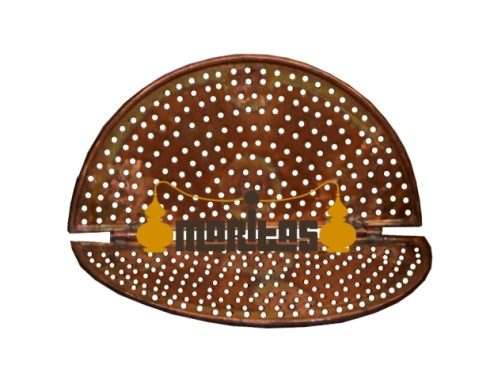

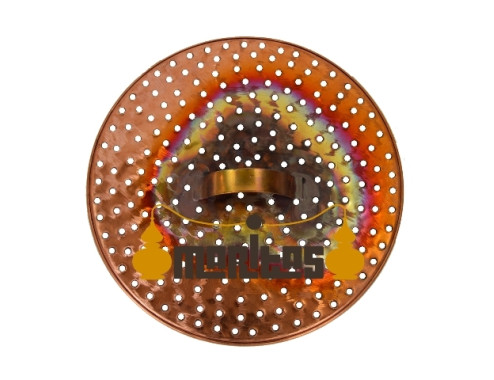

🔹 Column separation grate: included

🔹 Boiler separation grate: included

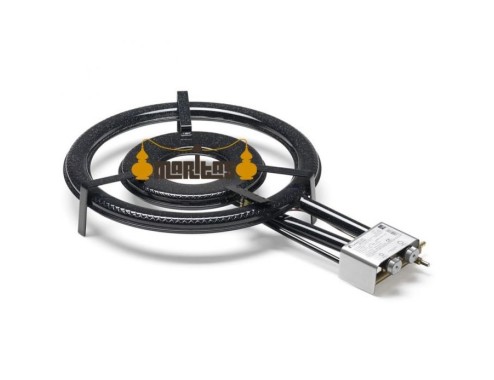

🔹 Gas grate: 46 cm, included

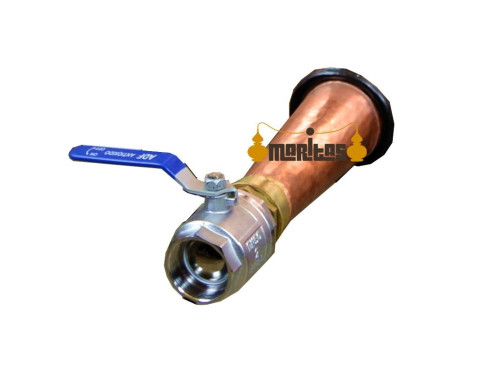

🔹 Boiler liquid outlet: with 2" stainless steel or brass valve

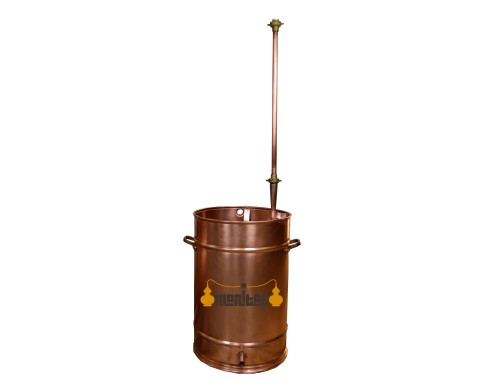

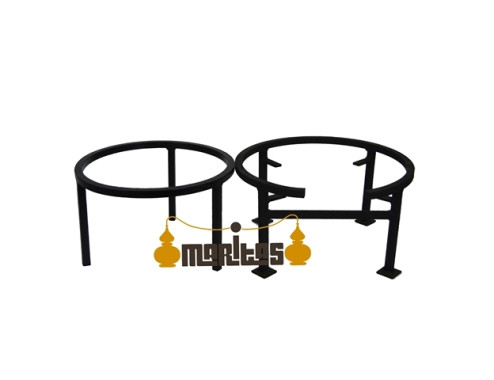

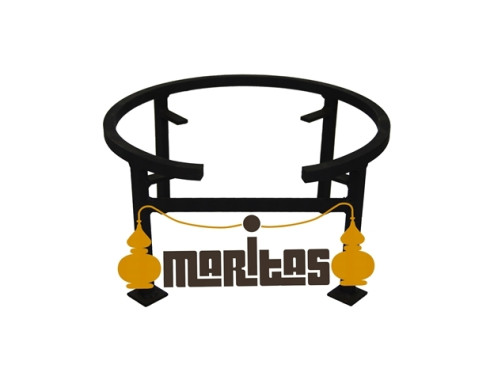

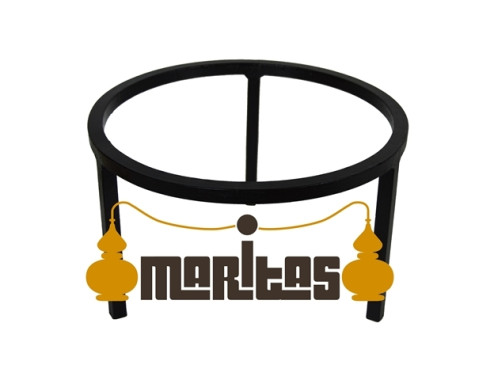

🔹 Supports: iron supports on the boiler and cooler

🔨 Material: 2 mm copper sheet

✨ Finish: hammered copper

🔩 Details: polished brass handles and nuts

⚒️ Construction: welded joints

🔄 Column loads: 3–5 per distillation

🔥 Heating system: 46 cm gas grate

🌸 Use: distillation of plants, flowers and alcohols

📊 Approximate Yield per Distillation

🌿 Plants and flowers: 20–30 kg, using 3 to 5 column loads

💧 Hydrosol: 70–80 L

🛢️ Essential oil: 150–200 ml of pure essential oil

🧪 Applications

🌸 Aromatic plant and flower distillation: steam distillation for obtaining hydrosols and essential oils.

🍹 Alcoholic distillation: suitable for all types of alcoholic distillation.

💧 Aromatic hydrosol production: approximately 70–80 L per distillation.

🛢️ Essential oil production: approximately 150–200 ml of pure essential oil per distillation.

⚙️ Design and Operation

🔄 The hinged rotary column is designed to simplify emptying and reloading, allowing several loads to be carried out during the same distillation process.

🌿 With a capacity of 5–7 kg of plants or flowers per load, it can process between 20 and 30 kg of botanical material per distillation, using 3 to 5 column loads.

🔥 The complete configuration includes a 46 cm gas grate for operation with a gas heating system designed for continuous and controlled distillation.

🚰 The boiler liquid outlet with a 2" valve, available in stainless steel or brass, facilitates handling of the boiler liquids. The iron supports on the boiler and cooler complete the equipment configuration.

💡 A high-capacity complete solution for professionals and distillation projects requiring the processing of large quantities of plants, flowers or alcohols with a gas-ready system.
