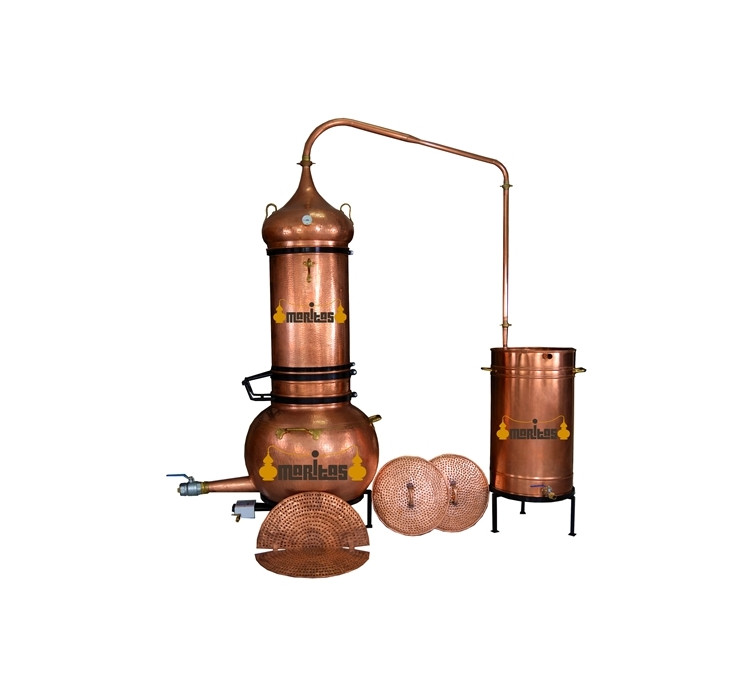

200L Rotary-Column Still COMPLETE

🛢️ 200 L Rotary-Column Still COMPLETE

✨ Complete professional configuration for aromatic and alcoholic distillation with maximum versatility and performance

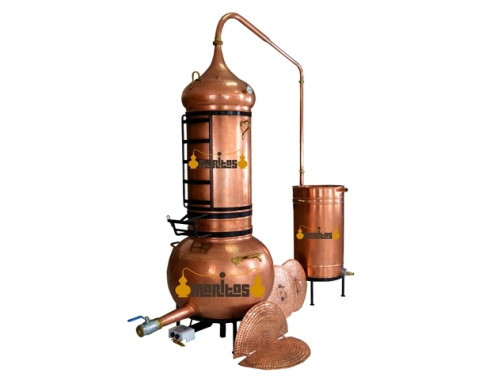

The 200 L Rotary-Column Still COMPLETE is designed for steam distillation of plants and flowers, while also being suitable for all types of alcoholic distillation. Its configuration allows aromatic distillation to obtain hydrosols and essential oils, as well as different alcohol distillation processes.

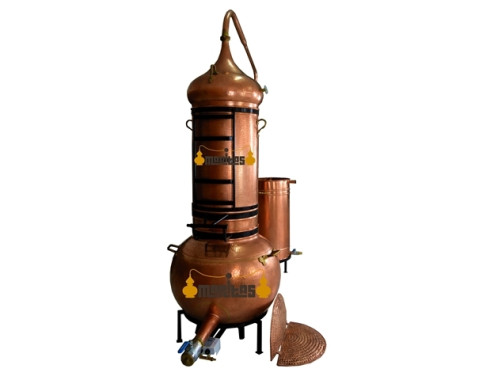

🌿 Its hinged rotary column makes emptying and reloading the plant material easy. Thanks to this system, it is possible to perform 3 to 5 column loads during a single distillation, allowing larger quantities of plants and flowers to be processed efficiently.

🔨 The still is made from 2 mm copper sheet with a hammered finish, featuring polished brass handles and nuts. Its welded joints provide greater strength and durability to the construction.

📋 Technical Specifications

🔹 Boiler capacity: 200 L

🔹 Column capacity: 15–20 kg of plants or flowers per load

🔹 Column hinge: makes emptying and reloading easy

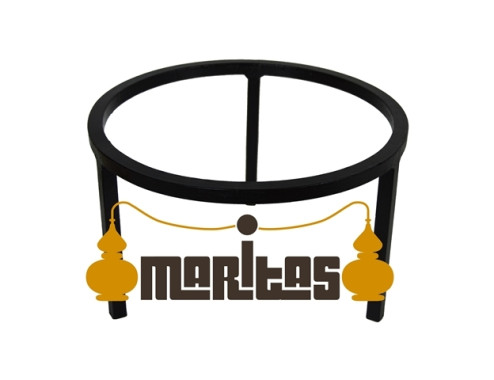

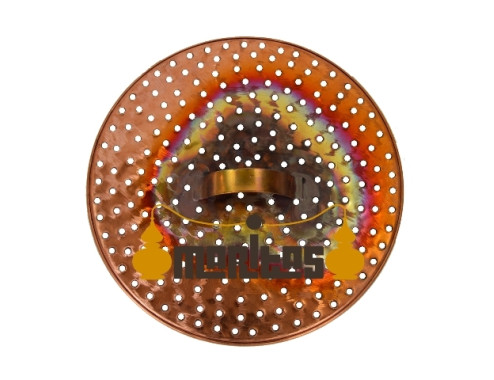

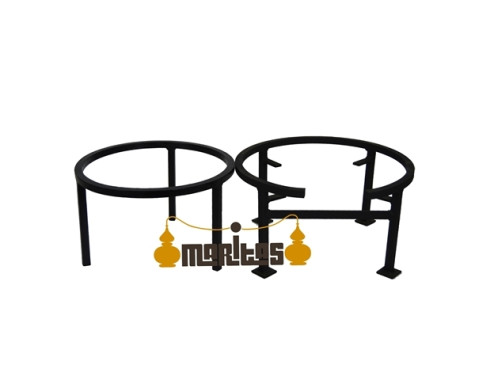

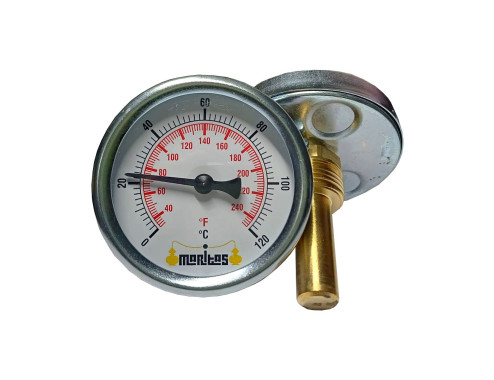

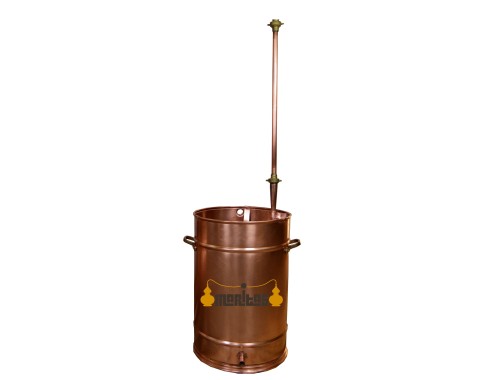

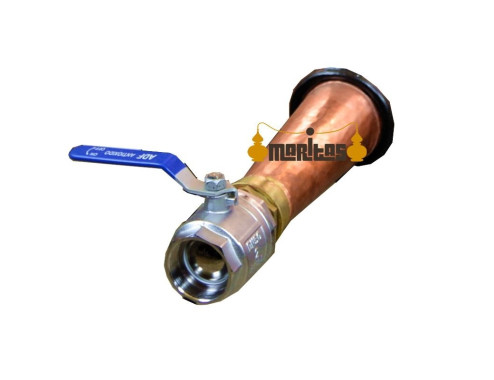

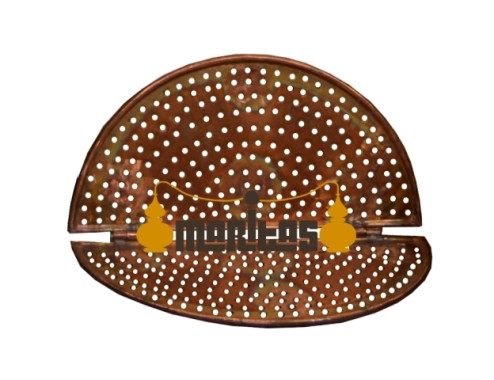

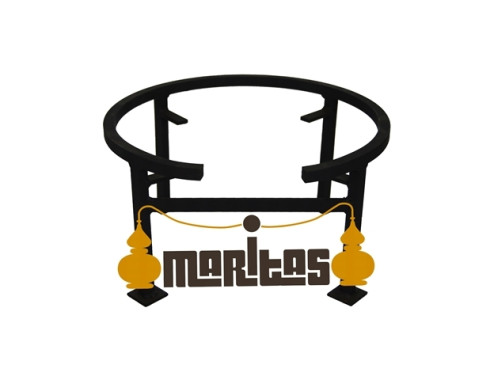

🔹 Includes: thermometer (0–120 ºC) + column separation grate + boiler separation grate + 60 cm gas burner grate + boiler liquid outlet with 2.5" stainless steel or brass valve + iron supports for the boiler and cooler

🔨 Material: 2 mm copper sheet

✨ Finish: hammered copper

🔩 Details: polished brass handles and nuts

⚒️ Construction: welded joints

🔄 Column loads: 3–5 per distillation

🔥 Heating system: complete configuration for continuous and controlled gas heating

🌸 Use: distillation of plants, flowers and alcohols

📊 Approximate Yield per Distillation

🌿 Plants and flowers: 60–100 kg, using 3 to 5 column loads

💧 Hydrosol: 150–175 L

🛢️ Essential oil: 500–600 ml of pure essential oil

🧪 Applications

🌸 Aromatic plant and flower distillation: enables steam distillation for the production of hydrosols and essential oils.

🍹 Alcoholic distillation: suitable for all types of alcoholic distillation.

💧 Aromatic hydrosol production: approximately 150–175 L per distillation.

🛢️ Essential oil production: approximately 500–600 ml of pure essential oil per distillation.

⚙️ Design and Operation

🔄 The hinged rotary column is designed to simplify emptying and reloading, allowing several loads to be carried out during the same distillation process.

🌿 With a capacity of 15–20 kg of plants or flowers per load, it can process between 60 and 100 kg of botanical material per distillation, depending on the number of loads performed.

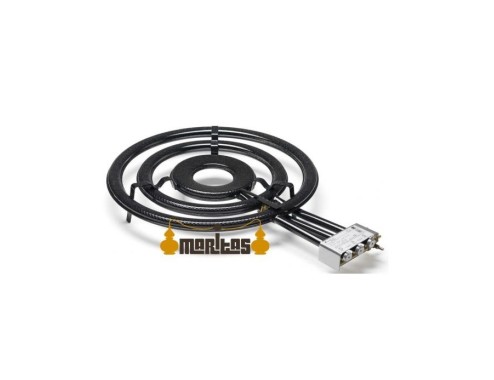

🔥 Its complete configuration includes a 60 cm gas burner grate, allowing operation with a gas heating system designed for continuous and controlled distillation.

⚙️ The complete set includes the necessary components to facilitate the distillation process, such as the 0–120 ºC thermometer, column and boiler separation grates, the 2.5" boiler liquid outlet with valve, and iron supports for the boiler and cooler.

💡 A complete, high-capacity professional solution for those who need to process significant quantities of plants, flowers or alcohols in a single system, with maximum efficiency, versatility and ease of operation.
