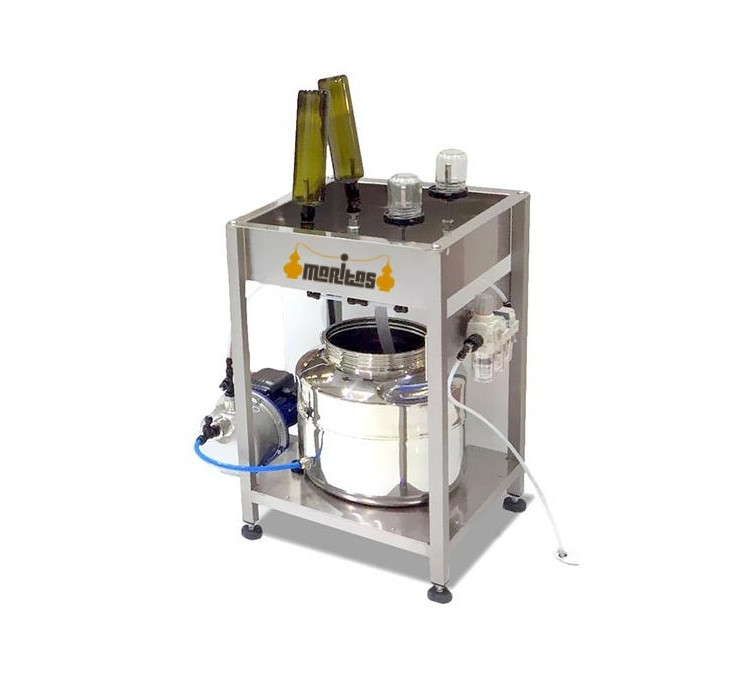

Semiautomatic blower-rinser with 4 injectors with pump 110V-60Hz

We present the semiautomatic blower-rinser with 4 injectors and 110V-60Hz pump, ideal for efficient internal cleaning of bottles.

This machine is made entirely of stainless steel and has 2 rinse nozzles and 2 blow nozzles.

The blower-rinser is equipped with an air unit composed of 3 essential elements.

- Complete pressure regulator including a 5 μm filter unit: allows you to adjust the pressure of the air sent to the injectors. It is recommended to set it between 4-6 atm.

- Filter element (grinder) with a porosity of 0.3 μm: which protects the regulator from any trace of oil or condensate coming from the compressor.

- Filter element (extra fine) through a 0.01 μm cartridge.

The machine also includes a tray to fill with water and, optionally, a disinfectant product.

This solution will be pumped and sent under pressure to the bottles through the nozzles.

Technical characteristics:

- The structure and tank of the machine are made of AISI 304 stainless steel

- Dimensions: 490 x 490 x 900 mm

- It has 2 rinse nozzles and 2 blow nozzles, all of them made of stainless steel

- Power: 110V-60Hz single-phase

In summary, the semi-automatic blower-rinser with 4 injectors and 110V-60Hz pump is a comprehensive solution for rinsing and disinfecting bottles before being filled.

With its advanced design and functionality, it guarantees efficient and quality cleaning.
